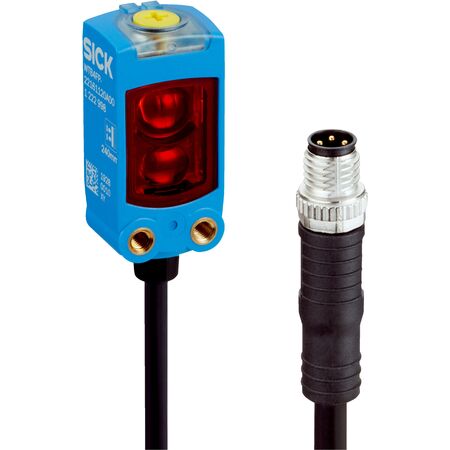

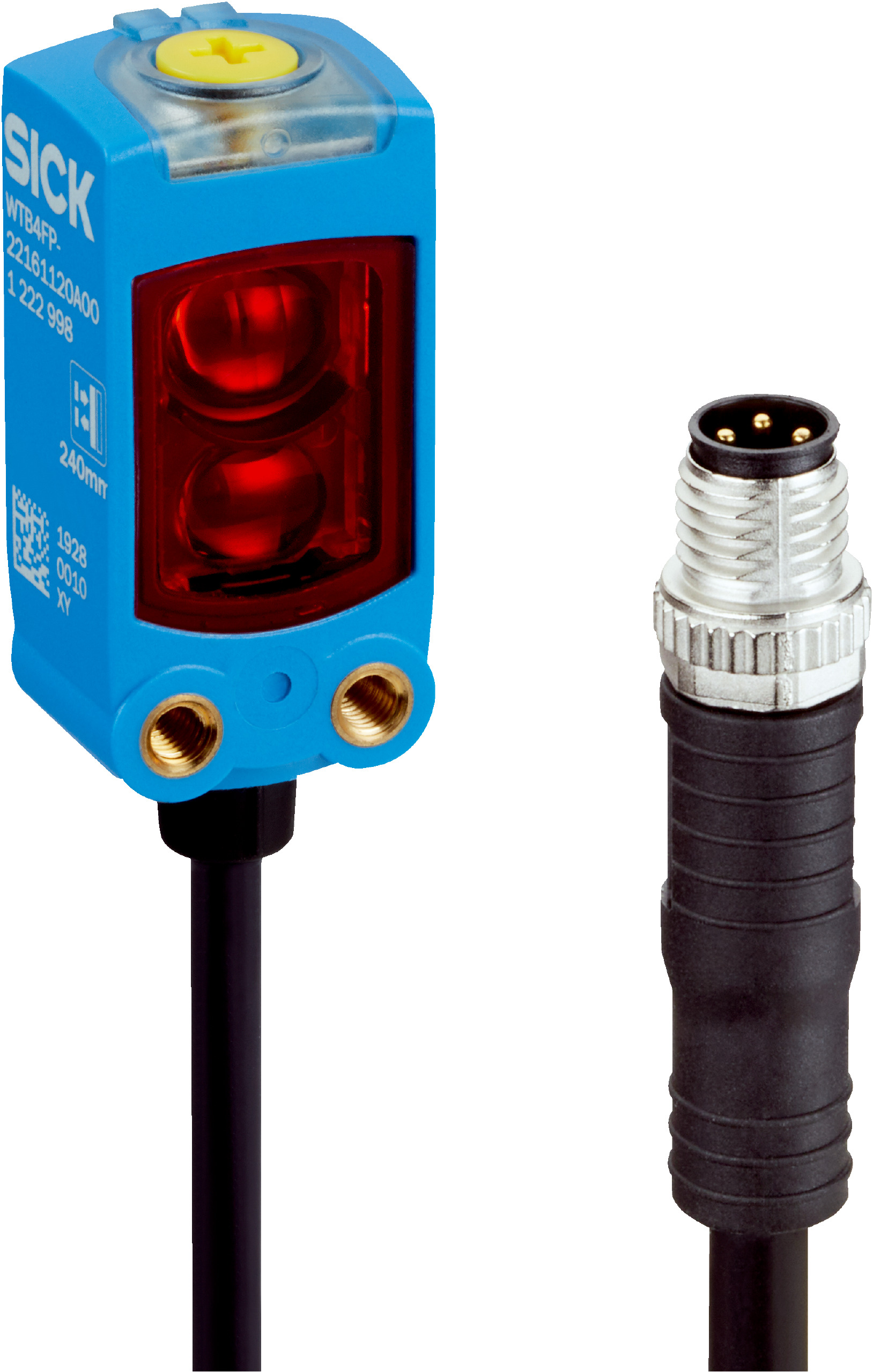

Photoelectric Proximity Sensor WTB4FA-97311120ZZZ | Adjustable Sensing Range 7-150mm | IP66/IP67 Rated | by SICK
The WTB4FA-97311120ZZZ Photoelectric Proximity Sensor is designed for precise object detection in industrial automation. With an adjustable sensing range from 7 mm to 150 mm and advanced MultiPulse technology, it ensures reliable performance in harsh environments. Ideal for manufacturing process control and robotics, this sensor features a visible red light PinPoint LED for easy alignment and a robust IP66/IP67 enclosure for durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range: 7 mm to 150 mm, adjustable switching threshold 15 mm to 150 mm
- Light source: PinPoint LED, visible red light, wavelength 635 nm
- Light spot size: 1.4 mm x 19 mm at 50 mm distance
- Response time: ≤ 0.1 s, switching frequency 10 Hz
- Output type: Push-pull PNP/NPN, max output current ≤ 100 mA
- Supply voltage: 10 V DC to 30 V DC
- Protection class: III
- Enclosure rating: IP66 and IP67
- Operating temperature: -40 °C to +60 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1000 Hz, amplitude 1 mm
- Dimensions (H x L x W): 40mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- MultiPulse and LineSpot technology for precise detection
- Adjustable switching threshold from 15 mm to 150 mm
- Visible red light PinPoint LED with line-shaped light spot
- BluePilot for easy sensing range adjustment
- Self-monitoring MultiPulse sensor technology
- High shock and vibration resistance
- IP66 and IP67 rated enclosure for harsh environments
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Robotics and safety monitoring
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient operation with low current consumption
- Robust design minimizes environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTB4FA-97311120ZZZ Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
