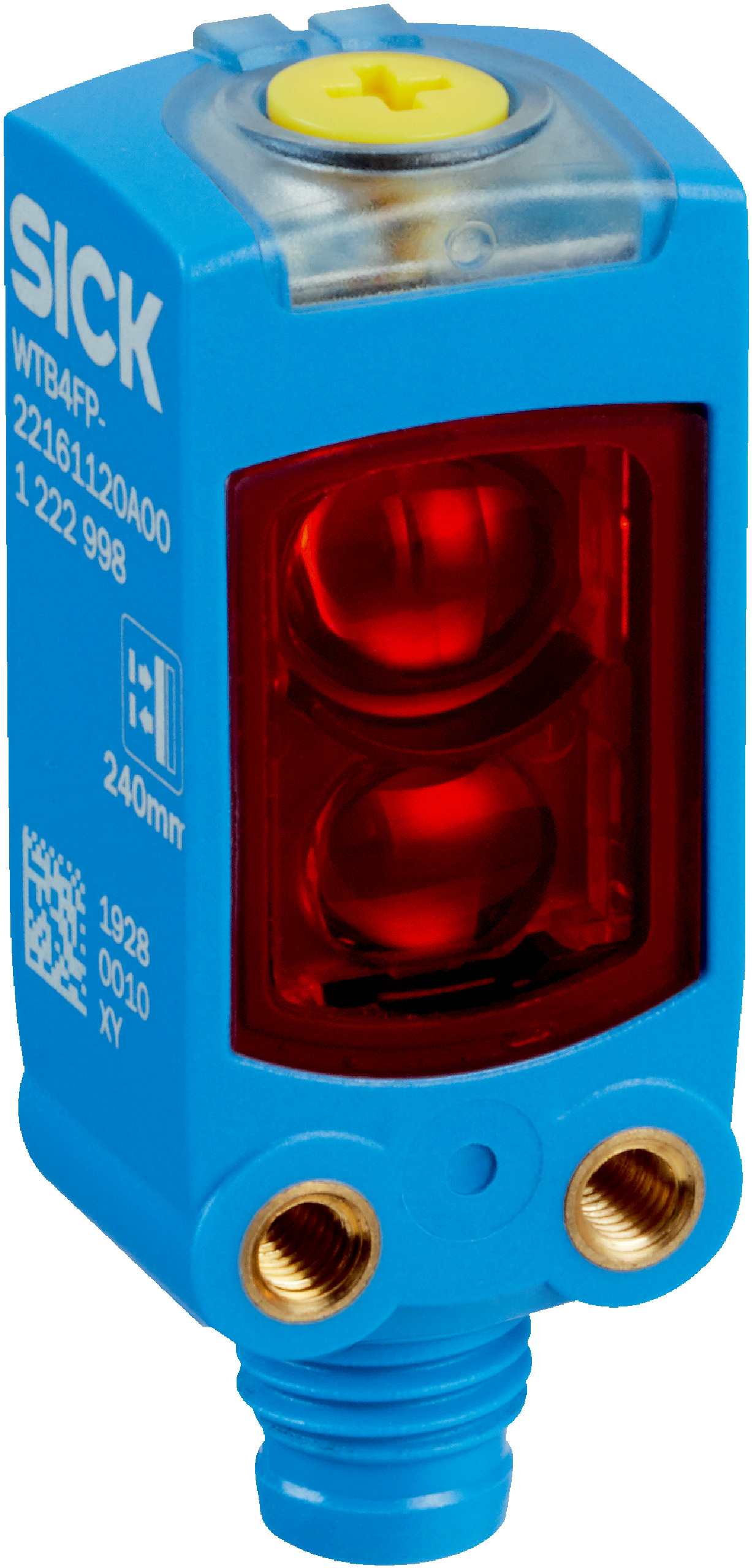

Photoelectric Proximity Sensor WTB4FP-21A11120ZZZ | Background Suppression | Adjustable Sensing Range | IP66/IP67 Rated | by SICK
The WTB4FP-21A11120ZZZ Photoelectric Proximity Sensor is designed for precise object detection in industrial automation. With a sensing range of 4 mm to 220 mm and an adjustable switching threshold, it ensures reliable performance in various applications. Featuring a robust IP66/IP67 rated housing and a PinPoint LED light source, this sensor is perfect for manufacturing process control and robotics, providing high switching frequency and fast response times.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 4 mm to 220 mm, adjustable switching threshold 15 mm to 220 mm
- Light source: PinPoint LED, visible red light, wavelength 635 nm
- Smallest detectable object: 0.2 mm at 130 mm distance
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 25 mA without load at 24 V
- Output type: 1 PNP digital output, light switching mode
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs, switching frequency up to 1,000 Hz
- Protection class: III
- Housing material: Plastic VISTAL®, front screen PMMA
- Connection: M8, 3-pin connector
- Enclosure rating: IP66 and IP67
- Operating temperature: -40 °C to +60 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1,000 Hz, amplitude 1 mm
- EMC compliance: EN 60947-5-2
- Circuit protection: Reverse polarity, overcurrent, short-circuit protected
- Dimensions (H x L x W): 40mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable switching threshold from 15 mm to 220 mm
- Sensing range from 4 mm to 220 mm, recommended 40 mm to 140 mm
- PinPoint LED light source with visible red light at 635 nm wavelength
- Smallest detectable object size approximately 0.2 mm
- BluePilot for easy sensing range adjustment
- LED indicators for sensing range, power, and object detection status
- High switching frequency up to 1,000 Hz with fast response time ≤ 500 µs
- Robust plastic VISTAL® housing with IP66/IP67 protection rating
- Wide ambient operating temperature range from -40 °C to +60 °C
- Resistance to cleaning agents certified by ECOLAB
- Shock resistance 30 g and vibration resistance 10 Hz to 1,000 Hz
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Robotics and safety systems requiring precise sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient operation with low current consumption (≤ 25 mA)
- Durable construction minimizes environmental impact through extended product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WTB4FP-21A11120ZZZ Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
