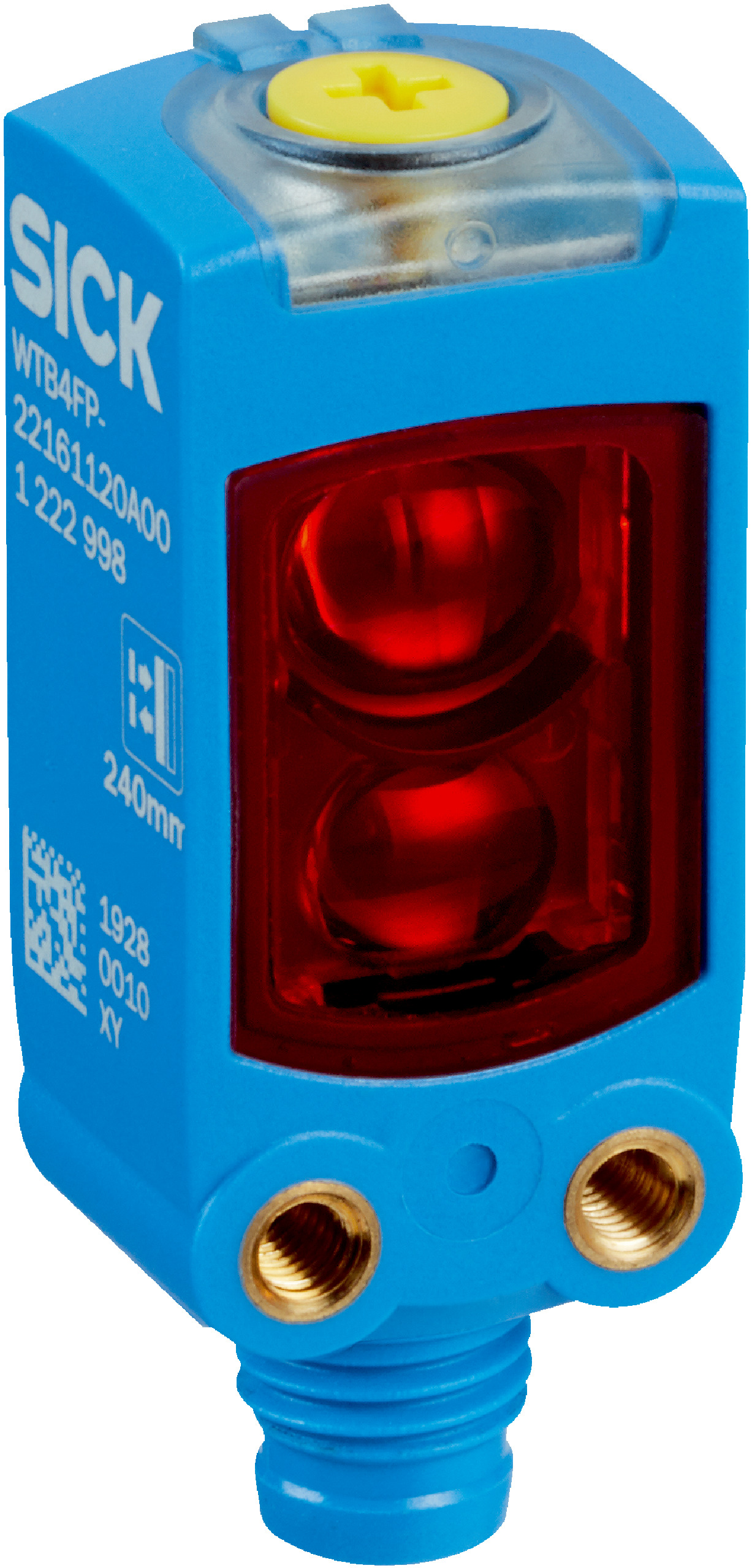

Photoelectric Proximity Sensor WTB4FP-21A12120ZZZ | Background Suppression | Adjustable Sensing Range | IP66 & IP67 Rated | by SICK
The WTB4FP-21A12120ZZZ Photoelectric Proximity Sensor is designed for precise object detection in industrial automation. With a sensing range adjustable from 15 mm to 220 mm and a fast response time of ≤ 500 µs, it ensures reliable performance. Featuring a robust IP66 and IP67 rated housing, this sensor is perfect for manufacturing process control and packaging systems, providing durability and efficiency in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 4 mm to 220 mm, adjustable switching threshold 15 mm to 220 mm
- Light source: PinPoint LED, visible red light, wavelength 635 nm
- Light spot size: Ø 4.2 mm at 130 mm distance
- Response time: ≤ 500 µs, switching frequency up to 1000 Hz
- Output: 1 PNP digital output, dark switching mode, max output current ≤ 100 mA
- Supply voltage: 10 V DC to 30 V DC with ≤ 5 V ripple
- Protection class: III, circuit protected against reverse polarity, overcurrent, and short-circuit
- Housing: Plastic VISTAL®, flat design with M8 3-pin connector
- Enclosure rating: IP66 and IP67
- Operating temperature: -40 °C to +60 °C
- Weight: Approx. 30 g
- Dimensions (H x L x W): 40mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable switching threshold from 15 mm to 220 mm
- Visible red PinPoint LED light source with 635 nm wavelength
- Smallest detectable object size of 0.2 mm at 130 mm distance
- BluePilot Teach-Turn adjustment for easy sensing range setting
- LED indicators for sensing range, power, and object detection status
- High switching frequency of 1000 Hz and fast response time ≤ 500 µs
- Robust plastic VISTAL® housing with IP66 and IP67 protection ratings
- Wide ambient operating temperature range from -40 °C to +60 °C
- Resistance to cleaning agents certified by ECOLAB
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Robotics and safety systems requiring precise sensing
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient operation with low current consumption (≤ 25 mA)
- Durable construction minimizes environmental impact through extended product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB4FP-21A12120ZZZ Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
