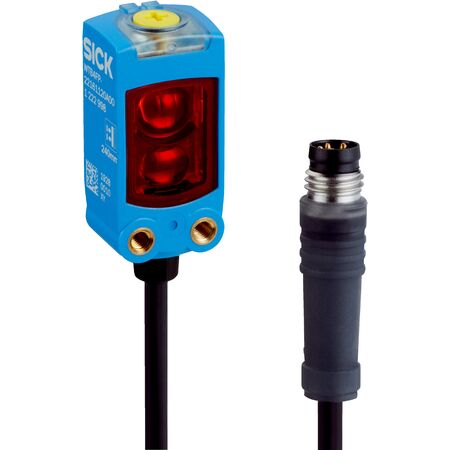

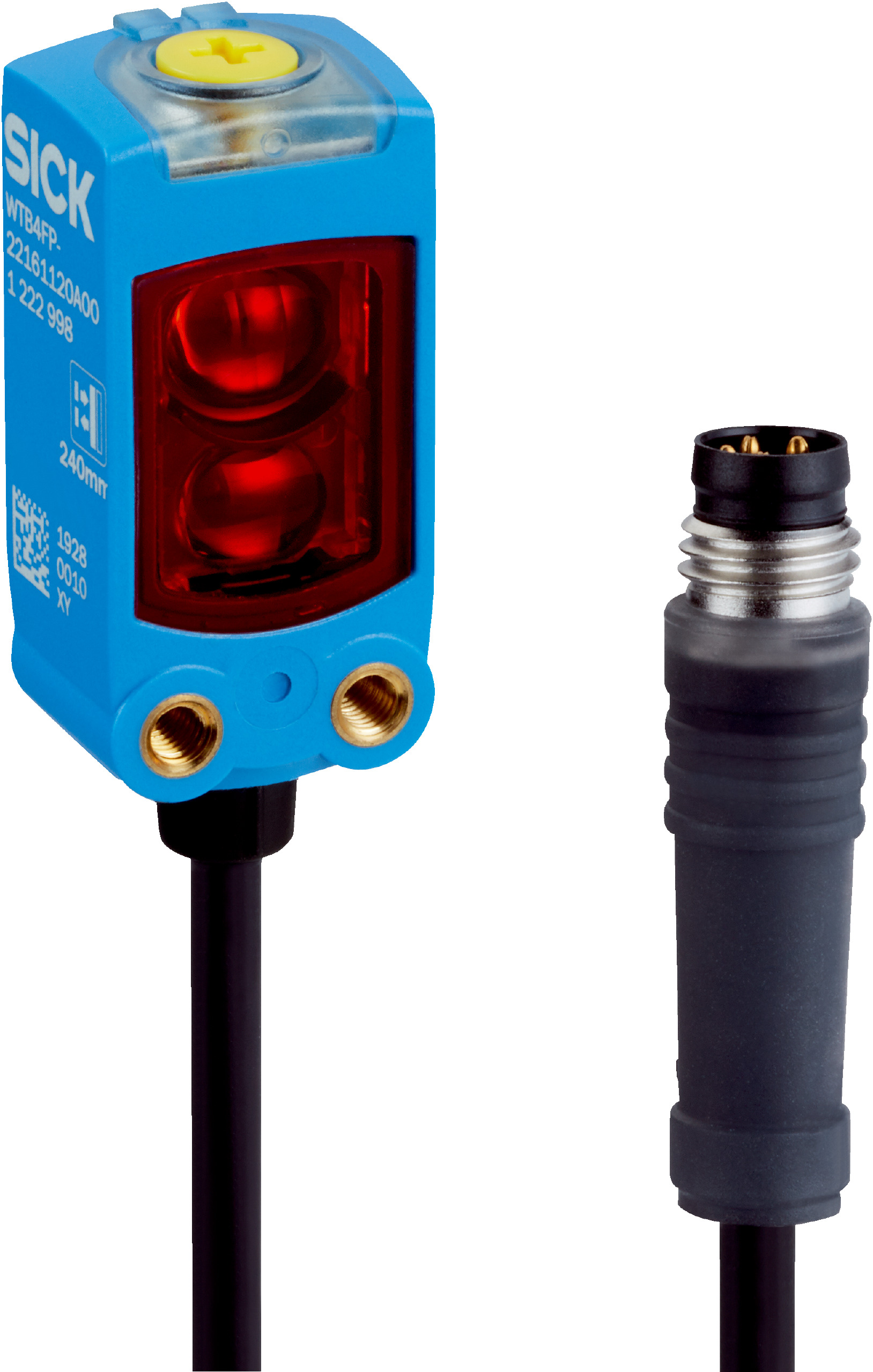

Photoelectric Proximity Sensor WTB4FP-31311120ZZZ | Background Suppression | IP66 & IP67 Rated | by SICK
The WTB4FP-31311120ZZZ photoelectric proximity sensor is designed for precise object detection in industrial automation. With a sensing range of 4 mm to 220 mm and adjustable switching thresholds, it ensures high performance in various applications. Featuring a visible red light PinPoint LED and robust IP66/IP67 enclosure, this sensor is perfect for manufacturing process control and packaging systems, providing reliable operation even in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 4 mm to 220 mm, adjustable switching threshold 15 mm to 220 mm
- Recommended sensing range for best performance: 40 mm to 140 mm
- Light source: PinPoint LED, visible red light, wavelength 635 nm
- Light spot size: Ø 4.2 mm at 130 mm distance
- Response time: ≤ 500 µs, repeatability 150 µs
- Switching frequency: 1,000 Hz
- Output type: Push-pull PNP/NPN, max output current 100 mA
- Supply voltage: 10 V DC to 30 V DC
- Protection class: III
- Enclosure rating: IP66 and IP67
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1,000 Hz, amplitude 1 mm
- Cable with M8 connector, 3-pin, 110 mm length
- Dimensions (H x L x W): 40mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable switching threshold from 15 mm to 220 mm
- Visible red light PinPoint LED with 635 nm wavelength
- High repeatability with 150 µs response time
- IP66 and IP67 rated for harsh environments
- Operating temperature range from -40 °C to +60 °C
- BluePilot sensing range indicator and multi-color LED status indicators
- Short-circuit, overcurrent, and reverse polarity protected outputs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Robotics and safety monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- Robust design reduces environmental impact by lowering maintenance needs
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTB4FP-31311120ZZZ photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
