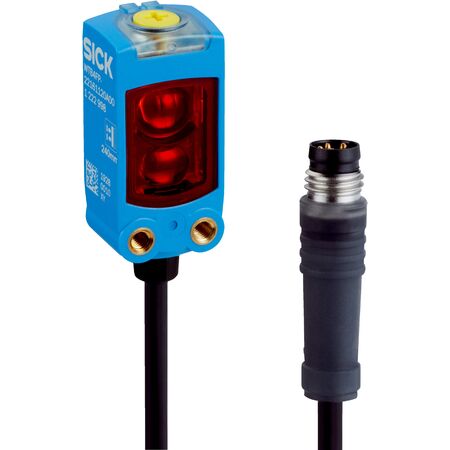

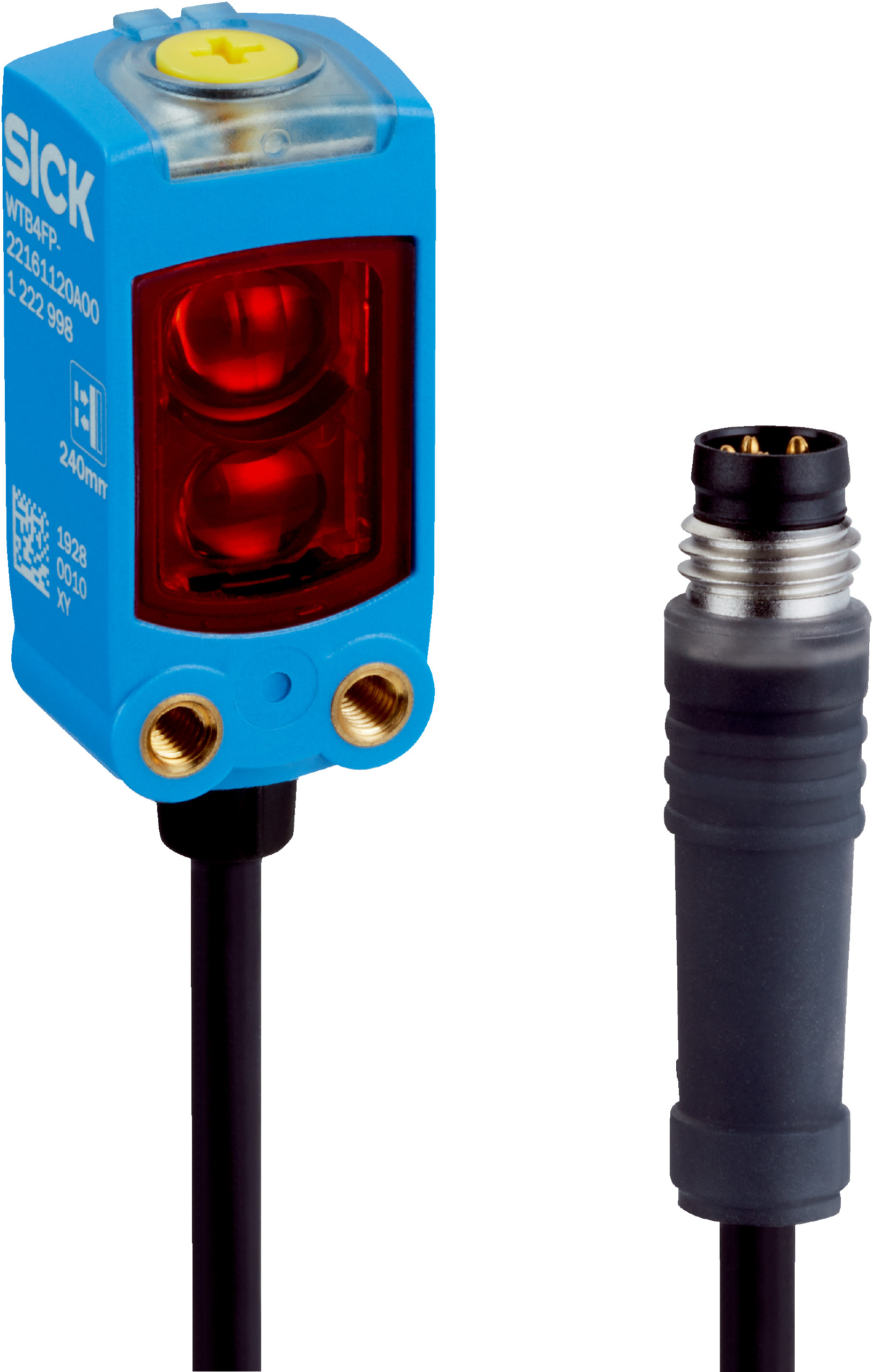

Photoelectric Proximity Sensor WTB4FP-31A11120ZZZ | Background Suppression | IP66 & IP67 Rated | by SICK
The WTB4FP-31A11120ZZZ photoelectric proximity sensor is designed for precise object detection in industrial automation. With a sensing range of 4 mm to 220 mm and adjustable switching threshold, it ensures reliable performance. Featuring a robust IP66 and IP67 rated housing, this sensor is perfect for manufacturing process control and packaging systems, providing durability and efficiency in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 4 mm to 220 mm, adjustable switching threshold 15 mm to 220 mm
- Light source: PinPoint LED, visible red light, wavelength 635 nm
- Response time: ≤ 500 µs, switching frequency up to 1000 Hz
- Output: 1 PNP digital output, light switching mode, max 100 mA
- Supply voltage: 10 V DC to 30 V DC, ripple ≤ 5 V pp
- Protection class: III
- Housing material: Plastic VISTAL®, front screen PMMA
- Connection: Cable with M8 3-pin connector, 110 mm length
- Operating temperature: -40 °C to +60 °C
- Enclosure rating: IP66 and IP67
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1000 Hz, amplitude 1 mm
- Dimensions (H x L x W): 40mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable switching threshold from 15 mm to 220 mm
- Sensing range from 4 mm to 220 mm, recommended 40 mm to 140 mm
- PinPoint LED visible red light with 635 nm wavelength
- BluePilot for easy sensing range adjustment
- High switching frequency up to 1000 Hz
- IP66 and IP67 rated for dust and water protection
- Robust plastic VISTAL® housing with flat design
- LED indicators for power, sensing range, and object detection
- Shock resistance of 30 g and vibration resistance from 10 Hz to 1000 Hz
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Robotics and safety systems requiring precise sensing
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS and ECOLAB standards for environmental safety
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB4FP-31A11120ZZZ photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
