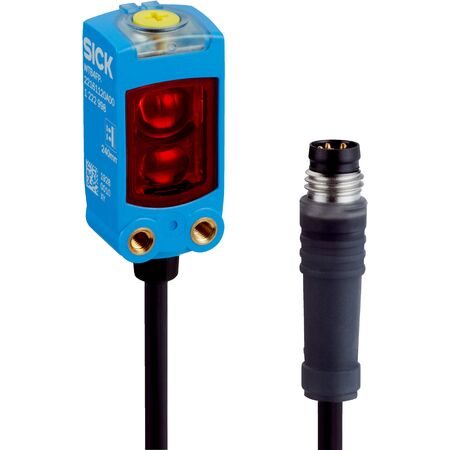

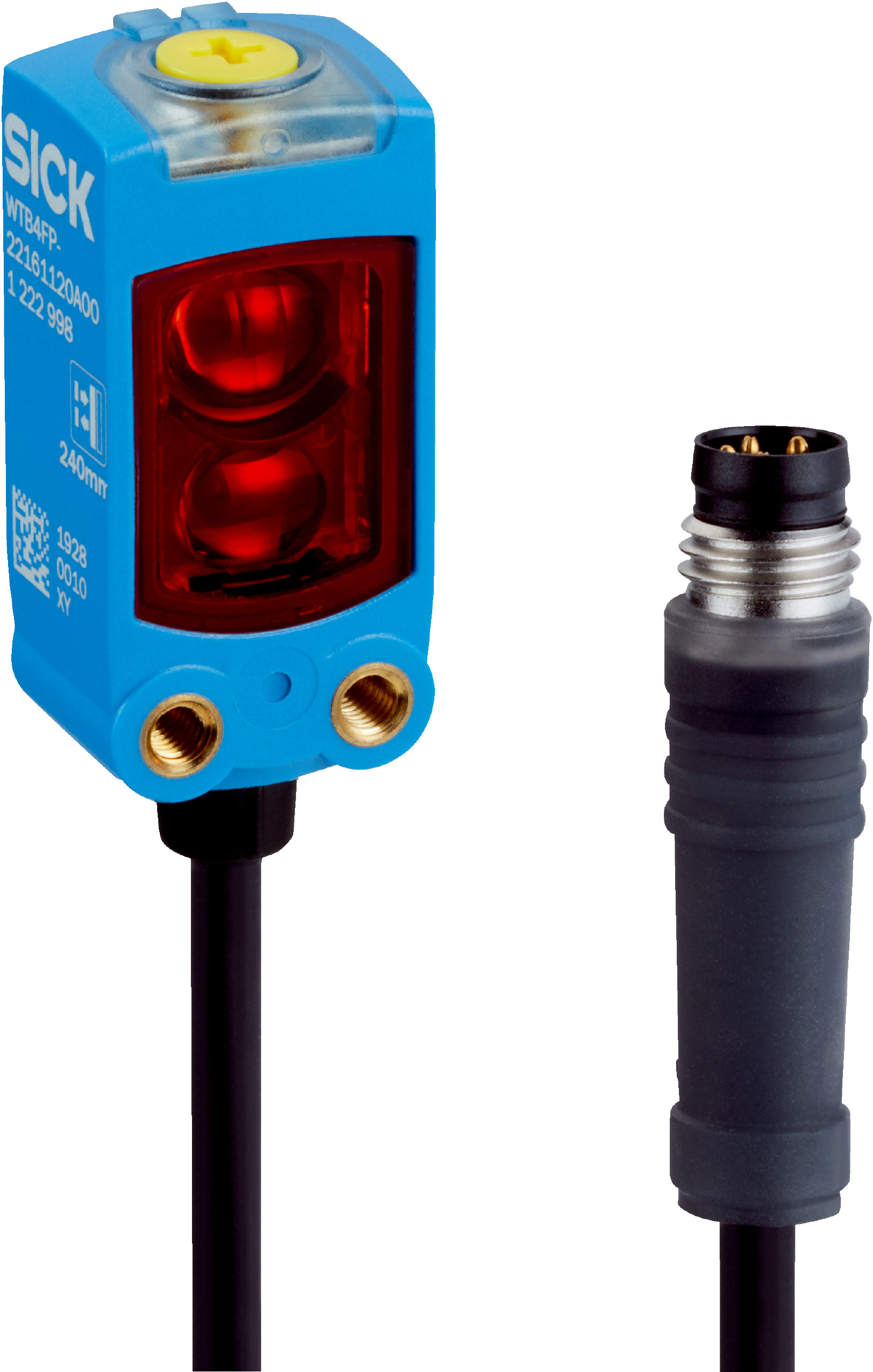

Photoelectric Proximity Sensor WTB4FP-31E11120ZZZ | Background Suppression | Adjustable Sensing Range | IP66/IP67 Rated | by SICK
The WTB4FP-31E11120ZZZ Photoelectric Proximity Sensor is designed for precise object detection in industrial automation. With a sensing range of 4 mm to 220 mm and adjustable switching thresholds, it ensures reliable performance in manufacturing and packaging applications. Featuring a robust IP66/IP67 housing and a fast response time of ≤ 500 µs, this sensor is perfect for environments requiring high accuracy and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 4 mm to 220 mm, adjustable switching threshold 15 mm to 220 mm
- Light source: PinPoint LED, visible red light, wavelength 635 nm
- Smallest detectable object: 0.2 mm at 130 mm distance
- Response time: ≤ 500 µs, switching frequency 1000 Hz
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 25 mA without load at 24 V
- Output type: 1 x NPN light switching output, max 100 mA
- Protection class: III
- Housing material: Plastic VISTAL®, front screen PMMA
- Connection: Cable with M8 3-pin connector, 110 mm length
- Operating temperature: -40 °C to +60 °C
- Enclosure rating: IP66 and IP67
- LED indicators: BluePilot sensing range, green power, yellow object detection
- Dimensions (H x L x W): 40mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable switching threshold from 15 mm to 220 mm
- Sensing range from 4 mm to 220 mm, recommended 40 mm to 140 mm
- PinPoint LED visible red light with 635 nm wavelength
- Smallest detectable object size of 0.2 mm at 130 mm distance
- BluePilot for easy sensing range adjustment
- LED indicators for sensing range, power, and object detection
- High switching frequency of 1000 Hz and fast response time ≤ 500 µs
- Robust plastic VISTAL® housing with IP66/IP67 protection rating
- Wide ambient operating temperature range from -40 °C to +60 °C
- Resistance to cleaning agents certified by ECOLAB
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Robotics and safety systems requiring precise sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient operation with low current consumption (≤ 25 mA)
- Durable IP66/IP67 housing minimizes environmental damage and extends product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WTB4FP-31E11120ZZZ Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
