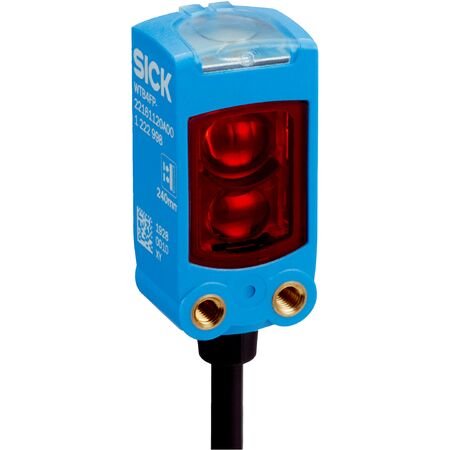

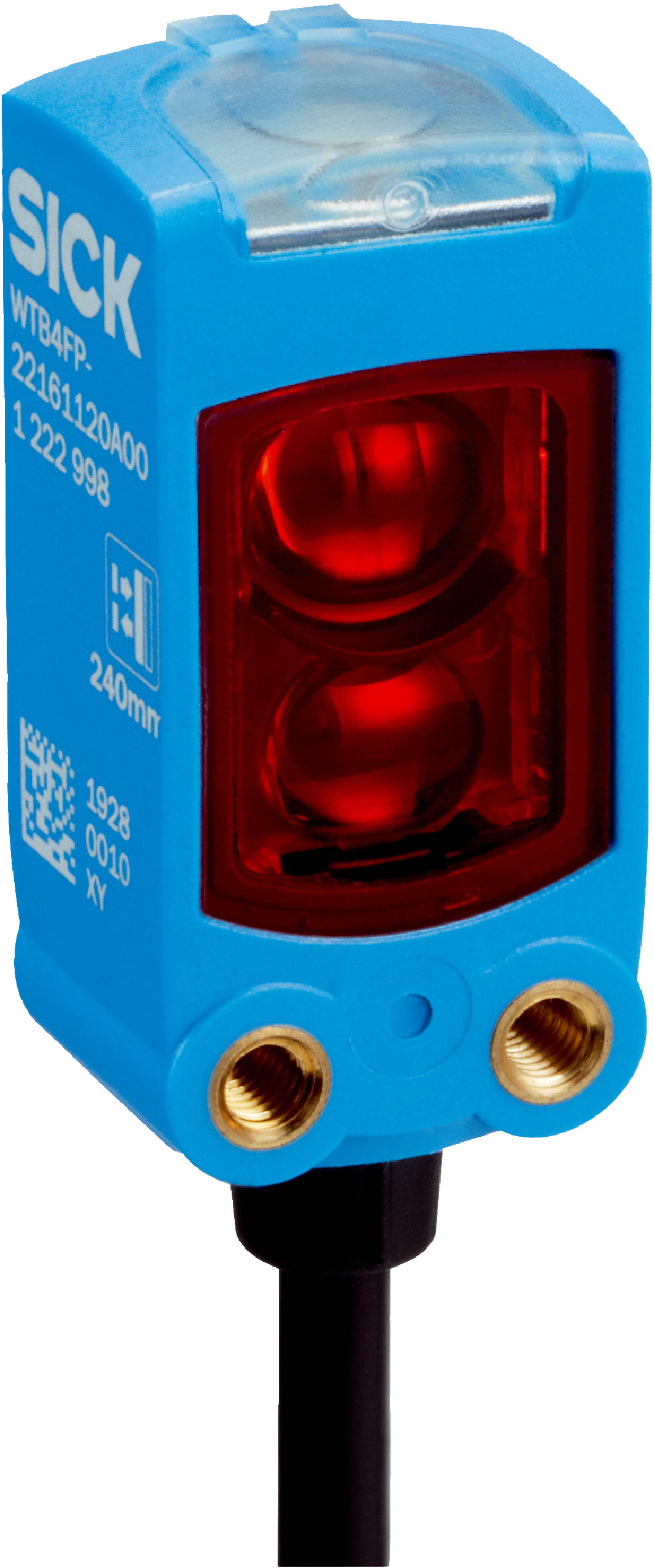

Photoelectric Proximity Sensor WTB4FP-5G3111A0ZZZ | Background Suppression | IP66 & IP67 Rated | by SICK
The WTB4FP-5G3111A0ZZZ Photoelectric Proximity Sensor is designed for precise object detection in industrial automation. With a sensing range of 4 mm to 95 mm and a PinPoint LED light source, it ensures reliable performance even in harsh environments. Ideal for manufacturing process control and robotics, this sensor features a high switching frequency of 1,000 Hz and is protected against reverse polarity and overcurrent.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 4 mm to 95 mm
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- Light spot size: Ø 4.2 mm at 130 mm distance
- LED risk group: Free group according to EN 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 25 mA without load at 24 V
- Output type: Push-pull PNP/NPN, light switching
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Protection class: III
- Enclosure rating: IP66 and IP67
- Operating temperature: -40 °C to +60 °C
- Cable: 3-wire, 3 m length, PVC insulated
- Housing material: Plastic VISTAL®
- Weight: Approx. 30 g
- Dimensions (H x L x W): 40mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Sensing range from 4 mm to 95 mm
- PinPoint LED visible red light with 635 nm wavelength
- Point-shaped light spot with Ø 4.2 mm at 130 mm distance
- Free LED risk group according to EN 62471
- Operating indicator LED green and object detection LED yellow
- Fixed sensing range of 95 mm
- High switching frequency of 1,000 Hz
- Short response time ≤ 500 µs
- Reverse polarity, overcurrent, and short-circuit protected outputs
- IP66 and IP67 rated enclosure for harsh environments
- Wide ambient operating temperature range from -40 °C to +60 °C
- Robust against shock and vibration
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor device installation to ensure proper operation and safety.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Robotics and safety systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours
- Durable design reduces waste and replacement frequency
- High immunity to ambient light reduces false triggers and energy waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB4FP-5G3111A0ZZZ Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
