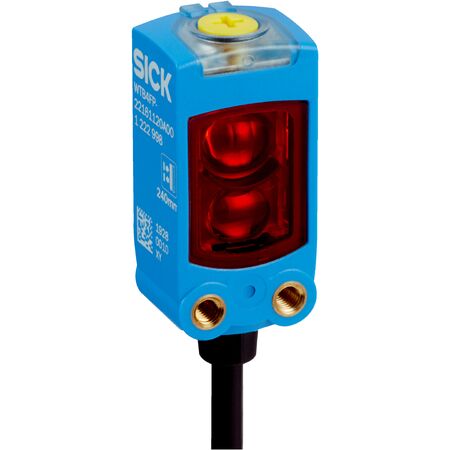

Photoelectric Proximity Sensor WTB4FT-1H161120A00 | Adjustable Sensing Range 7-120mm | IP66/IP67 Rated | by SICK
The WTB4FT-1H161120A00 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation. With an adjustable sensing range from 7 mm to 120 mm and a robust IP66/IP67 rated housing, it excels in environments requiring background suppression. Featuring a visible red PinPoint LED light source and fast response time, this sensor is perfect for detecting various object types, ensuring reliable performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range: 7 mm to 120 mm, adjustable switching threshold 15 mm to 120 mm
- Light source: PinPoint LED, visible red light at 635 nm wavelength
- Light spot size: 1.2 mm x 17 mm at 50 mm distance
- Response time: ≤ 1,000 µs, switching frequency up to 500 Hz
- Supply voltage: 10 V DC to 30 V DC with ≤ 25 mA current consumption
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Protection class: III, circuit protection against reverse polarity, overcurrent, and short-circuit
- Housing material: Plastic VISTAL®, front screen PMMA, cable PVC
- Connection: 4-wire cable, 2 m length, cable diameter 3.4 mm
- Operating temperature: -40 °C to +60 °C
- Enclosure rating: IP66 and IP67
- Shock resistance: 30 g, 11 ms; vibration resistance: 10 Hz to 1,000 Hz
- Dimensions (H x L x W): 40mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and DoubleLine technology
- Adjustable sensing range from 7 mm to 120 mm with recommended range 30 mm to 80 mm
- Visible red PinPoint LED light source with line-shaped dual light spots
- BluePilot for easy sensing range adjustment
- IO-Link V1.1 interface for sensor parameter configuration and Smart Task functions
- High switching frequency up to 500 Hz and fast response time ≤ 1,000 µs
- Robust plastic VISTAL® housing with IP66/IP67 protection rating
- Wide ambient operating temperature range from -40 °C to +60 °C
- LED indicators for sensing range, power, IO-Link mode, and object detection status
- Certified with multiple international conformity declarations including cULus and ECOLAB
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor wiring and configuration, including IO-Link setup.
Applications
- Industrial automation for object detection
- Detecting flat, wrapped, perforated, uneven, and shiny objects
- Use in environments requiring precise background suppression sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS and ECOLAB standards for environmental safety
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTB4FT-1H161120A00 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
