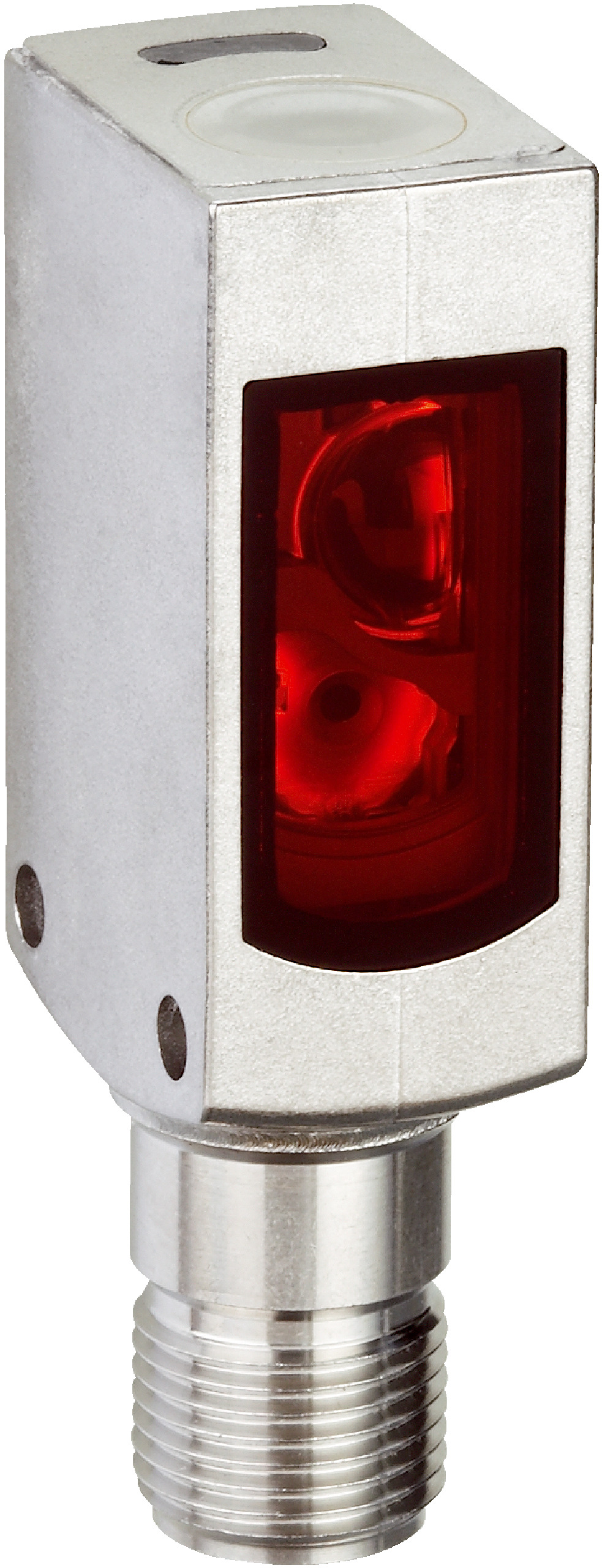

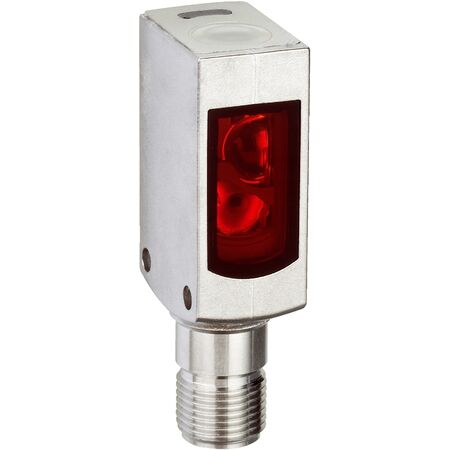

Photoelectric Proximity Sensor WTB4S-3P1162V | Background Suppression | IP66/IP69K Rated | Stainless Steel Housing | by SICK
The WTB4S-3P1162V Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range from 4 mm to 500 mm and a robust stainless steel housing. With a fast response time under 0.5 ms and a high protection rating of IP66/IP69K, it's perfect for hygienic environments and machine safety applications. The single teach-in button allows for easy adjustment, making it a reliable choice for process control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor WTB4S-3P1162V | Background Suppression | IP66/IP69K Rated | Stainless Steel Housing | by SICK
Brand: SICK
SKU: 1046388
Alternatively Known As: Photoelectric proximity sensor, Background suppression sensor, Washdown proximity sensor, Stainless steel proximity sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range max.: 4 mm to 500 mm
- Sensing range typical: 10 mm to 350 mm
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Light spot size: Ø 6.5 mm at 150 mm distance
- Adjustment: Single teach-in button
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Output type: PNP digital output, light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Protection class: III
- Circuit protection: A, B, C
- Housing material: Stainless steel V4A (1.4404, 316L)
- Front screen: Plastic, PMMA
- Cable: Plastic, PVC, 2 m length
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature: -30 °C to +70 °C
- Storage temperature: -30 °C to +75 °C
- Dimensions (H x L x W): 49mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Sensing range from 4 mm to 500 mm
- PinPoint LED visible red light with 650 nm wavelength
- Single teach-in button for easy adjustment
- Washdown housing design suitable for hygienic environments
- High protection rating: IP66, IP67, IP68, IP69K
- Fast response time under 0.5 ms and switching frequency up to 1000 Hz
- Robust stainless steel V4A housing (1.4404, 316L)
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and sensor setup according to safety standards.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones requiring robust sensors
- Machine safety and process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient LED light source minimizes power consumption
- High protection rating extends product lifespan in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WTB4S-3P1162V Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
