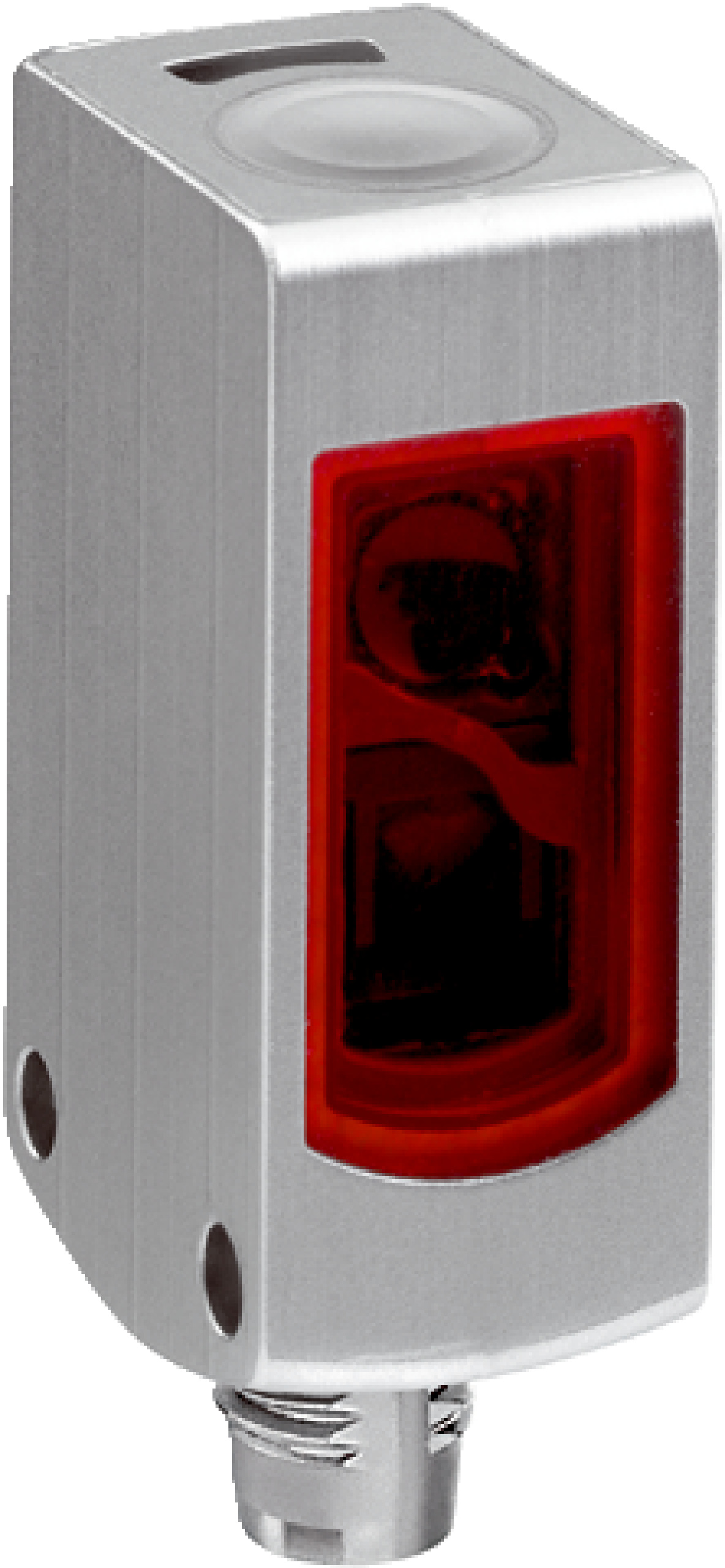

Photoelectric Proximity Sensor WTB4S-3P2232V | Background Suppression | IP66/IP67/IP68/IP69K Rated | by SICK
The WTB4S-3P2232V Photoelectric Proximity Sensor is designed for precise object detection in industrial automation and hygienic washdown zones. With a sensing range of 10 mm to 120 mm and a fast response time of under 0.5 ms, this sensor features a durable stainless steel housing and high ingress protection ratings, making it ideal for harsh environments. Its single teach-in button allows for easy adjustments, ensuring reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor WTB4S-3P2232V | Background Suppression | IP66/IP67/IP68/IP69K Rated | by SICK
Brand: SICK
SKU: 1046396
Alternatively Known As: Photoelectric proximity sensor, Background suppression sensor, Washdown proximity sensor, Stainless steel proximity sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 10 mm to 120 mm
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Adjustment: Single teach-in button
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Output type: PNP, light/dark switching, complementary
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Protection class: III
- Circuit protection: Types A, B, C
- Housing: Metal stainless steel V4A (1.4404, 316L)
- Front screen: Plastic, PMMA
- Connection: Male connector M8, 4-pin
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature: -30 °C to +70 °C
- Dimensions (H x L x W): 45mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Sensing range from 10 mm to 120 mm
- PinPoint LED visible red light with 650 nm wavelength
- Single teach-in button for easy adjustment
- Slim stainless steel V4A housing suitable for washdown environments
- High protection rating: IP66, IP67, IP68, IP69K
- Fast response time under 0.5 ms and switching frequency up to 1000 Hz
- Complementary PNP output with light/dark switching mode
- Circuit protection types A, B, and C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones
- Background suppression sensing tasks
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient LED light source minimizes power consumption
- High ingress protection reduces need for frequent replacements in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WTB4S-3P2232V Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
