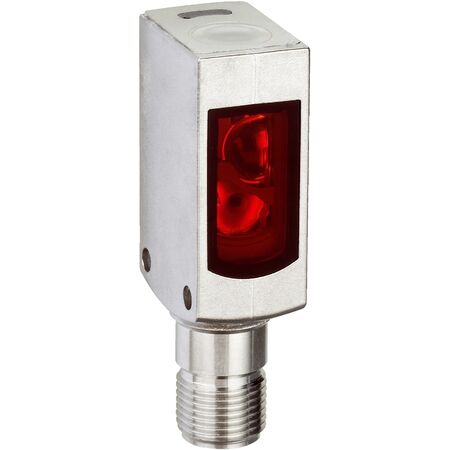

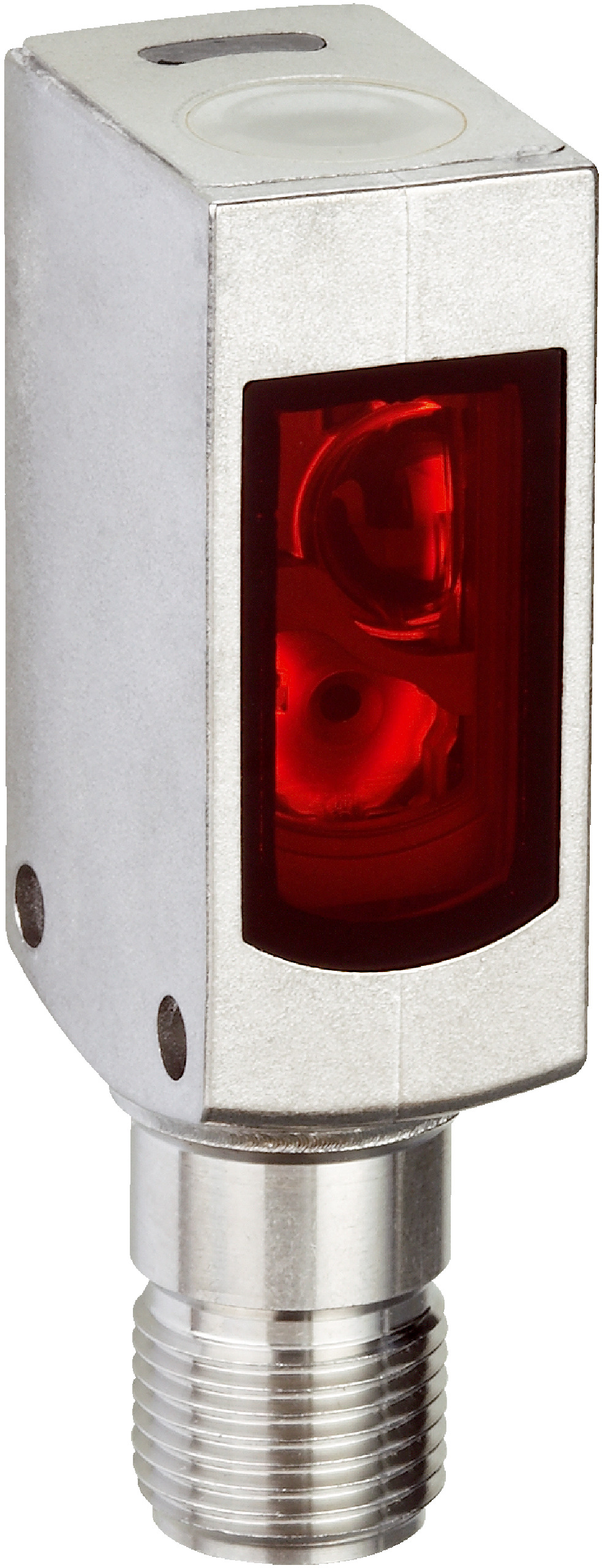

Photoelectric Proximity Sensor WTB4S-3P2462V | Background Suppression | IP66/IP67/IP68/IP69K Rated | Slim Stainless Steel Design | by SICK
The WTB4S-3P2462V Photoelectric Proximity Sensor is engineered for precision in industrial automation, featuring a sensing range of 10 mm to 350 mm and background suppression technology. With a robust stainless steel housing and high IP protection ratings, it's perfect for hygienic and washdown applications in food and pharmaceutical industries. Experience fast response times under 0.5 ms and reliable PNP output for efficient object detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor WTB4S-3P2462V | Background Suppression | IP66/IP67/IP68/IP69K Rated | Slim Stainless Steel Design | by SICK
Brand: SICK
SKU: 1054675
Alternatively Known As: Photoelectric proximity sensor, Background suppression sensor, Stainless steel proximity sensor, Washdown sensor, Industrial object sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 10 mm to 350 mm (max 4 mm to 500 mm)
- Light source: PinPoint LED, visible red light, wavelength 650 nm
- Adjustment: Single teach-in button
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Output type: PNP, light/dark switching, complementary function
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Protection class: III
- Housing: Metal stainless steel V4A (1.4404, 316L), slim design
- Front screen: Plastic PMMA
- Connection: Male connector M12, 4-pin
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature: -30 °C to +70 °C
- Storage temperature: -30 °C to +75 °C
- Dimensions (H x L x W): 49mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Sensing range from 10 mm to 350 mm, max 4 mm to 500 mm
- PinPoint LED visible red light with 650 nm wavelength
- Single teach-in button for easy adjustment
- Slim metal housing made of stainless steel V4A (1.4404, 316L)
- High protection rating: IP66, IP67, IP68, IP69K
- Fast response time under 0.5 ms and switching frequency up to 1000 Hz
- Complementary PNP output with light/dark switching mode
- Suitable for hygienic and washdown zones
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct sensor alignment, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones in food and pharmaceutical industries
- Background suppression sensing in manufacturing processes
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient LED light source minimizes power consumption
- High ingress protection reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTB4S-3P2462V Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
