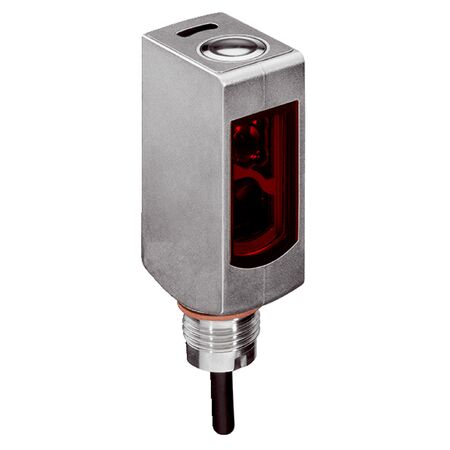

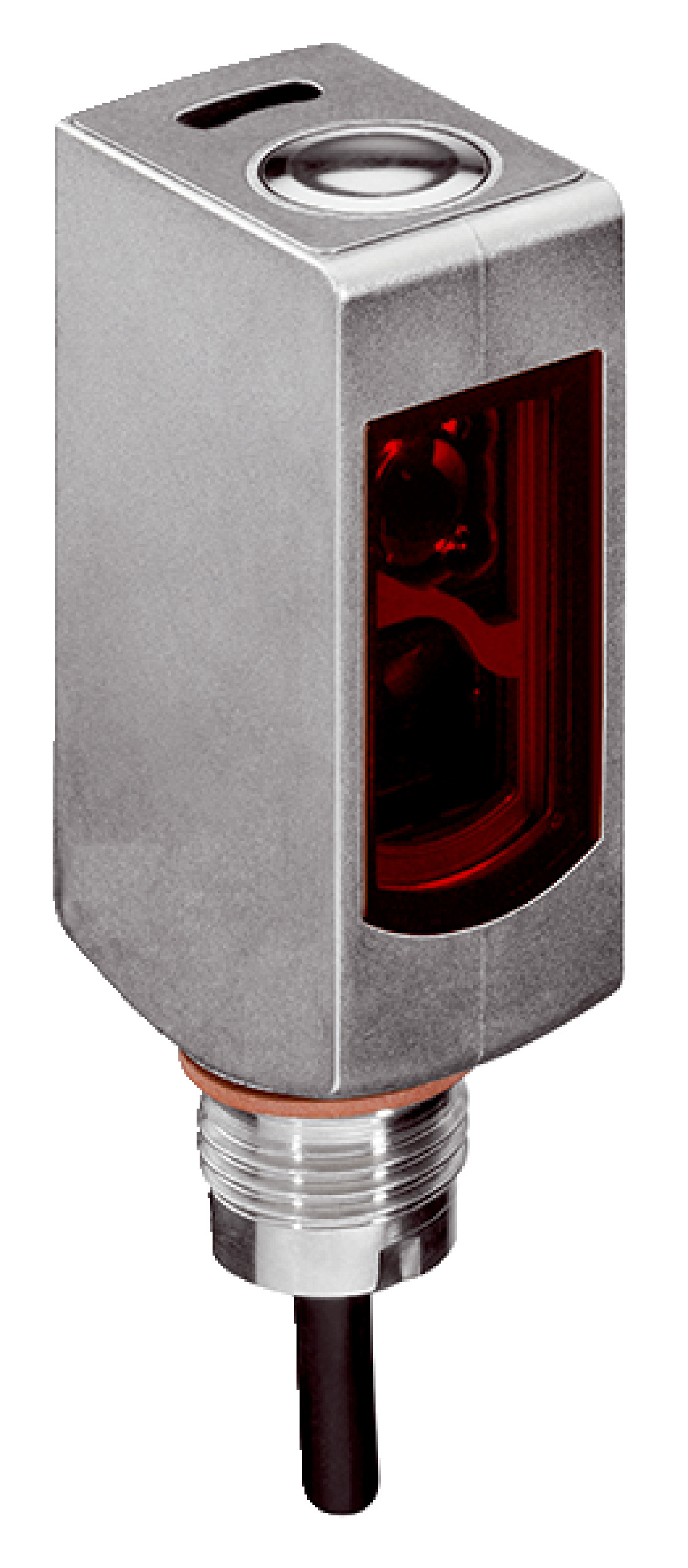

Photoelectric Proximity Sensor WTB4S-3P3264H | Background Suppression | IP66 to IP69K Rated | Fast Response Time | by SICK
The WTB4S-3P3264H Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range from 4 mm to 500 mm and a fast response time of under 0.5 ms. With a durable stainless steel housing and IP66 to IP69K rating, it's perfect for hygienic environments and background suppression applications, ensuring reliable object detection in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor WTB4S-3P3264H | Background Suppression | IP66 to IP69K Rated | Fast Response Time | by SICK
Brand: SICK
SKU: 1048047
Alternatively Known As: Photoelectric Proximity Sensor, Background Suppression Sensor, Stainless Steel Proximity Sensor, Industrial Proximity Sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range max.: 4 mm to 500 mm
- Sensing range: 10 mm to 350 mm
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Adjustment: Cable and single teach-in button
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Protection class: III
- Output type: PNP, light switching
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1,000 Hz
- Housing: Metal, stainless steel V4A (1.4404, 316L)
- Front screen: Plastic, PMMA
- Cable: Plastic, PVC
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature: -30 °C to +70 °C
- Storage temperature: -30 °C to +75 °C
- Dimensions (H x L x W): 63mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Sensing range from 4 mm to 500 mm
- PinPoint LED visible red light with 650 nm wavelength
- Slim stainless steel V4A (1.4404, 316L) housing for hygienic environments
- IP66, IP67, IP68, IP69K rated for robust protection
- Fast response time under 0.5 ms and switching frequency up to 1,000 Hz
- Cable with M8 male connector, 4-pin, 150 mm length
- Certified with EU, UK, ACMA, Moroccan conformity and cULus
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones requiring stainless steel housing
- Background suppression sensing in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK WTB4S-3P3264H Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
