Photoelectric Proximity Sensor WTB4S-3P5232H | Background Suppression | IP66/IP67/IP68/IP69K Rated | by SICK
The WTB4S-3P5232H Photoelectric Proximity Sensor is designed for precision sensing in industrial automation, featuring a sensing range of 10 mm to 120 mm and a fast response time of under 0.5 ms. With a hygienic stainless steel V4A housing and high protection ratings, it's perfect for washdown zones and demanding environments, ensuring reliable performance and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

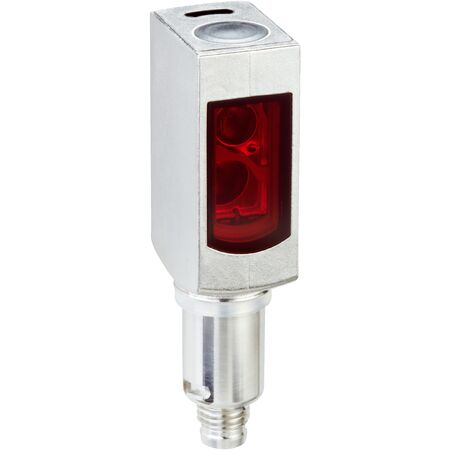

Product Name/Title: Photoelectric Proximity Sensor WTB4S-3P5232H | Background Suppression | IP66/IP67/IP68/IP69K Rated | by SICK
Brand: SICK
SKU: 1054864
Alternatively Known As: Photoelectric Proximity Sensor, Background Suppression Sensor, Stainless Steel Proximity Sensor, Washdown Proximity Sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 10 mm to 120 mm
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Adjustment: Single teach-in button
- Housing: Metal, Stainless steel V4A (1.4404, 316L), Plastic PMMA front screen
- Protection rating: IP66, IP67, IP68, IP69K
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Output type: PNP, light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Connection: Male connector M8, 4-pin
- Operating temperature: -30 °C to +70 °C
- Dimensions (H x L x W): 63mm x 22mm x 15mm
- Weight: 0.14 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Sensing range from 10 mm to 120 mm
- PinPoint LED visible red light with 650 nm wavelength
- Single teach-in button for easy adjustment
- Hygienic stainless steel V4A housing suitable for washdown zones
- High protection rating IP66, IP67, IP68, IP69K
- Fast response time under 0.5 ms and switching frequency up to 1000 Hz
- PNP output with light/dark switching mode
- Complementary output function with circuit protection
- Operating temperature range from -30 °C to +70 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones requiring stainless steel housing
- Precision sensing in manufacturing and processing environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient LED light source minimizes power consumption
- High ingress protection reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK WTB4S-3P5232H Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and hygienic applications.
