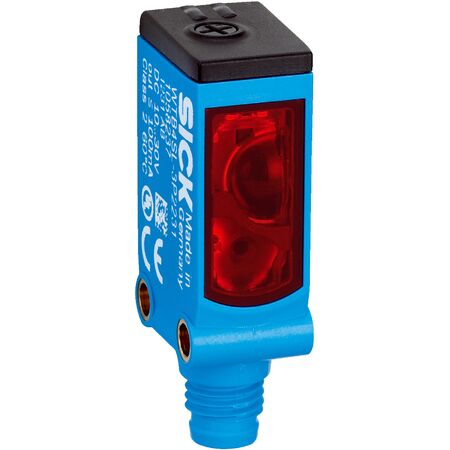

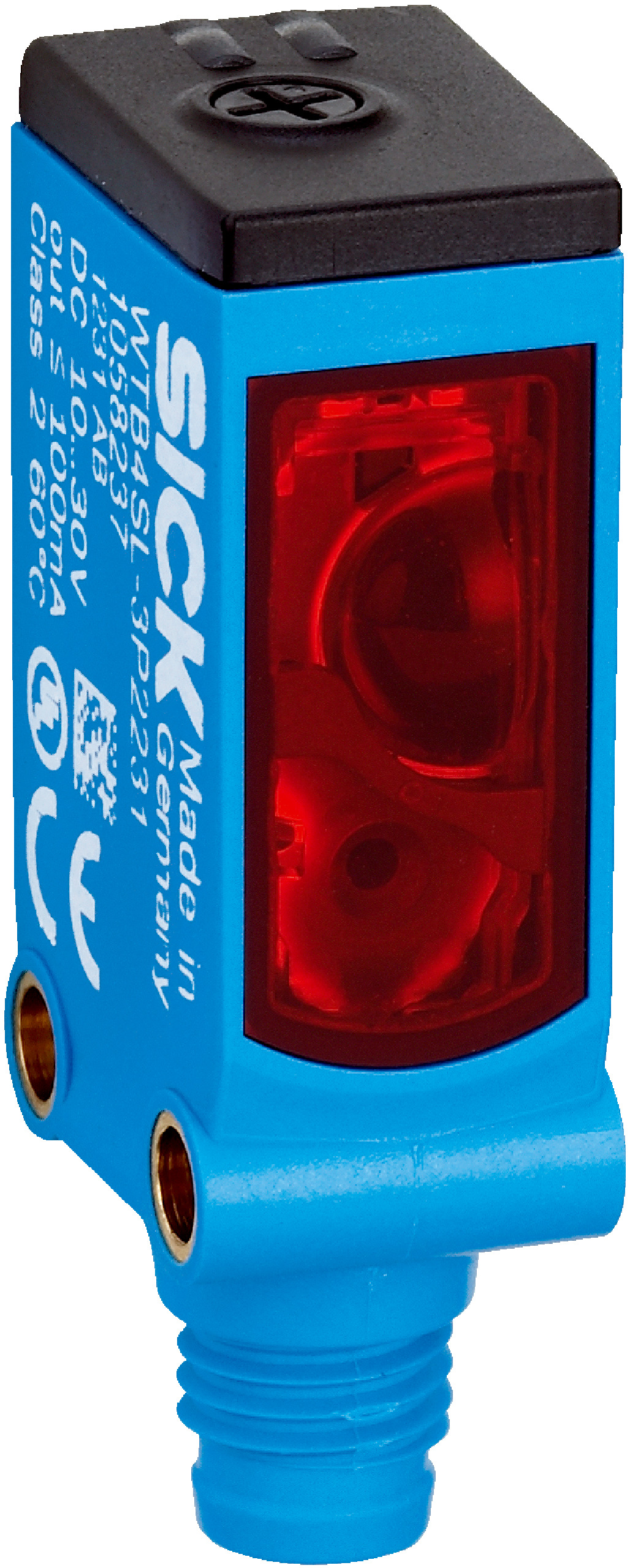

Photoelectric Proximity Sensor WTB4SL-3N3261 | 25mm to 300mm Sensing Range | Laser Light Source | IP66 & IP67 Rated | by SICK
The WTB4SL-3N3261 Photoelectric Proximity Sensor is designed for precision in industrial automation, featuring a sensing range of 25 mm to 300 mm and a visible red laser light source at 650 nm. With a fast response time of ≤ 0.5 ms and robust IP66/IP67 protection, this sensor is perfect for detecting small objects in machine safety and control systems, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 25 mm to 300 mm
- Light source: Laser, visible red light, 650 nm wavelength
- Light spot size: Ø 1 mm at 170 mm distance
- Laser class: 1
- Adjustment: Potentiometer, 5 turns
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Current consumption: 30 mA
- Protection class: III
- Digital output: NPN, light/dark switching, max output current ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Output function: Complementary
- Circuit protection: Types A, B, C
- Housing material: Plastic, Novodur
- Front screen: Plastic, PMMA
- Cable: Plastic, PVC, 120 mm length
- Mounting hole: M3
- Enclosure rating: IP66, IP67
- Operating temperature: -10 °C to +50 °C (extended -30 °C to +55 °C)
- Storage temperature: -30 °C to +70 °C
- Dimensions (H x L x W): 41.8mm x 17.3mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Sensing range from 25 mm to 300 mm
- Visible red laser light source with 650 nm wavelength
- Slim plastic Novodur housing with IP66 and IP67 protection
- Fast response time of ≤ 0.5 ms and switching frequency up to 1,000 Hz
- NPN digital output with light/dark switching mode
- Potentiometer adjustment with 5 turns
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for detecting small objects
- Machine safety and control systems
- Material handling and packaging lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 30 mA current draw
- RoHS compliant, ensuring reduced hazardous substances
- Durable housing reduces waste through extended product life
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB4SL-3N3261 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
