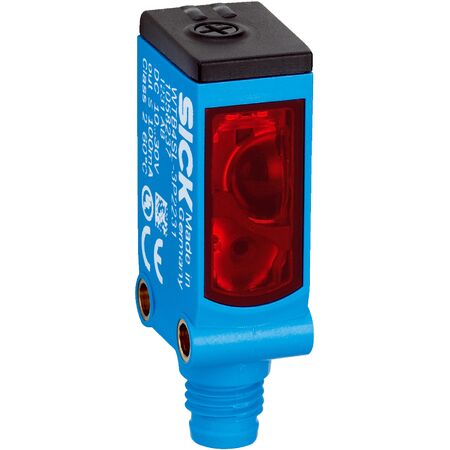

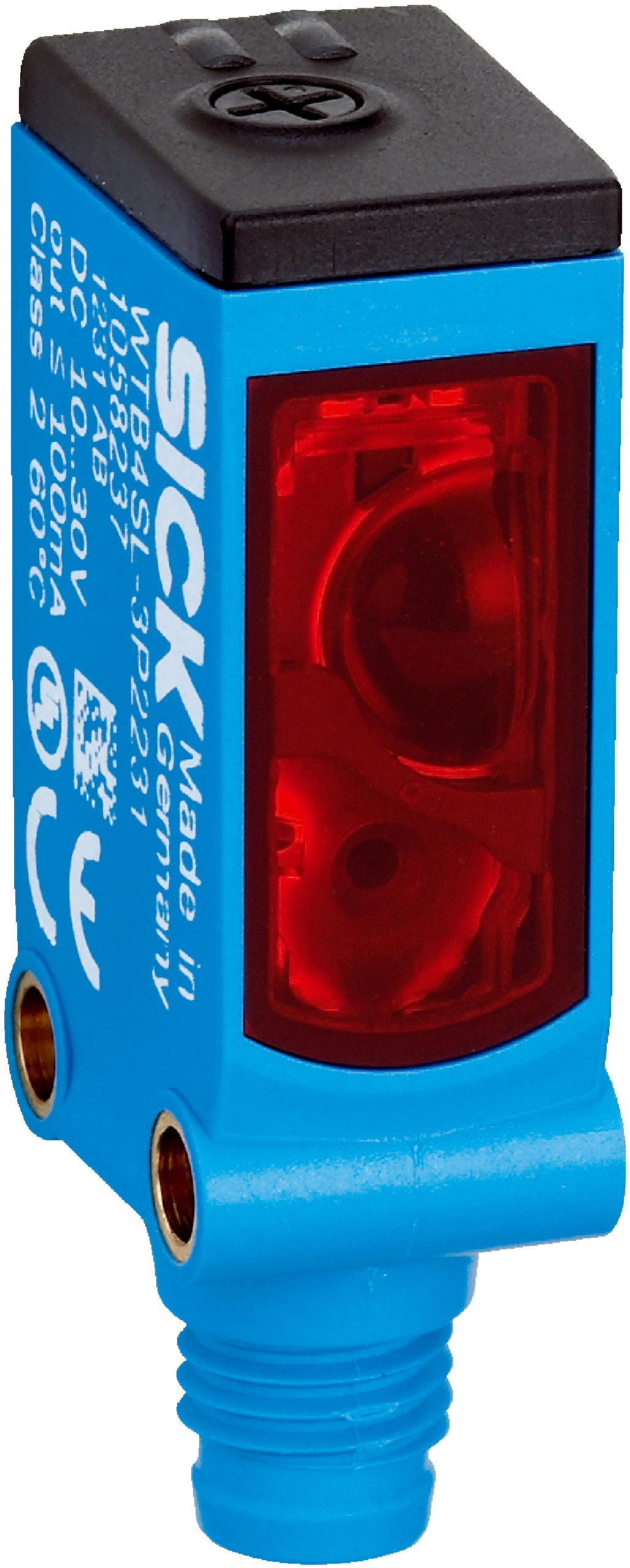

Photoelectric Proximity Sensor WTB4SL-3P3161 | 25mm to 300mm Sensing Range | IP66/IP67 Rated | by SICK
The WTB4SL-3P3161 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range from 25 mm to 300 mm and a visible red laser light source. With an IP66/IP67 rating for dust and water protection, this sensor is perfect for detecting small objects in manufacturing processes and conveyor systems, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 25 mm to 300 mm
- Light source: Visible red laser, 650 nm wavelength
- Laser class: 1
- Adjustment: 5-turn potentiometer
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Output type: PNP, light switching
- Max output current: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Protection class: III
- Housing material: Plastic, Novodur
- Front screen: Plastic, PMMA
- Cable: Plastic, PVC, 100 mm length
- Enclosure rating: IP66, IP67
- Operating temperature: -10 °C to +50 °C (extended -30 °C to +55 °C)
- Storage temperature: -30 °C to +70 °C
- Dimensions (H x L x W): 41.8mm x 17.3mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Sensing range from 25 mm to 300 mm
- Visible red laser light source with 650 nm wavelength
- Laser class 1 safety compliant
- Slim plastic Novodur housing
- IP66 and IP67 rated for dust and water protection
- Fast response time of ≤ 0.5 ms and switching frequency up to 1,000 Hz
- PNP digital output with light switching mode
- Adjustable sensitivity via 5-turn potentiometer
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for detecting small objects
- Manufacturing process control
- Object presence detection in conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- Durable IP66/IP67 rated housing extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTB4SL-3P3161 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
