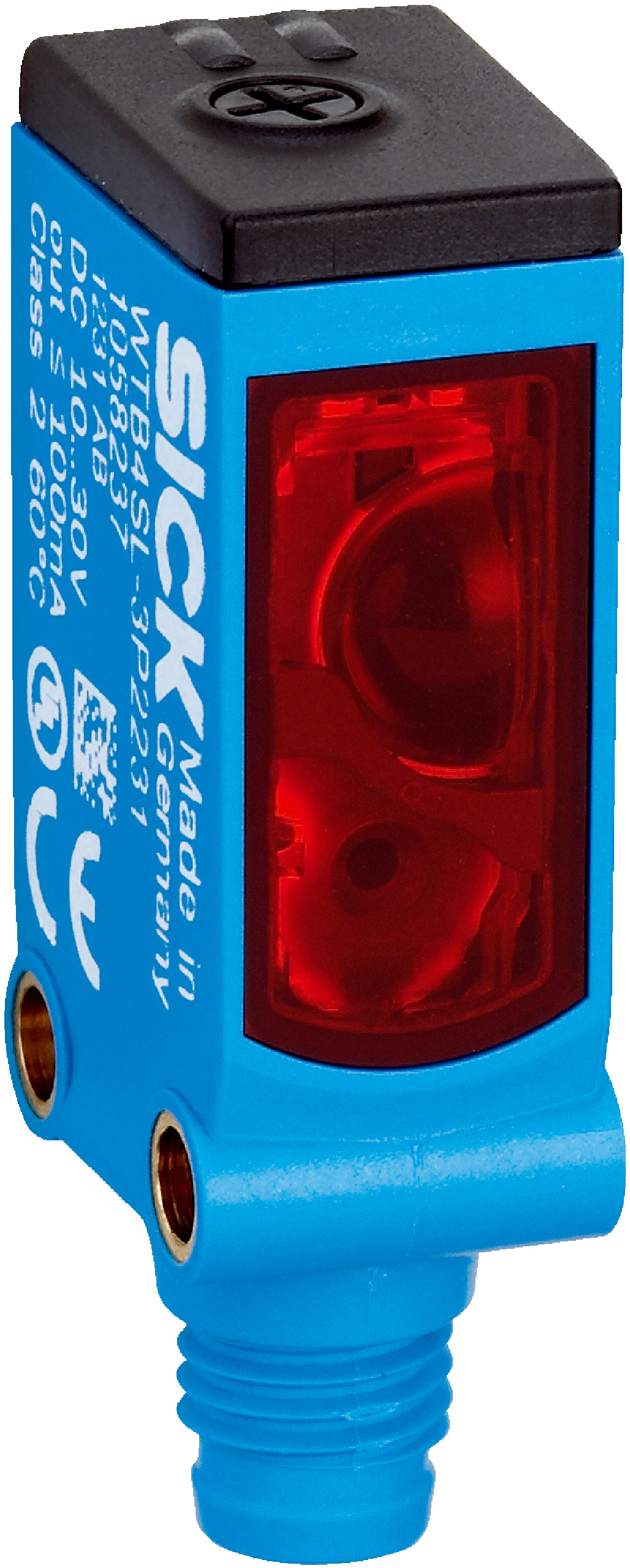

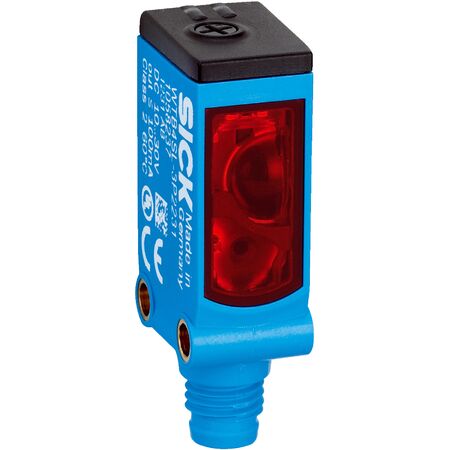

Photoelectric Proximity Sensor WTB4SL-3P3261 | Background Suppression | Laser Light Source | IP66/IP67 Rated | by SICK
The WTB4SL-3P3261 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation. With a sensing range of 25 mm to 300 mm and a visible red laser light source, it ensures reliable performance. This sensor features IP66/IP67 ratings for dust and water protection, making it ideal for machine safety and control systems in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 25 mm to 300 mm
- Light source: Laser, visible red light, 650 nm wavelength
- Laser class: 1 (safe laser)
- Adjustment: Potentiometer with 5 turns
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Output type: PNP, light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Protection class: III
- Housing material: Plastic, Novodur
- Front screen: Plastic, PMMA
- Cable: Plastic, PVC, 120 mm length
- Enclosure rating: IP66, IP67
- Operating temperature: -10 °C to +50 °C (extended -30 °C to +55 °C)
- Storage temperature: -30 °C to +70 °C
- Dimensions (H x L x W): 41.8mm x 17.3mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Sensing range from 25 mm to 300 mm
- Visible red laser light source with 650 nm wavelength
- Laser class 1 safety compliant
- Potentiometer adjustment with 5 turns
- Slim plastic Novodur housing
- IP66 and IP67 rated for dust and water protection
- Fast response time of ≤ 0.5 ms and switching frequency up to 1,000 Hz
- PNP output with light/dark switching mode
- Cable with M8 male connector, 4-pin
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for detecting small objects
- Machine safety and control systems
- Material handling and packaging lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB4SL-3P3261 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
