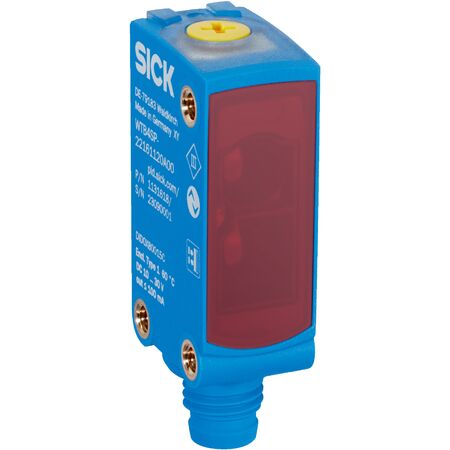

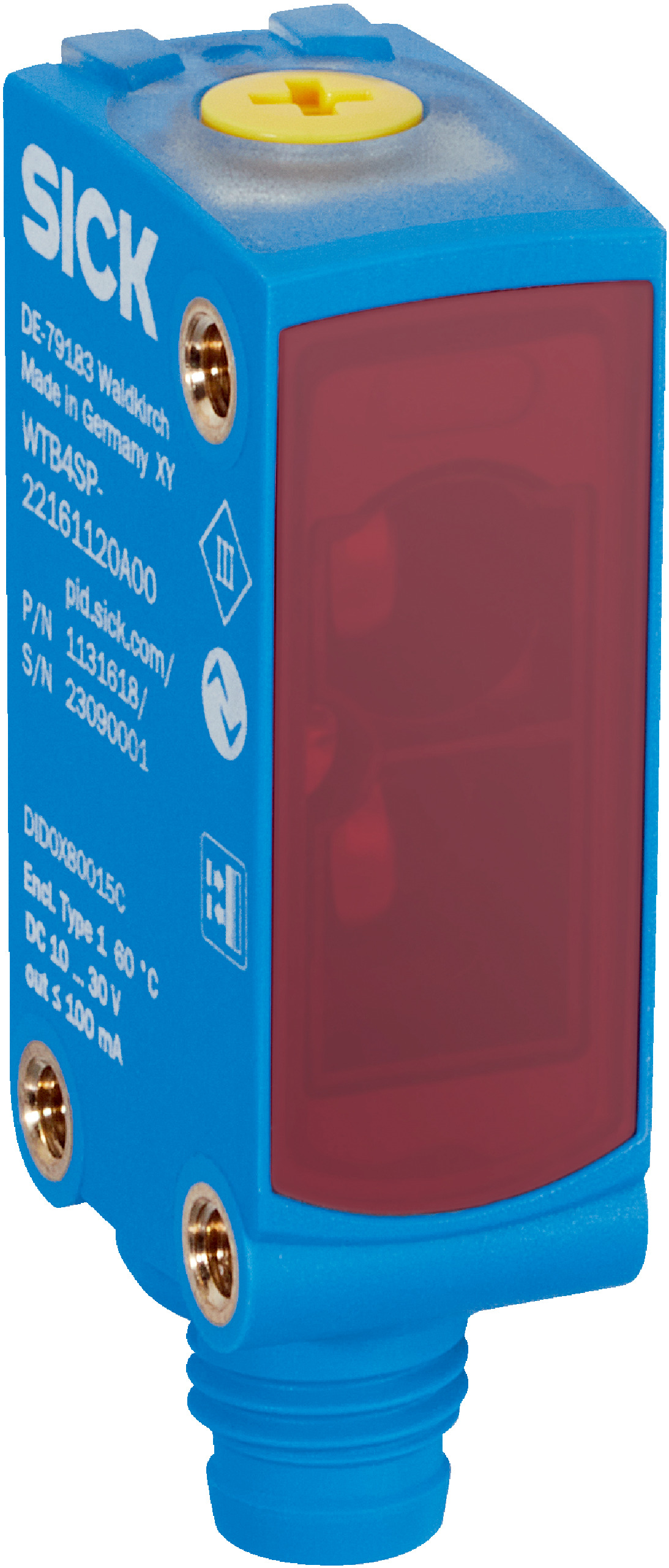

Photoelectric Proximity Sensor WTB4SP-22162120A00 | Adjustable Sensing Range | IP66/IP67 Rated | by SICK
The Photoelectric Proximity Sensor WTB4SP-22162120A00 features an adjustable sensing range from 10 mm to 250 mm, making it ideal for precise object detection in industrial automation. With a fast response time of ≤ 500 µs and dual push-pull digital outputs, this sensor is built for reliability in harsh environments, ensuring optimal performance in material handling and quality control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range: 4 mm to 250 mm, adjustable switching threshold 10 mm to 250 mm
- Light source: PinPoint LED, visible red light, wavelength 635 nm
- Response time: ≤ 500 µs, switching frequency up to 1,000 Hz
- Digital outputs: 2 push-pull (PNP/NPN), light/dark switching
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA at 24 V
- Protection class: III
- Enclosure rating: IP66 and IP67
- Operating temperature: -40 °C to +60 °C
- Connection: Male M8, 4-pin connector
- Housing material: Plastic VISTAL®, front screen PMMA
- EMC compliant to EN 60947-5-2
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1,000 Hz, amplitude 1 mm
- Dimensions (H x L x W): 42mm x 19mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable sensing range from 10 mm to 250 mm
- PinPoint LED visible red light with 635 nm wavelength
- High repeatability and fast response time (≤ 500 µs)
- Dual push-pull digital outputs (PNP/NPN) with light/dark switching
- IO-Link V1.1 communication for sensor configuration and Smart Task functions
- Robust plastic VISTAL® housing with IP66/IP67 protection rating
- Wide ambient operating temperature range from -40 °C to +60 °C
- Shock and vibration resistant for harsh industrial environments
- BluePilot for easy sensing range adjustment
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor configuration and secure mounting according to industrial standards.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Quality control and inspection processes
- Factory and process automation requiring precise proximity sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB4SP-22162120A00 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
