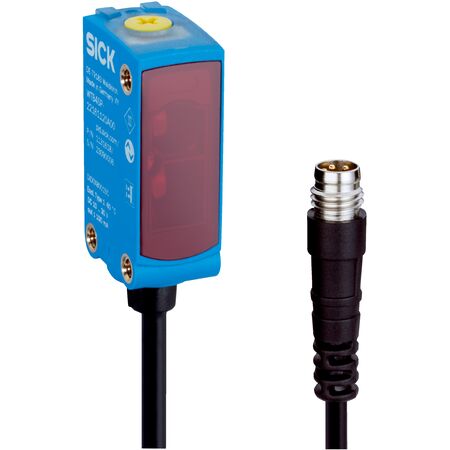

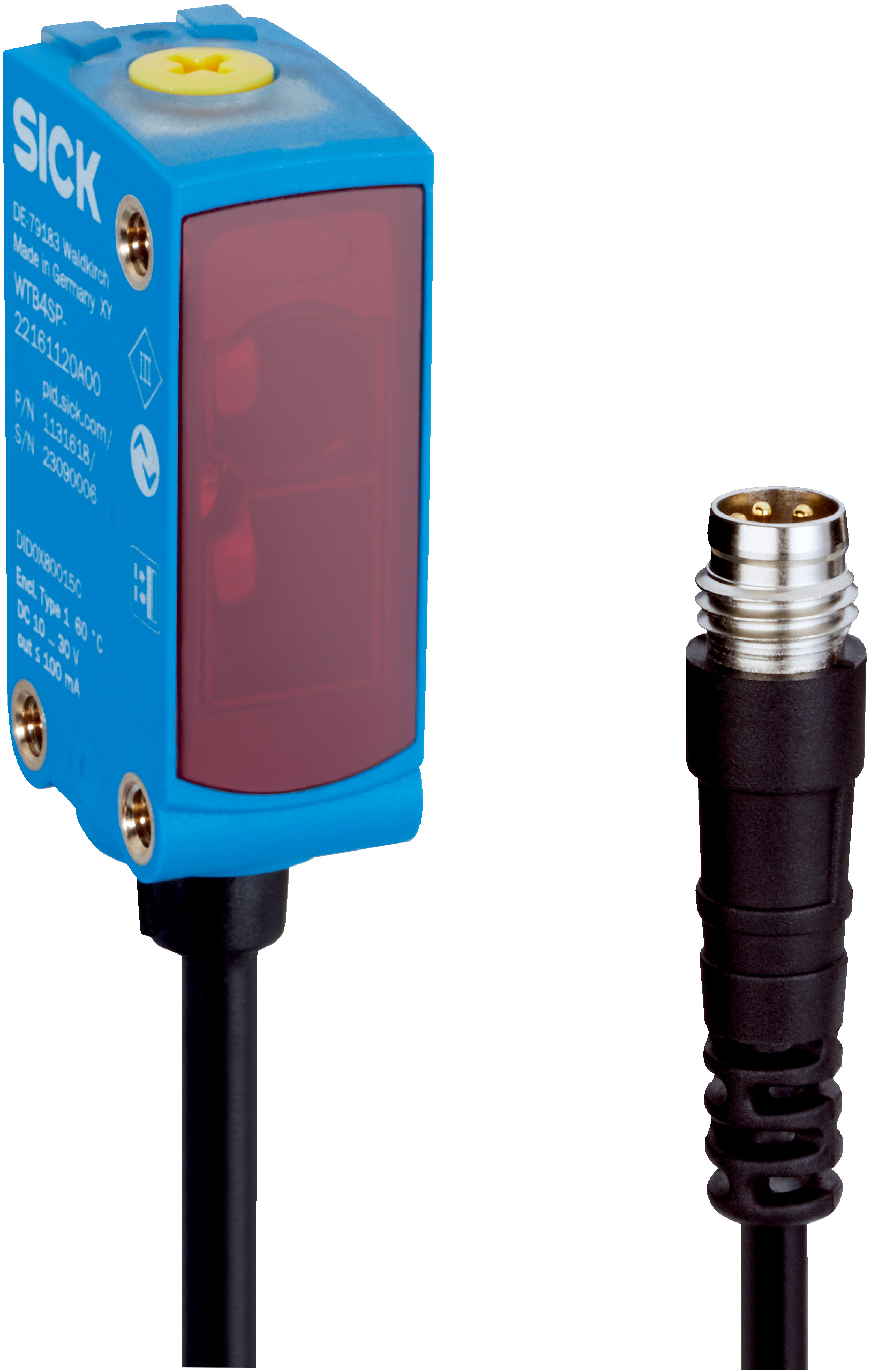

Photoelectric Proximity Sensor WTB4SP-32161120A00 | Adjustable Sensing Range | IP66/IP67 Protection | by SICK
The Photoelectric Proximity Sensor WTB4SP-32161120A00 features an adjustable sensing range from 10 mm to 250 mm, making it ideal for industrial automation and precise object detection. With a robust IP66/IP67 rated housing and a fast response time of 150 µs, this sensor is built for reliability in harsh environments, ensuring optimal performance in material handling and quality control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range: 4 mm to 250 mm, adjustable switching threshold 10 mm to 250 mm
- Light source: PinPoint LED, visible red light at 635 nm wavelength
- Response time: ≤ 500 µs, repeatability 150 µs
- Digital outputs: 2 push-pull (PNP/NPN), light/dark switching
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA at 24 V
- Protection class: III
- Enclosure rating: IP66 and IP67
- Operating temperature: -40 °C to +60 °C
- Communication: IO-Link V1.1 with COM2 (38.4 kBaud)
- Housing material: Plastic VISTAL® with PMMA front screen
- Cable: PVC, 4-pin M8 male connector, 114 mm length
- Dimensions (H x L x W): 42mm x 19mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable sensing range from 10 mm to 250 mm
- PinPoint LED visible red light with 635 nm wavelength
- High repeatability with 150 µs response time
- Dual push-pull digital outputs (PNP/NPN) with light/dark switching
- IO-Link V1.1 communication for sensor parameter configuration
- Robust plastic VISTAL® housing with IP66/IP67 protection
- Wide ambient operating temperature range from -40 °C to +60 °C
- Shock resistance up to 30 g and vibration resistance from 10 Hz to 1000 Hz
- BluePilot for easy sensing range adjustment
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor configuration and secure mounting according to industrial standards.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Quality control and inspection processes
- Robotics and manufacturing lines requiring precise sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTB4SP-32161120A00 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
