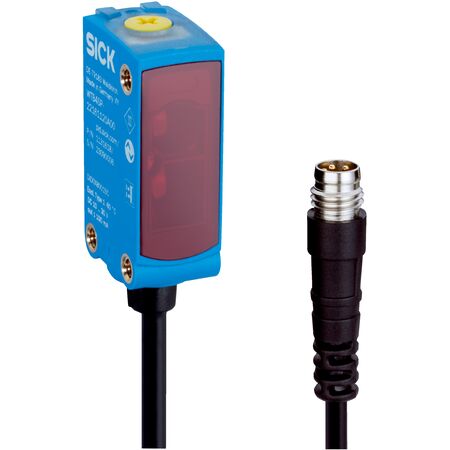

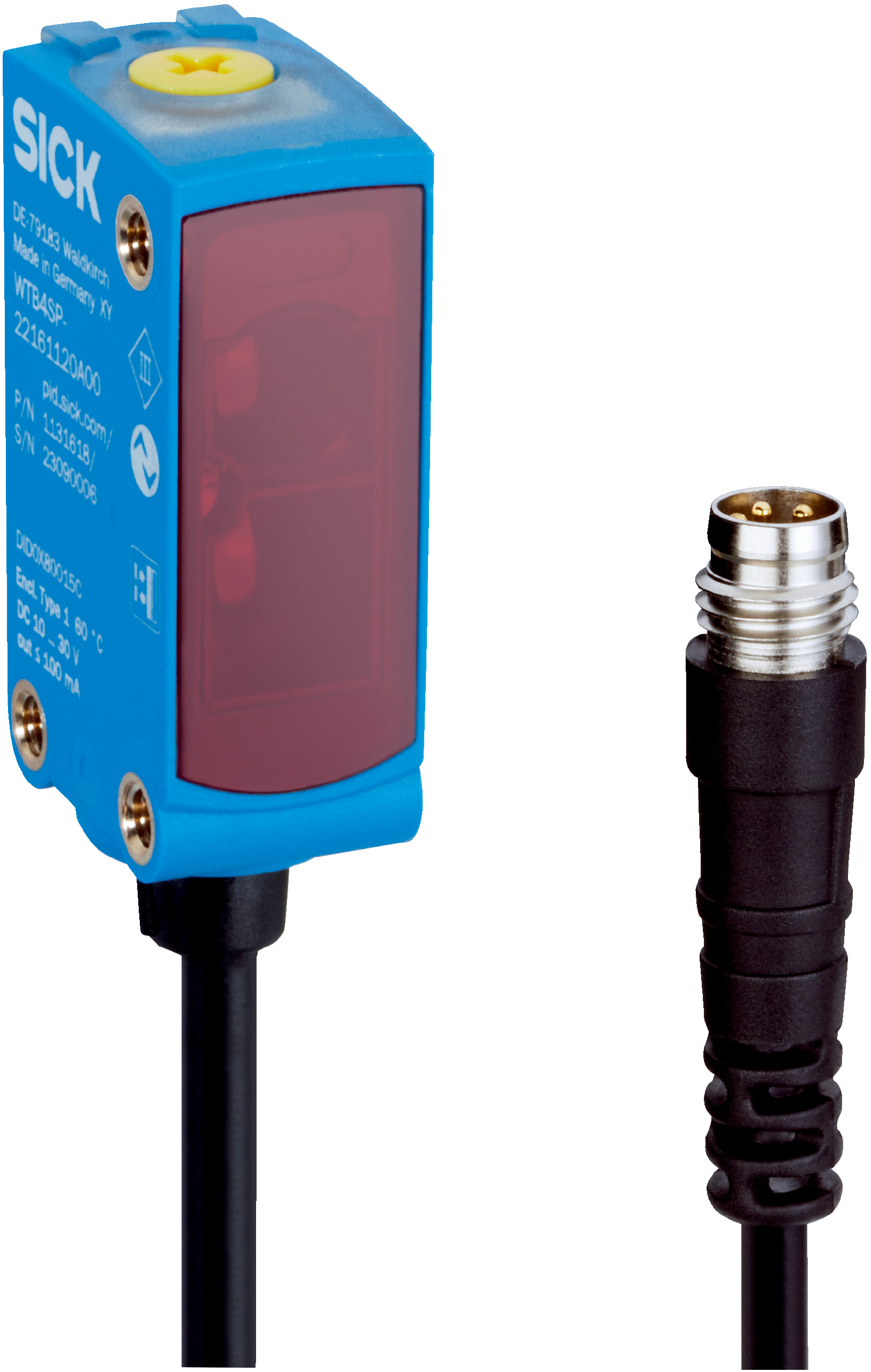

Photoelectric Proximity Sensor WTB4SP-32167120A00 | Background Suppression | Adjustable Sensing Range | IP66/IP67 Rated | by SICK
The Photoelectric Proximity Sensor WTB4SP-32167120A00 is designed for precise object detection in industrial automation. With a sensing range adjustable from 4 mm to 250 mm and a fast response time of ≤ 500 µs, it ensures reliable performance. Featuring IP66/IP67 protection, this sensor is ideal for harsh environments, making it perfect for material handling, quality control, and factory automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 4 mm to 250 mm adjustable, recommended 40 mm to 170 mm
- Light source: PinPoint LED, visible red light, wavelength 635 nm
- Switching outputs: 2 push-pull (PNP/NPN), light switching mode
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA without load
- Response time: ≤ 500 µs
- Switching frequency: 1000 Hz
- Protection class: III
- Enclosure rating: IP66 and IP67
- Operating temperature: -40 °C to +60 °C
- Connection: Cable with M8 male connector, 4-pin, 114 mm length
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud), cycle time 2.3 ms
- Dimensions (H x L x W): 42mm x 19mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable sensing range from 10 mm to 250 mm
- PinPoint LED visible red light with 4 mm spot size at 150 mm
- BluePilot for easy sensing range adjustment
- IO-Link V1.1 communication for sensor configuration and Smart Task functions
- High switching frequency up to 1000 Hz and fast response time ≤ 500 µs
- IP66 and IP67 rated for robust protection against dust and water
- Wide ambient operating temperature range from -40 °C to +60 °C
- Plastic VISTAL® slim housing with M8 4-pin connector
- LED indicators for sensing range, operating status, and object detection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and configuration, including IO-Link setup for optimal performance.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Quality control and inspection processes
- Factory and process automation requiring precise proximity sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient operation with low current consumption (≤ 20 mA)
- Robust design minimizes environmental impact through durability and reduced maintenance
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB4SP-32167120A00 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
