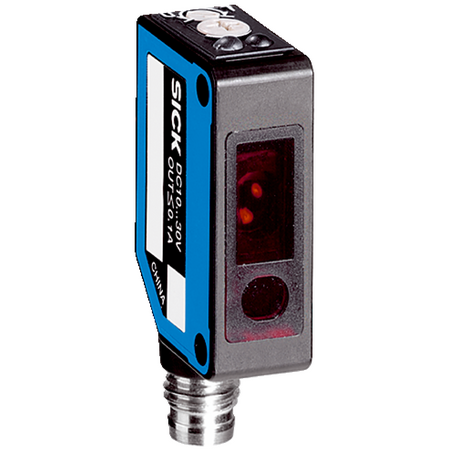

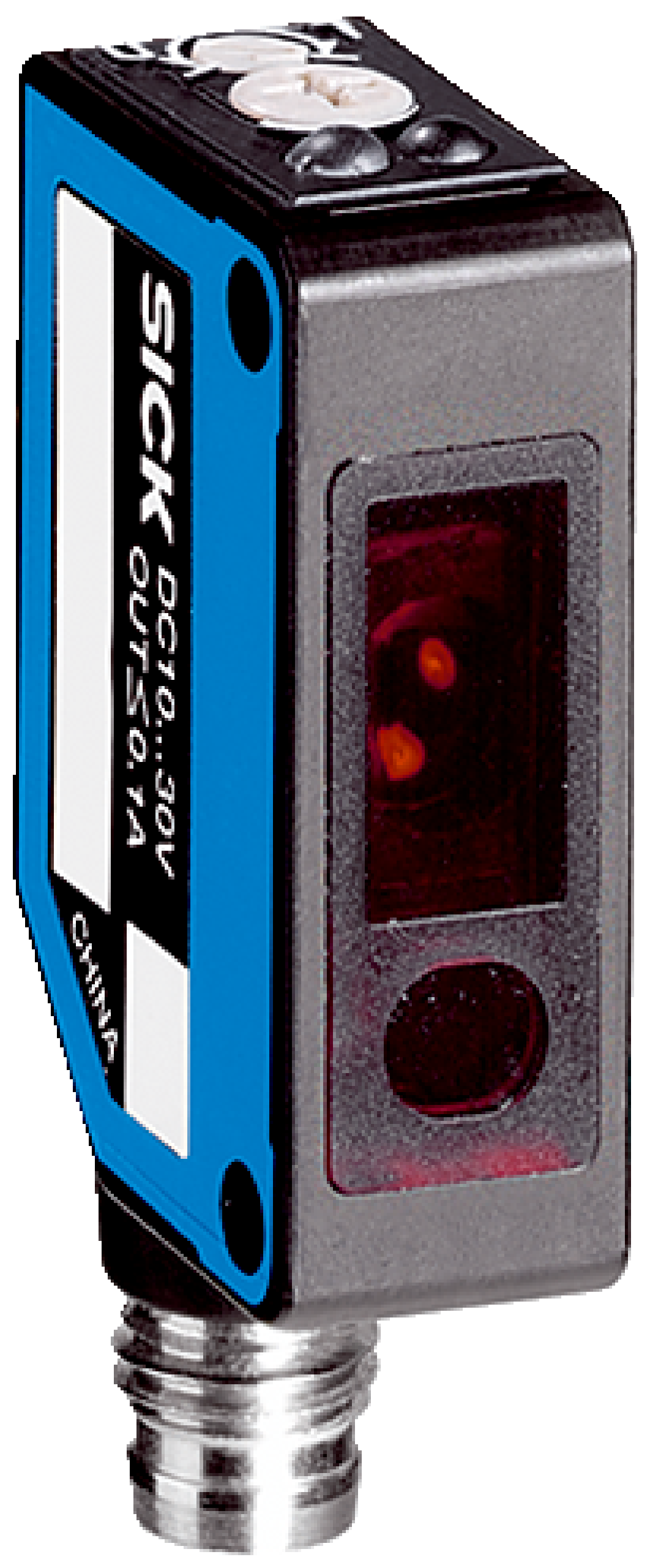

Photoelectric Proximity Sensor WTB8-P2131 | Background Suppression | Adjustable Sensing Range | IP67 Rated | by SICK
The WTB8-P2131 Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and an adjustable sensing range from 40 mm to 300 mm. With a fast response time of ≤ 0.5 ms and an IP67 rated enclosure, it ensures reliable object detection in various applications, including manufacturing process control and material handling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric Proximity Sensor, Background Suppression Sensor, PNP Proximity Sensor, Industrial Proximity Sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 40 mm to 300 mm
- Light source: Visible red LED, wavelength 650 nm
- Adjustment: Potentiometer with 4 turns
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Switching output: PNP, max output current ≤ 100 mA
- Switching mode: Light/dark switching selectable via rotary switch
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Connector M8, 3-pin
- Circuit protection: Types A, B, D
- Housing material: Plastic ABS, optics material PMMA
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Weight: 10 g
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with visible red LED light source
- Adjustable sensing range from 40 mm to 300 mm
- Potentiometer adjustment with 4 turns for sensitivity tuning
- High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Connector M8, 3-pin for easy installation
- Includes stainless steel mounting bracket
Professional Installation Requirements
- Installation by a qualified electrician or trained technician is recommended to ensure proper wiring and sensor configuration.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 10 V DC to 30 V DC supply voltage
- Durable ABS and PMMA plastic housing reduces material waste
- Long service life reduces replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WTB8-P2131 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
