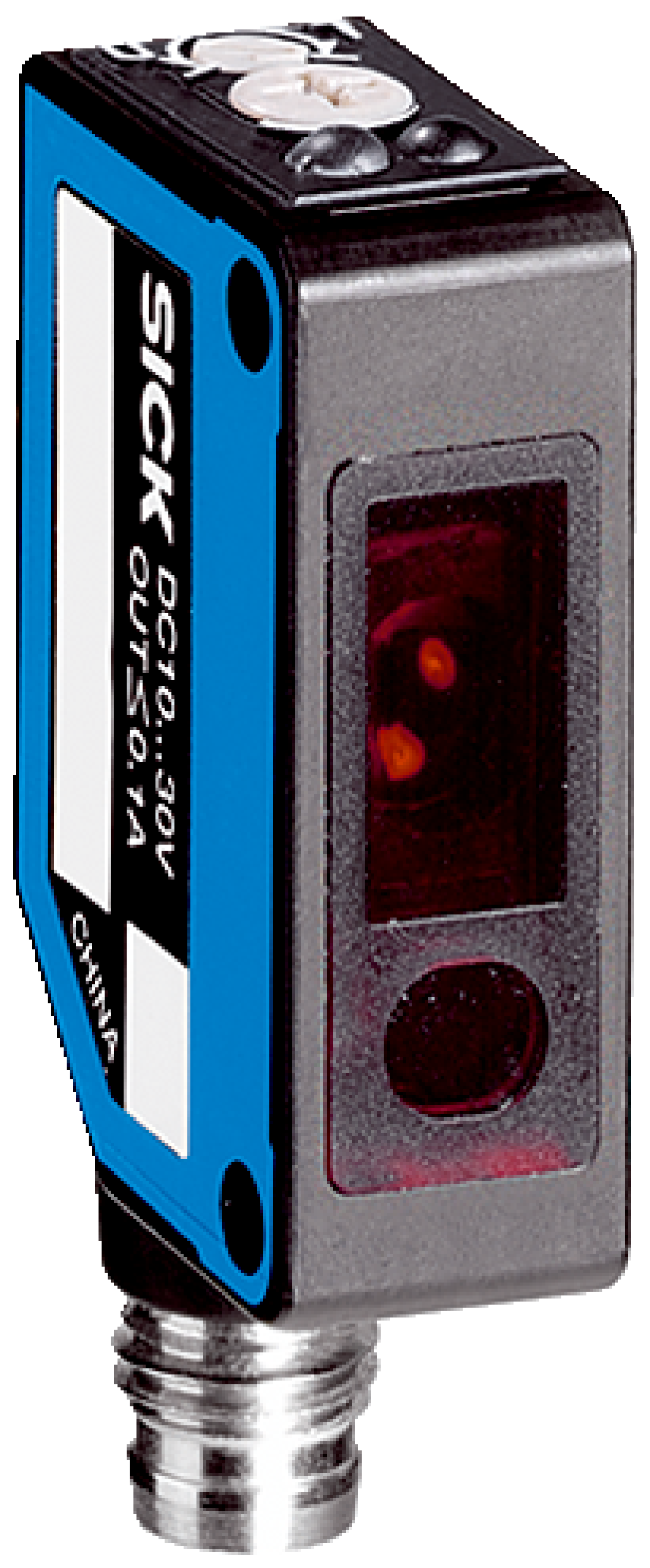

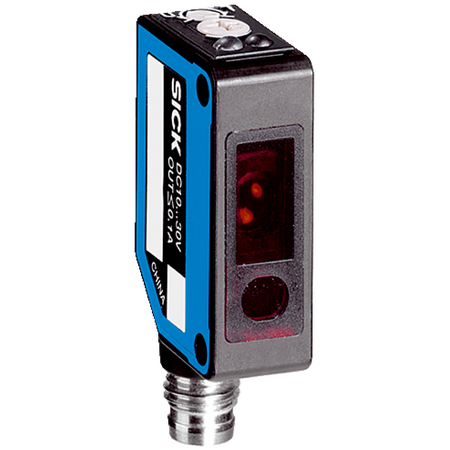

Photoelectric Proximity Sensor WTB8-P2231 | Background Suppression | IP67 Rated | Fast Response Time | by SICK
The WTB8-P2231 Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and an adjustable sensing range from 40 mm to 300 mm. With a fast response time of ≤ 0.5 ms and an IP67 rating for dust and water protection, this sensor is perfect for manufacturing process control and safety monitoring in machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric Proximity Sensor, Background Suppression Sensor, Industrial Proximity Sensor, SICK Proximity Sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 40 mm to 300 mm
- Light source: LED, visible red light at 650 nm wavelength
- Adjustment: Potentiometer, 4 turns
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Switching output: PNP with max output current ≤ 100 mA
- Switching mode: Light/dark switching selectable via rotary switch
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Male connector M8, 4-pin
- Circuit protection: Types A, B, D
- Housing material: Plastic ABS; Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Weight: 10 g
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with visible red light emission
- Adjustable sensing range from 40 mm to 300 mm
- LED light source with 650 nm wavelength
- Potentiometer adjustment with 4 turns
- IP67 rated enclosure for dust and water protection
- Fast response time of ≤ 0.5 ms and switching frequency of 1,000 Hz
- Selectable light/dark switching mode via rotary switch
- Male connector M8, 4-pin connection
- Includes stainless steel mounting bracket
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and sensor alignment according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and monitoring in machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 10 V DC to 30 V DC supply voltage
- Durable ABS and PMMA plastic housing extends product life reducing waste
- IP67 rating ensures long-term reliability in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB8-P2231 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
