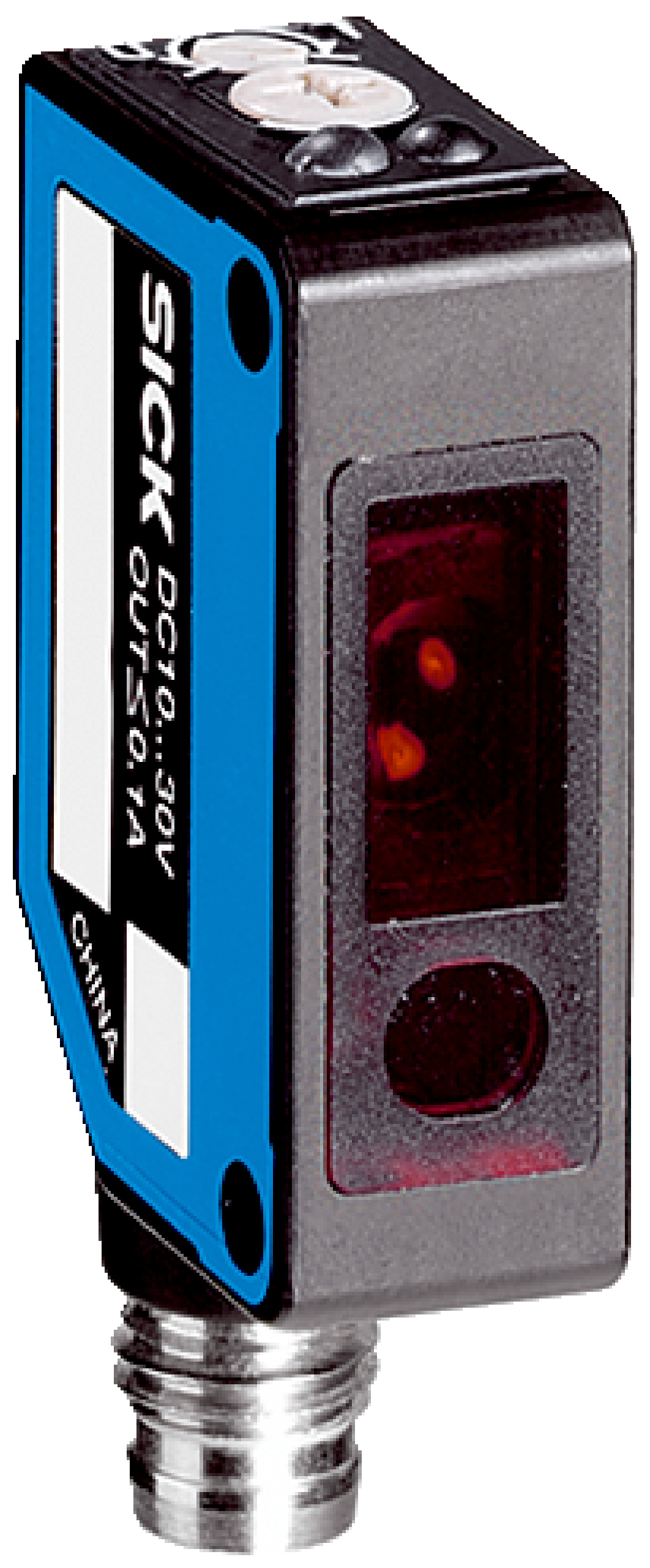

Photoelectric Proximity Sensor WTB8-P2231 | Background Suppression | IP67 Rated | Fast Response Time | by SICK
The WTB8-P2231 Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and an adjustable sensing range from 40 mm to 300 mm. With a fast response time of ≤ 0.5 ms and an IP67 rated enclosure, this sensor is perfect for manufacturing process control, packaging, and robotics applications, ensuring reliable object detection in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 40 mm to 300 mm
- Light source: Visible red LED, wavelength 650 nm
- Light spot size: Ø 20 mm at 300 mm distance
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Switching output: PNP, max output current ≤ 100 mA
- Switching mode: Light/dark selectable via rotary switch
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Male connector M8, 4-pin
- Circuit protection: Types A, B, D
- Housing material: Plastic ABS; Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with visible red LED light source
- Adjustable sensing range from 40 mm to 300 mm
- Potentiometer adjustment with 4 turns
- IP67 rated enclosure for dust and water protection
- Fast response time of ≤ 0.5 ms and switching frequency of 1,000 Hz
- Selectable light/dark switching mode via rotary switch
- Male connector M8, 4-pin connection type
- Includes stainless steel mounting bracket
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Robotics and safety systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable ABS and PMMA plastic housing reduces material waste
- Long service life with MTTFD of 1,568 years reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WTB8-P2231 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
