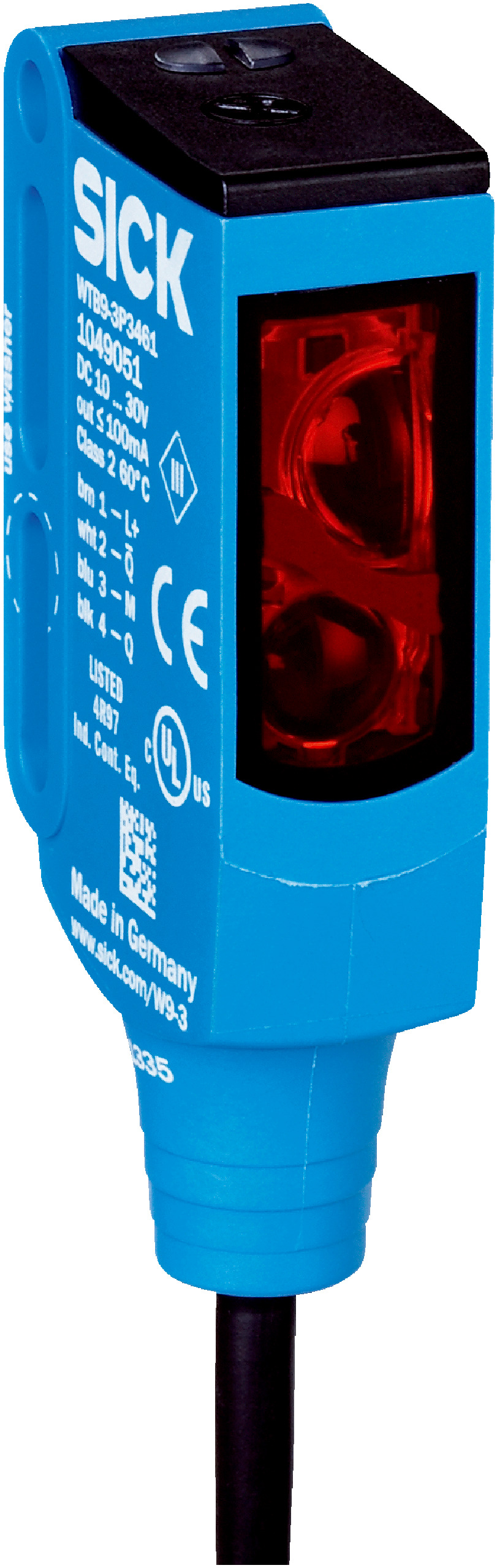

Photoelectric Proximity Sensor WTB9-3P1161 | IP66, IP67, IP69K Rated | Fast Response Time | by SICK
The WTB9-3P1161 Photoelectric Proximity Sensor is designed for industrial automation, featuring a robust rectangular housing and adjustable sensing range from 20 mm to 350 mm. With a high switching frequency of 1,500 Hz and a fast response time of under 0.333 ms, this sensor ensures reliable object detection and safety monitoring in manufacturing processes and material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor WTB9-3P1161 | IP66, IP67, IP69K Rated | Fast Response Time | by SICK
Brand: SICK
SKU: 1049043
Alternatively Known As: Photoelectric sensor, Proximity sensor with background suppression, SICK proximity sensor, Industrial photo sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, complementary function
- Output current max: ≤ 100 mA
- Switching mode: Light/dark switching
- Response time: < 0.333 ms
- Switching frequency: 1,500 Hz
- Connection type: 4-wire cable, 2 m length
- Cable material: Plastic, PVC
- Conductor cross section: 0.14 mm²
- Protection class: III
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Light source: PinPoint LED, 650 nm wavelength
- Light spot size: Ø 4.5 mm at 75 mm distance
- Mounting hole: M3
- Dimensions (H x L x W): 50mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with visible red light emission
- Adjustable sensing range from 20 mm to 350 mm
- PinPoint LED light source with 650 nm wavelength
- Potentiometer adjustment with 5 turns
- High switching frequency of 1,500 Hz and fast response time under 0.333 ms
- Robust plastic housing (VISTAL®) and optics (PMMA) with IP66, IP67, and IP69K protection ratings
- Wide ambient operating temperature range from -40 °C to +60 °C
- Cable connection with 4-wire, 2 m PVC cable
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Warranty details available upon request from the manufacturer or authorized distributor.
Available Now
The SICK WTB9-3P1161 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
