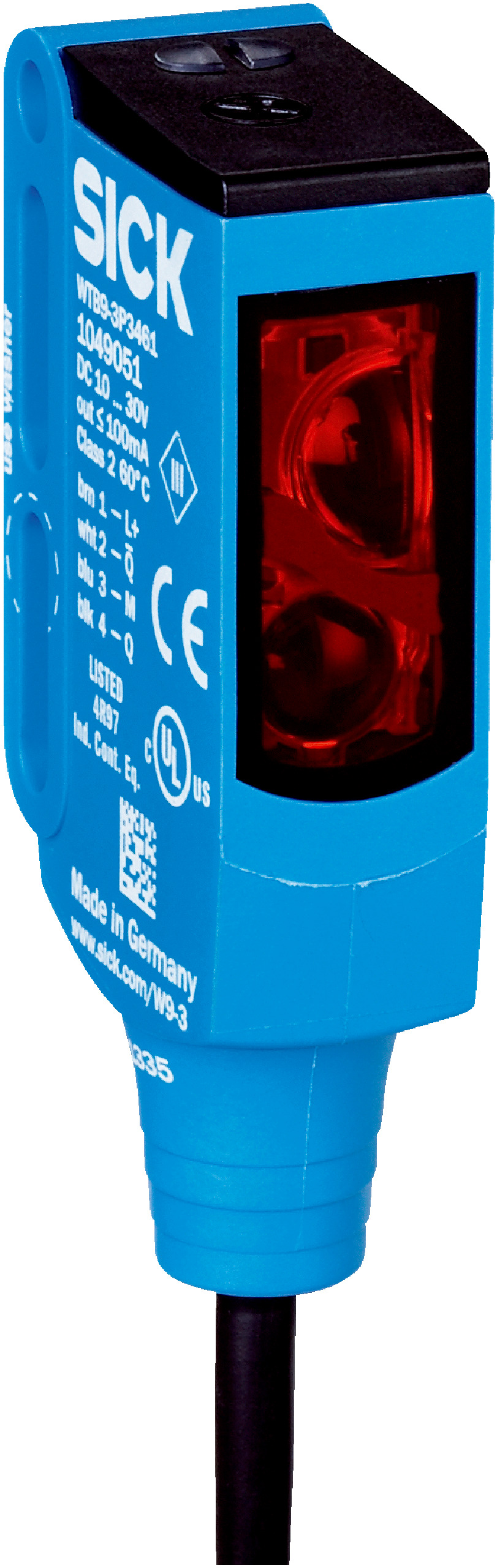

Photoelectric Proximity Sensor WTB9-3P1261 | Background Suppression | IP66/IP67/IP69K Rated | Adjustable Sensing Range | by SICK
The WTB9-3P1261 Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and an adjustable sensing range from 20 mm to 350 mm. With a high switching frequency of 1,500 Hz and robust IP66/IP67/IP69K enclosure ratings, this sensor is perfect for object detection and safety monitoring in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor WTB9-3P1261 | Background Suppression | IP66/IP67/IP69K Rated | Adjustable Sensing Range | by SICK
Brand: SICK
SKU: 1049044
Alternatively Known As: Photoelectric Proximity Sensor, Background Suppression Sensor, SICK Proximity Sensor, Industrial Object Sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range max.: 20 mm to 350 mm
- Type of light: Visible red light, wavelength 650 nm
- Light spot size: Ø 4.5 mm at 75 mm distance
- Adjustment: Potentiometer, 5 turns
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 0.333 ms
- Switching frequency: 1,500 Hz
- Connection type: 4-wire cable, 5 m length
- Cable material: Plastic, PVC
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Dimensions (H x L x W): 50mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light with PinPoint LED light source
- Adjustable sensing range from 20 mm to 350 mm
- Rectangular housing design with M3 mounting hole
- High switching frequency of 1,500 Hz
- Enclosure rating IP66, IP67, IP69K for harsh environments
- Operating temperature range from -40 °C to +60 °C
- Complementary PNP output with light/dark switching mode
Professional Installation Requirements
- Installation by a qualified electrician or trained technician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP69K rated housing minimizes waste by extending product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTB9-3P1261 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
