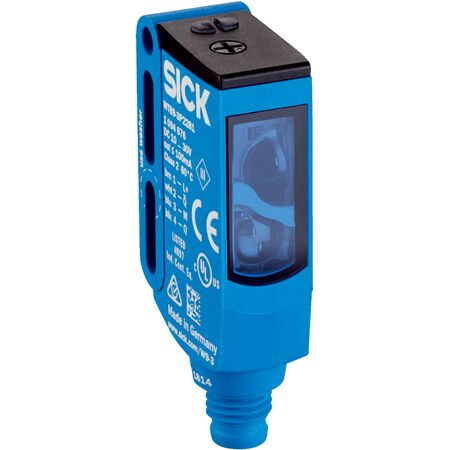

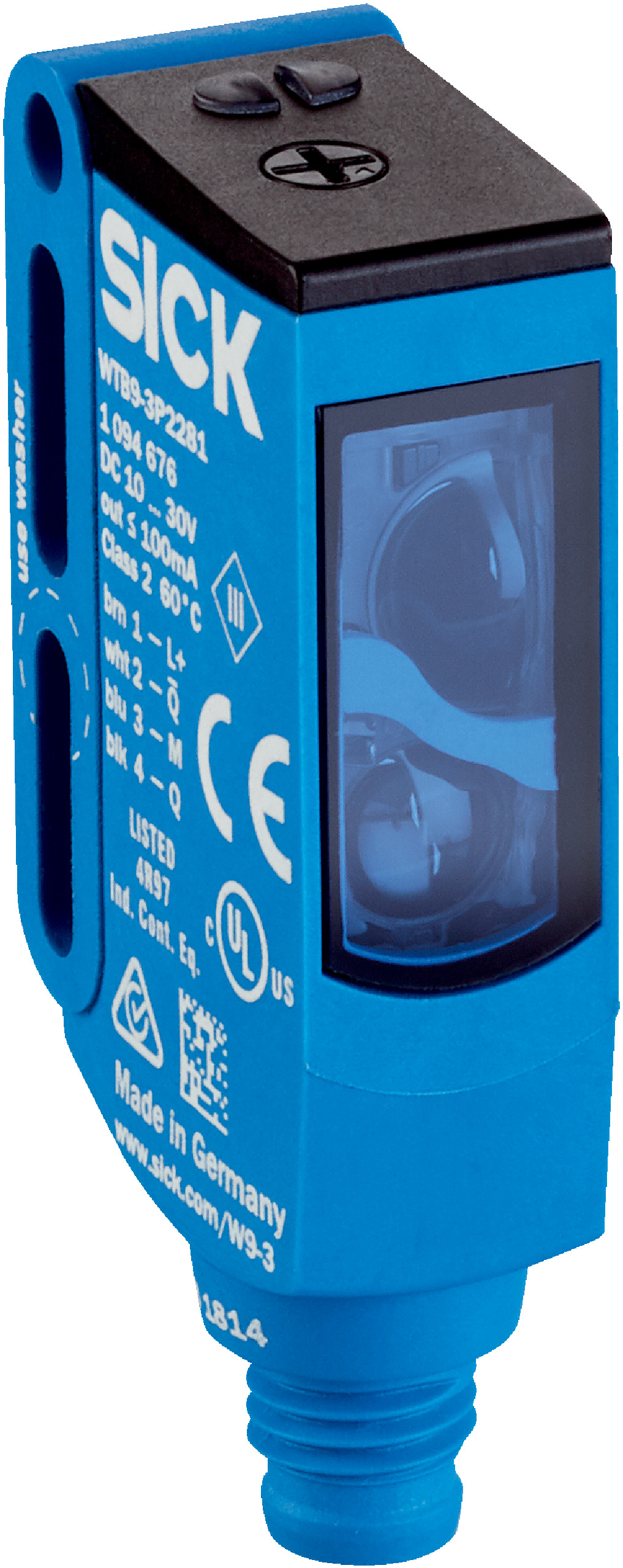

Photoelectric Proximity Sensor WTB9-3P2281 | Background Suppression | IP66/IP67/IP69K Rated | by SICK
The WTB9-3P2281 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation, featuring a sensing range of 20 mm to 170 mm and a high switching frequency of 1,500 Hz. With its robust IP66/IP67/IP69K rating and energy-efficient LED light source, this sensor is perfect for manufacturing process control and packaging systems, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range max.: 20 mm to 200 mm
- Sensing range typical: 20 mm to 170 mm
- Type of light: Visible blue light (450 nm wavelength)
- Light source: LED
- Light spot size at 75 mm distance: 3 mm x 3 mm
- Adjustment: Potentiometer, 5 turns
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Current consumption: 30 mA
- Switching output: PNP, complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 0.333 ms
- Switching frequency: 1,500 Hz
- Connection type: Male connector M8, 4-pin
- Circuit protection: Types A, B, C
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- UL File No.: NRKH.E181493
- Dimensions (H x L x W): 49.8mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with visible blue light emission
- Sensing range from 20 mm to 170 mm
- LED light source with 450 nm wavelength
- Potentiometer adjustment with 5 turns
- High switching frequency of 1,500 Hz
- IP66, IP67, and IP69K rated for robust protection
- Operating temperature range from -40 °C to +60 °C
- Plastic VISTAL® housing and PMMA optics material
Professional Installation Requirements
- Installation by a qualified electrician or trained technician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Robotics and safety systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP69K rated housing minimizes environmental damage and waste
- Long operational lifetime reduces replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB9-3P2281 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
