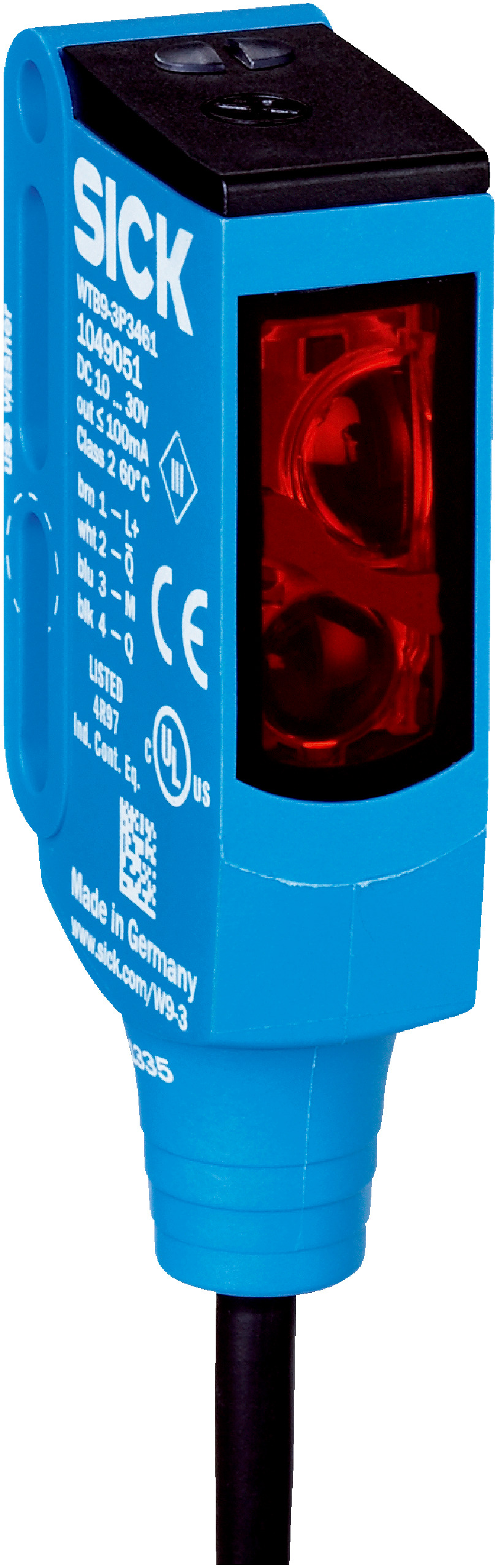

Photoelectric Proximity Sensor WTB9-3P3161 | Background Suppression | IP66/IP67/IP69K Rated | 1,500 Hz Switching Frequency | by SICK
The WTB9-3P3161 photoelectric proximity sensor is designed for industrial automation, featuring background suppression and a high switching frequency of 1,500 Hz. With a robust IP66/IP67/IP69K rated housing, it operates efficiently in temperatures from -40 °C to +60 °C, making it ideal for manufacturing process control and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor WTB9-3P3161 | Background Suppression | IP66/IP67/IP69K Rated | 1,500 Hz Switching Frequency | by SICK
Brand: SICK
SKU: 1052931
Alternatively Known As: Photoelectric sensor, Proximity sensor with background suppression, SICK proximity sensor, Industrial photo sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, light switching mode
- Maximum output current: ≤ 100 mA
- Response time: < 0.333 ms
- Switching frequency: 1,500 Hz
- Light wavelength: 650 nm
- Light spot size: Ø 4.5 mm at 75 mm distance
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Connection: Cable with M8, 3-pin connector, 120 mm length
- Circuit protection: Types A, B, C
- Dimensions (H x L x W): 50mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light with PinPoint LED light source
- Adjustable sensing range from 20 mm to 350 mm
- Potentiometer adjustment with 5 turns
- High switching frequency of 1,500 Hz
- Robust plastic housing with IP66, IP67, and IP69K protection ratings
- Wide ambient operating temperature range from -40 °C to +60 °C
- Cable with M8, 3-pin connector for easy connection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper sensor setup and electrical safety.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and monitoring in production lines
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB9-3P3161 photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
