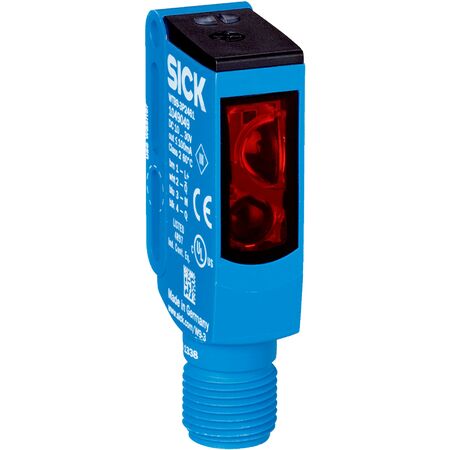

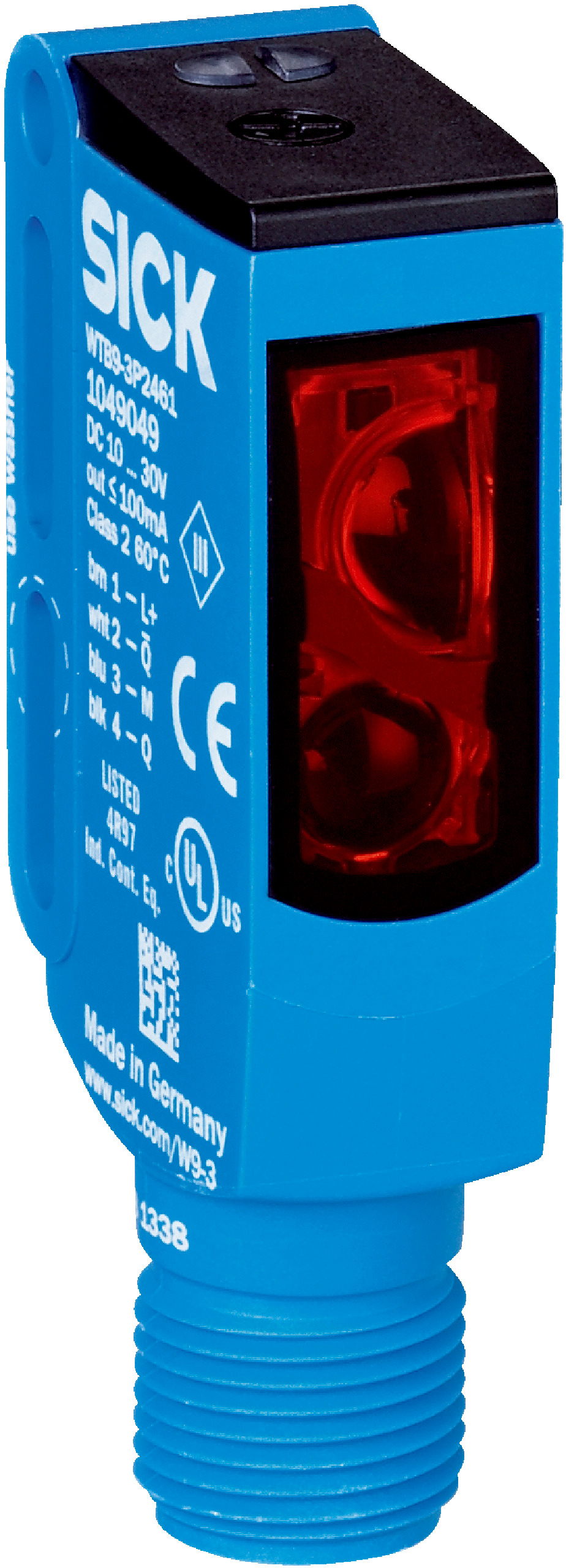

Photoelectric Proximity Sensor WTB9-3P3411S14 | Background Suppression | IP66/IP67/IP69K Rated | by SICK
The WTB9-3P3411S14 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 20 mm to 800 mm and background suppression technology. With a robust IP66/IP67/IP69K rating, it ensures reliable performance in harsh environments, making it ideal for manufacturing process control and safety monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor WTB9-3P3411S14 | Background Suppression | IP66/IP67/IP69K Rated | by SICK
Brand: SICK
SKU: 1054194
Alternatively Known As: Photoelectric sensor, Proximity sensor with background suppression, Infrared proximity sensor, Industrial object sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range max.: 20 mm to 800 mm
- Type of light: Infrared light, LED
- Light spot size at 400 mm: Ø 40 mm
- Wave length: 850 nm
- Adjustment: Potentiometer, 5 turns
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 2.5 ms
- Switching frequency: 200 Hz
- Connection type: Cable with M12 male connector, 4-pin, 120 mm
- Cable material: Plastic, PVC
- Conductor cross section: 0.14 mm²
- Circuit protection: Types A, B, C
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Ambient operating temperature: -40 °C to +60 °C
- Ambient storage temperature: -40 °C to +75 °C
- Dimensions (H x L x W): 52.2mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with M3 mounting hole
- Sensing range from 20 mm to 800 mm
- Infrared LED light source with 850 nm wavelength
- Potentiometer adjustment with 5 turns
- High switching frequency of 200 Hz
- Light/dark switching output with complementary PNP output
- Robust plastic VISTAL® housing and PMMA optics
- Protection rating IP66, IP67, IP69K for harsh environments
- Wide ambient operating temperature range from -40 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable housing materials extend product lifespan, reducing waste
- High reliability minimizes downtime and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB9-3P3411S14 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
