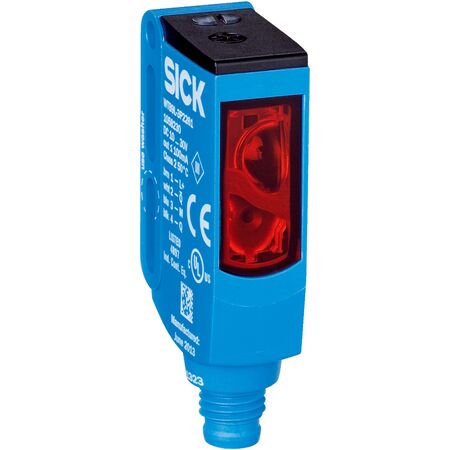

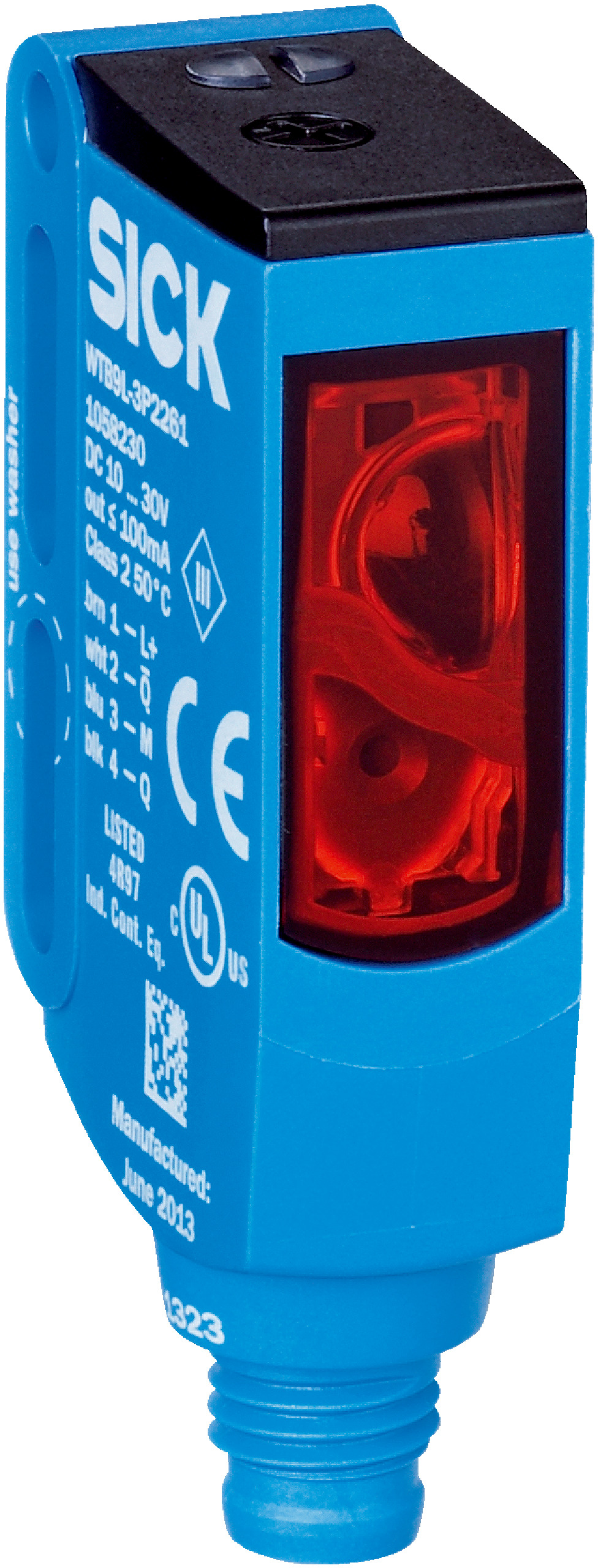

Photoelectric Proximity Sensor WTB9L-3N2291 | IP66/IP67/IP69K Rated | 500 Hz Switching Frequency | by SICK
The WTB9L-3N2291 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 25 mm to 400 mm and a high switching frequency of 500 Hz. With robust IP66/IP67/IP69K enclosure ratings, it ensures reliable performance in harsh environments, making it ideal for manufacturing process control and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: NPN, complementary
- Output current max: ≤ 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- Connection type: Male connector M8, 4-pin
- Protection class: III
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -10 °C to +50 °C (standard), -30 °C to +55 °C (extended)
- Storage temperature: -30 °C to +70 °C
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Laser class: 2 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11)
- Light spot size: Ø 0.9 mm at 230 mm distance
- Sensing range: 25 mm to 400 mm
- Dimensions (H x L x W): 49.8mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red laser light source with 650 nm wavelength
- Sensing range from 25 mm to 400 mm
- Rectangular housing design with M3 mounting hole
- Potentiometer adjustment with 5 turns
- High switching frequency of 500 Hz and response time ≤ 1 ms
- Enclosure rating IP66, IP67, and IP69K for robust protection
- Operating temperature range from -30 °C to +55 °C (extended)
- Light/dark switching output with complementary NPN output
- Circuit protection and protection class III
- Light spot size Ø 0.9 mm at 230 mm distance
- Laser class 2 compliant with IEC 60825-1 standards
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and electrical sensor integration to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for detecting small objects
- Manufacturing process control
- Material handling and packaging systems
- Robotics and assembly lines requiring precise object detection
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient operation with low current consumption of 30 mA
- Durable housing materials (VISTAL® plastic) reduce waste and extend product life
- High reliability reduces replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB9L-3N2291 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
