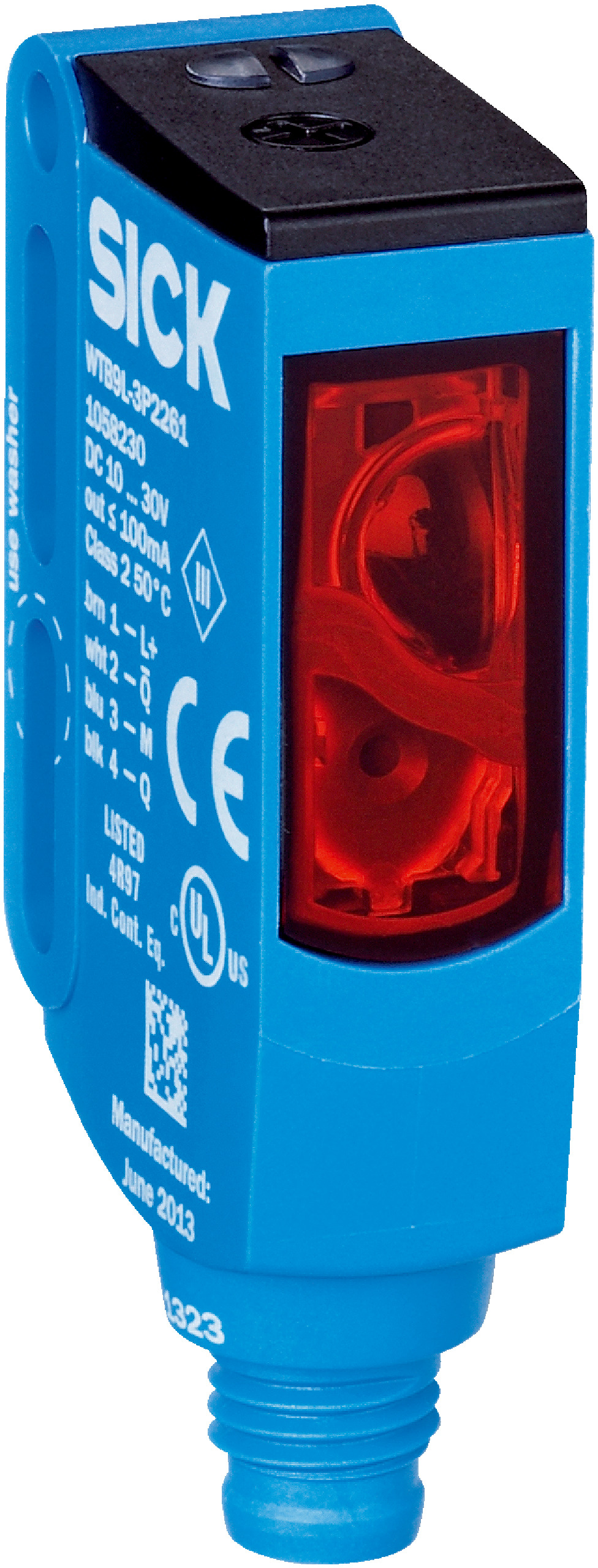

Photoelectric Proximity Sensor WTB9L-3P2261 | 25mm to 300mm Sensing Range | IP66/IP67/IP69K Rated | by SICK
The WTB9L-3P2261 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 25 mm to 300 mm and a visible red laser light source. With a high switching frequency of 1,000 Hz and an IP66/IP67/IP69K protection rating, this sensor is perfect for precise object detection in harsh environments, ensuring reliable performance in manufacturing and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 25 mm to 300 mm
- Light source: Visible red laser, 650 nm wavelength
- Light spot size: Ø 1 mm at 170 mm distance
- Laser class: Class 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11)
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Male connector M8, 4-pin
- Circuit protection: Types A, B, C
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -10 °C to +50 °C (standard), -30 °C to +55 °C (extended)
- Storage temperature: -30 °C to +70 °C
- Dimensions (H x L x W): 49.8mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red laser light source with 650 nm wavelength
- Sensing range from 25 mm to 300 mm
- Compact rectangular housing design with M3 mounting hole
- Potentiometer adjustment with 5 turns for sensitivity tuning
- High switching frequency of 1,000 Hz and fast response time ≤ 0.5 ms
- Protection rating IP66, IP67, and IP69K for harsh environments
- Light/dark switching mode with complementary PNP output
- Circuit protection and protection class III
- Operating temperature range from -30 °C to +55 °C (extended)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for detecting small objects
- Manufacturing process control
- Material handling and packaging systems
- Robotics and assembly lines requiring precise object detection
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient sensor operation reduces power consumption in automation systems
- Durable IP66/IP67/IP69K rated housing minimizes waste by extending product lifespan
Warranty Information
Warranty details available upon request from the manufacturer or authorized distributor.
Available Now
The SICK WTB9L-3P2261 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
