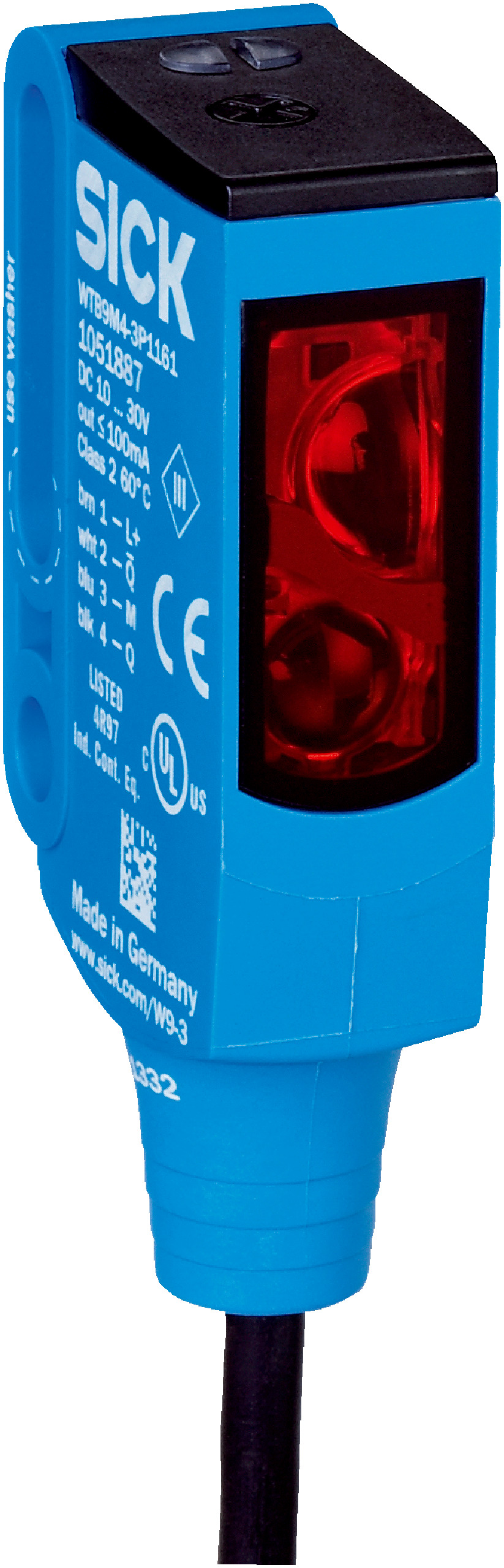

Photoelectric Proximity Sensor WTB9M4-3N1161 | Background Suppression | IP66/IP67/IP69K Rated | Adjustable Sensing Range | by SICK
The WTB9M4-3N1161 Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and an adjustable sensing range from 20 mm to 350 mm. With a high switching frequency of 1,500 Hz and robust IP66/IP67/IP69K protection, this sensor is perfect for object detection in manufacturing and material handling applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor WTB9M4-3N1161 | Background Suppression | IP66/IP67/IP69K Rated | Adjustable Sensing Range | by SICK
Brand: SICK
SKU: 1051882
Alternatively Known As: Photoelectric Proximity Sensor, Background Suppression Sensor, SICK Proximity Sensor, Industrial Object Sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range max.: 20 mm to 350 mm
- Type of light: Visible red light, wavelength 650 nm
- Light source: PinPoint LED
- Light spot size: Ø 4.5 mm at 75 mm distance
- Adjustment: Potentiometer, 5 turns
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: NPN, complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 0.333 ms
- Switching frequency: 1,500 Hz
- Connection type: 4-wire cable, 2 m length
- Cable material: Plastic, PVC
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Ambient operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Circuit protection: Types A, B, C
- Weight: 80 g
- Dimensions (H x L x W): 50mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light with PinPoint LED
- Adjustable sensing range from 20 mm to 350 mm
- Rectangular housing with M4 mounting hole
- High switching frequency of 1,500 Hz
- Robust plastic housing with IP66, IP67, and IP69K protection ratings
- Wide ambient operating temperature range from -40 °C to +60 °C
- Light/dark switching mode with complementary NPN output
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable housing minimizes waste through extended product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTB9M4-3N1161 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
