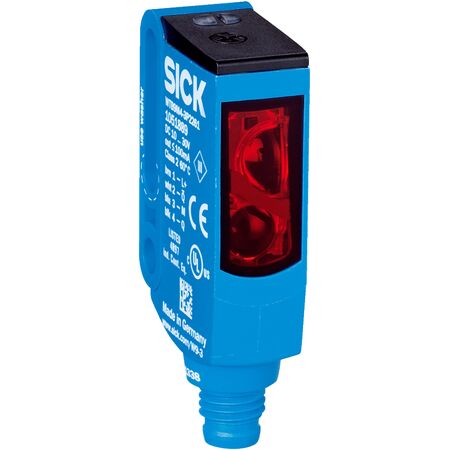

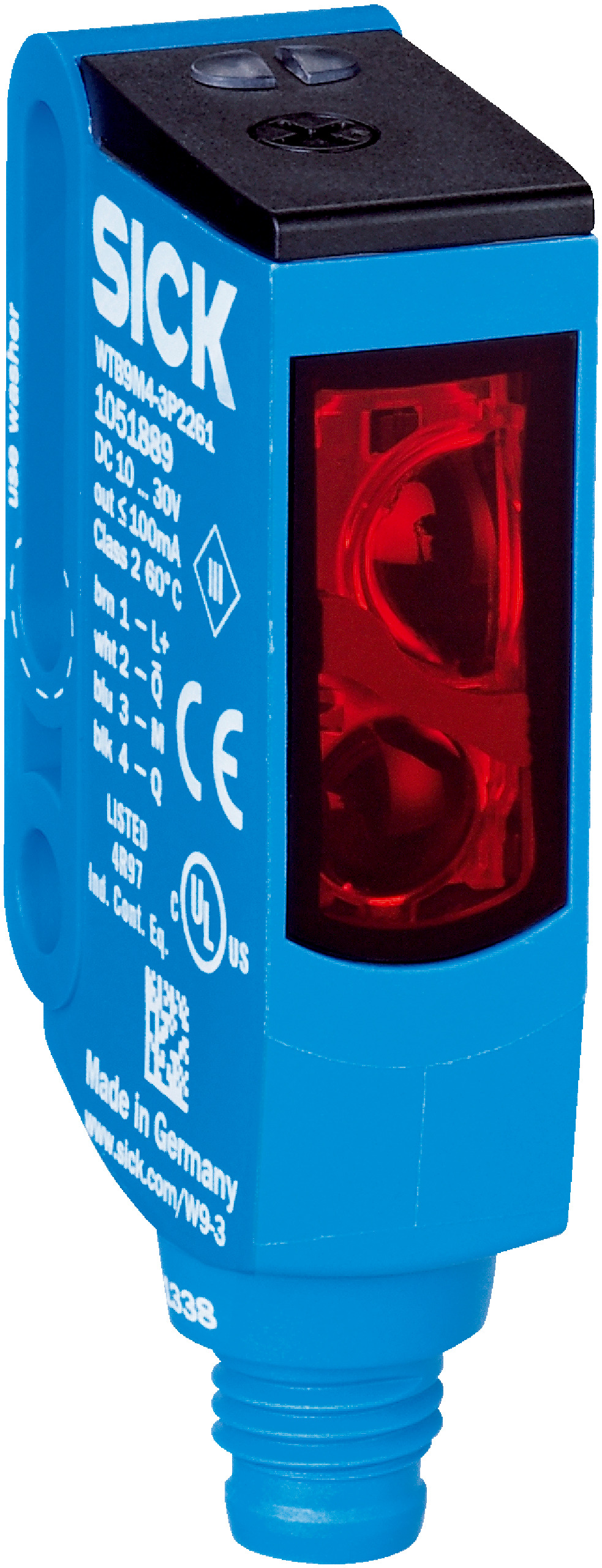

Photoelectric Proximity Sensor WTB9M4-3P2211 | Background Suppression | Infrared LED | IP66/IP67/IP69K Rated | by SICK
The WTB9M4-3P2211 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 20 mm to 500 mm and background suppression technology. With an infrared LED light source and a high switching frequency of 1,000 Hz, this sensor ensures reliable object detection and safety monitoring in harsh environments, making it ideal for manufacturing and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor WTB9M4-3P2211 | Background Suppression | Infrared LED | IP66/IP67/IP69K Rated | by SICK
Brand: SICK
SKU: 1051888
Alternatively Known As: Photoelectric Proximity Sensor, Background Suppression Sensor, Infrared Proximity Sensor, Industrial Proximity Sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range max.: 20 mm to 500 mm
- Type of light: Infrared LED at 850 nm wavelength
- Adjustment: Potentiometer with 5 turns
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Male M8, 4-pin connector
- Circuit protection: Types A, B, C
- Protection class: III
- Housing material: Plastic VISTAL®
- Optics material: Plastic PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Weight: 13 g
- Dimensions (H x L x W): 49.8mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with M4 mounting hole
- Sensing range from 20 mm to 500 mm
- Infrared LED light source with 850 nm wavelength
- Potentiometer adjustment with 5 turns
- High switching frequency of 1,000 Hz
- IP66, IP67, and IP69K rated for harsh environments
- Operating temperature range from -40 °C to +60 °C
- Light/dark switching output with PNP complementary output
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP69K rated housing minimizes waste through extended product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WTB9M4-3P2211 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
