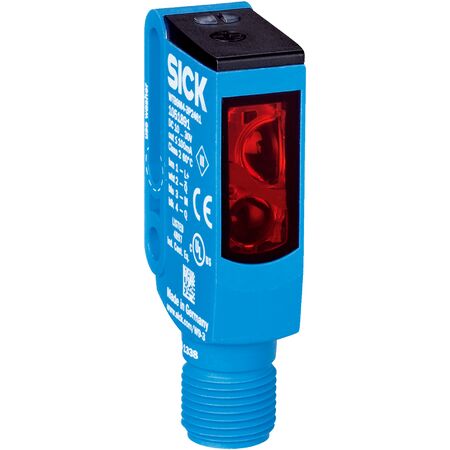

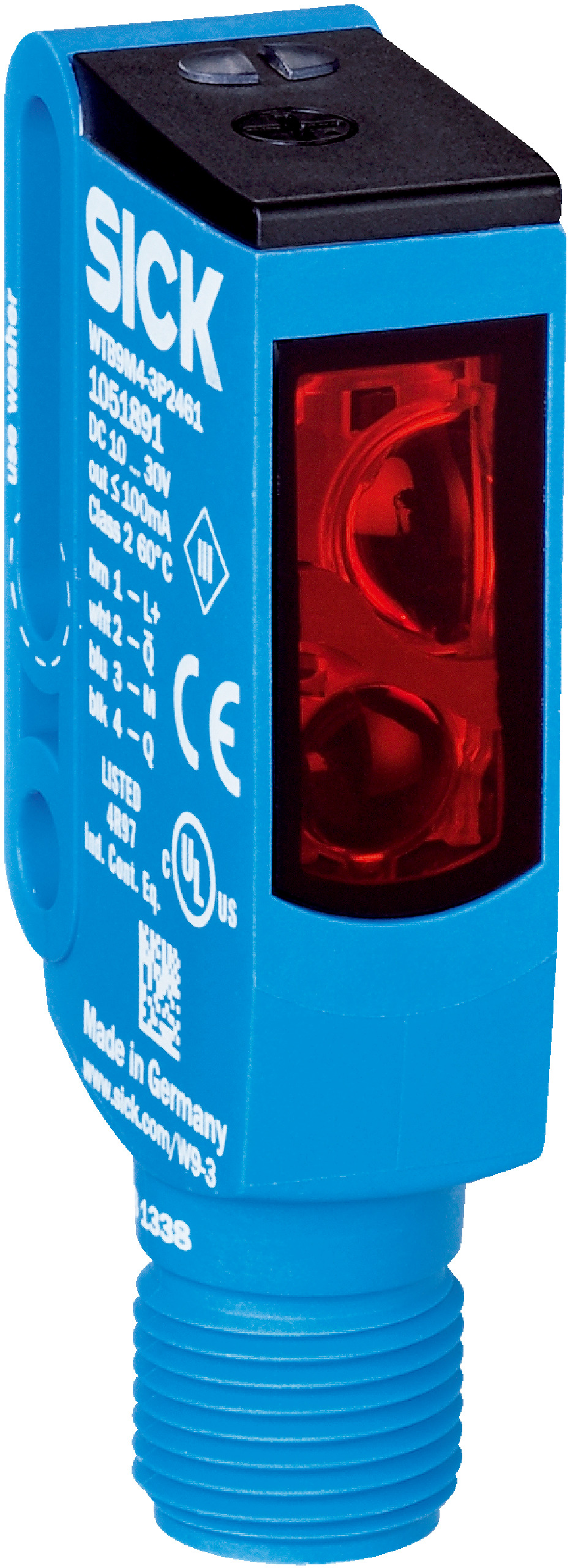

Photoelectric Proximity Sensor WTB9M4-3P2411 | Background Suppression | IP66/IP67/IP69K Rated | by SICK
The WTB9M4-3P2411 Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and a sensing range of 20 mm to 500 mm. With an IP66/IP67/IP69K rating, it ensures robust protection in harsh environments, making it ideal for manufacturing process control and safety monitoring in machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor WTB9M4-3P2411 | Background Suppression | IP66/IP67/IP69K Rated | by SICK
Brand: SICK
SKU: 1051890
Alternatively Known As: Photoelectric sensor, Proximity sensor with background suppression, Infrared proximity sensor, Industrial object sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, complementary function
- Switching mode: Light/dark switching
- Maximum output current: ≤ 100 mA
- Response time: < 0.5 ms
- Connection type: Male connector M12, 4-pin
- Circuit protection: Types A, B, and C
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Light spot size at 250 mm: Ø 20 mm
- Wave length: 850 nm
- Adjustment: Potentiometer, 5 turns
- Dimensions (H x L x W): 52.2mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with M4 mounting hole
- Sensing range from 20 mm to 500 mm
- Infrared LED light source with 850 nm wavelength
- Potentiometer adjustment with 5 turns
- High switching frequency of 1,000 Hz
- IP66, IP67, and IP69K rated for robust protection
- Operating temperature range from -40 °C to +60 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP69K rated housing minimizes environmental damage and waste
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The SICK WTB9M4-3P2411 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
