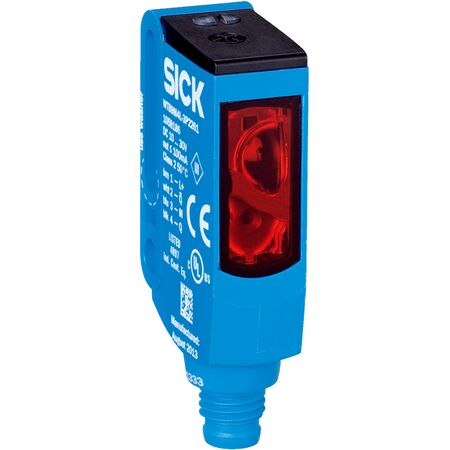

Photoelectric Proximity Sensor WTB9M4L-3P2291 | Background Suppression | IP66/IP67/IP69K Rated | 500 Hz Switching Frequency | by SICK
The WTB9M4L-3P2291 Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and a high switching frequency of 500 Hz. With an IP66/IP67/IP69K rating, it ensures robust protection in harsh environments, making it ideal for detecting small objects in manufacturing and quality control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- Connection type: Male connector M8, 4-pin
- Circuit protection: Types A, B, C
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -10 °C to +50 °C (standard), -30 °C to +55 °C (extended)
- Storage temperature: -30 °C to +70 °C
- Laser class: 2 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11)
- Light spot size: Ø 0.9 mm at 230 mm distance
- Dimensions (H x L x W): 49.8mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red laser light source with 650 nm wavelength
- Sensing range from 25 mm to 400 mm
- Rectangular housing design with M4 mounting hole
- Potentiometer adjustment with 5 turns
- High switching frequency of 500 Hz
- IP66, IP67, and IP69K rated for robust protection
- Operating temperature range from -30 °C to +55 °C (extended)
- Light/dark switching mode with complementary PNP output
- Laser class 2 certified (IEC 60825-1)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and electrical connection standards to ensure compliance and optimal sensor performance.
Applications
- Industrial automation for detecting small objects
- Manufacturing process control
- Material handling and packaging systems
- Quality control and inspection systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable IP66/IP67/IP69K rated housing reduces waste by extending product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The SICK WTB9M4L-3P2291 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
