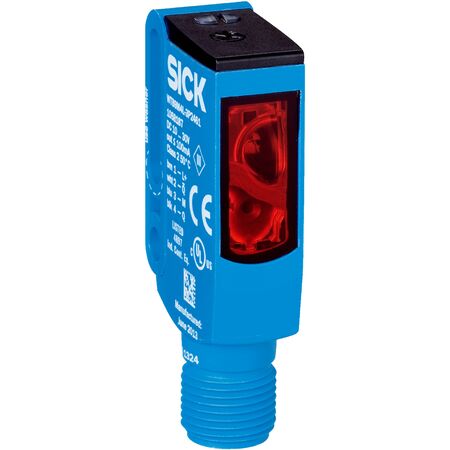

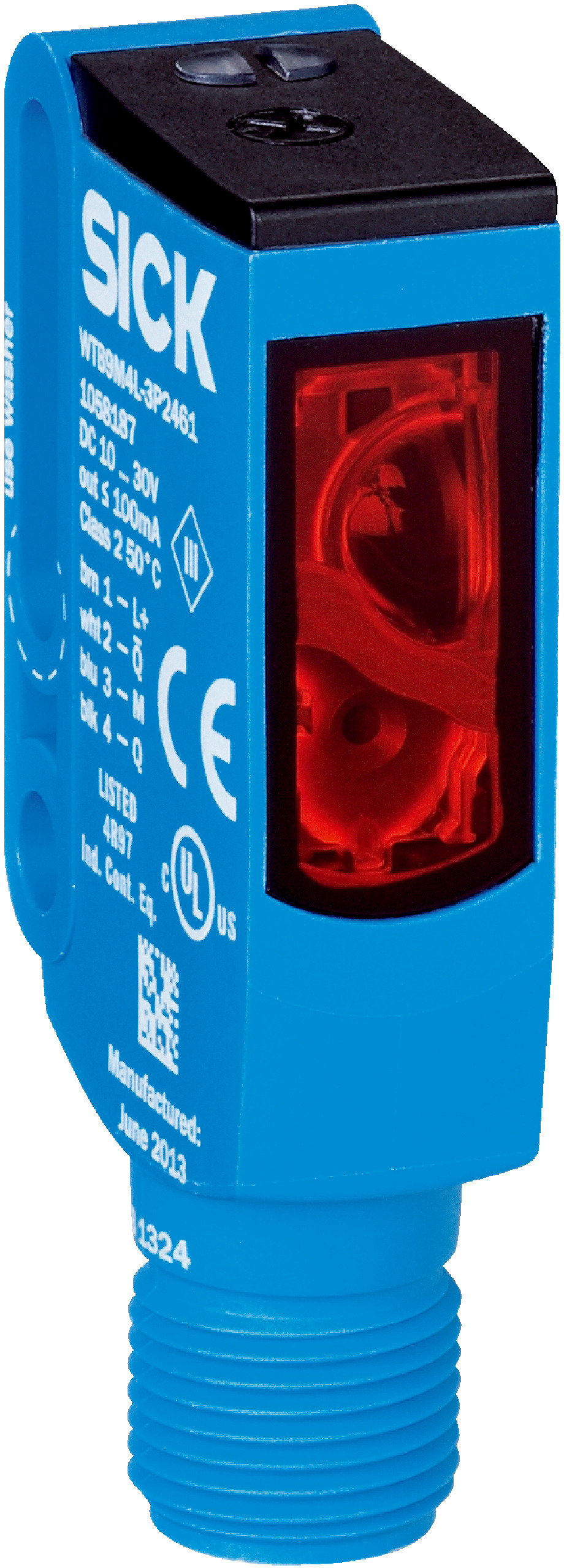

Photoelectric Proximity Sensor WTB9M4L-3P2461 | Background Suppression | IP66/IP67/IP69K Rated | 1,000 Hz Switching Frequency | by SICK
The WTB9M4L-3P2461 Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and a high switching frequency of 1,000 Hz. With an IP66/IP67/IP69K rating, it excels in harsh environments, making it ideal for detecting small objects in machine safety and control systems. Its durable design ensures longevity while maintaining low power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Male M12, 4-pin connector
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -10 °C to +50 °C (standard), -30 °C to +55 °C (extended)
- Storage temperature: -30 °C to +70 °C
- Laser wavelength: 650 nm
- Light spot size: Ø 1 mm at 170 mm distance
- Laser class: 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11)
- Dimensions (H x L x W): 52.2mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with visible red laser light
- Sensing range from 25 mm to 300 mm
- Laser class 1 safety compliant
- Potentiometer adjustment with 5 turns
- High switching frequency of 1,000 Hz
- IP66, IP67, and IP69K rated for harsh environments
- Operating temperature range from -30 °C to +55 °C (extended)
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with photoelectric sensor wiring and safety standards.
Applications
- Industrial automation for detecting small objects
- Machine safety and control systems
- Material handling and packaging lines
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable IP69K rated housing reduces waste by extending product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB9M4L-3P2461 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
