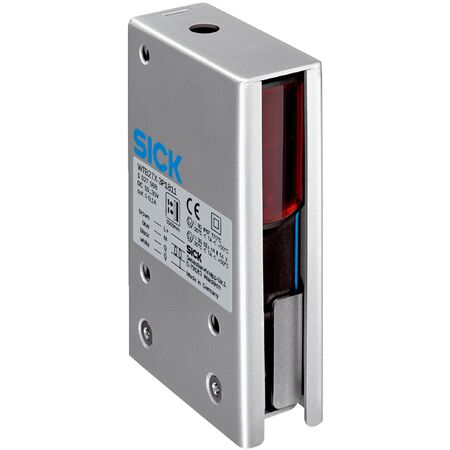

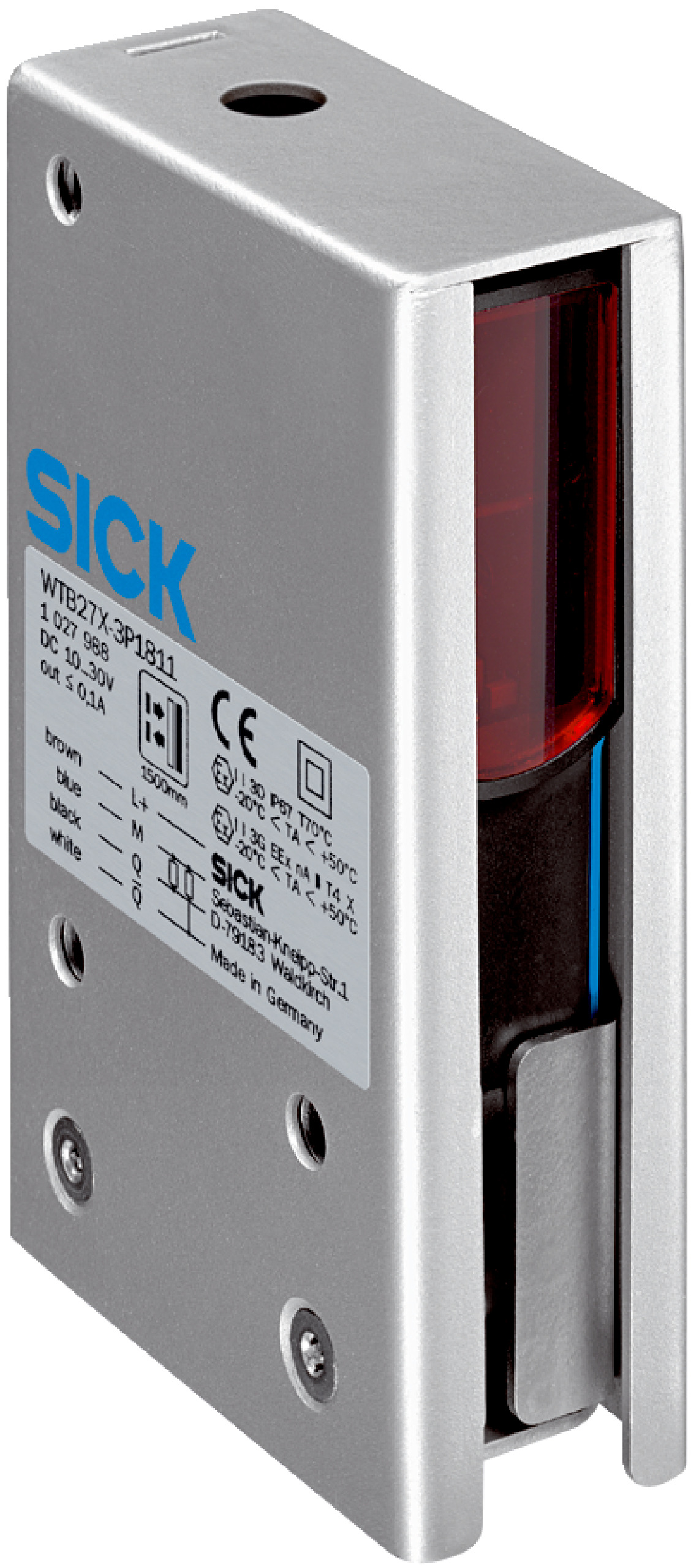

Photoelectric Proximity Sensor WTE27X-3P1861 | IP67 Rated | ATEX Certified | Fast Response Time | by SICK
The WTE27X-3P1861 Photoelectric Proximity Sensor is designed for industrial automation, featuring a robust IP67-rated housing and ATEX certification for explosive environments. With a fast response time of ≤ 1.5 ms and a sensing range of 10 mm to 300 mm, it ensures reliable object detection in critical applications. Ideal for machine safety and control systems, this sensor combines durability with energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 35 mA
- Switching output: PNP, complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 1.5 ms
- Switching frequency: 350 Hz
- Connection type: 4-wire cable, 10 m length
- Cable material: Plastic, PVC
- Circuit protection: Types A, B, C
- Protection class: II
- Housing material: Stainless steel V2A (1.4301) and ABS plastic
- Optics material: PMMA plastic
- Enclosure rating: IP67
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- ATEX marking: II 3G Ex nA op is IIB T4 Gc X, II 3D Ex tc IIIB T135°C Dc X
- Dimensions (H x L x W): 112.3mm x 70.4mm x 31.4mm
- Weight: 0.75 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Rectangular housing design with visible red light emission
- Sensing range from 10 mm to 300 mm
- PinPoint LED light source with 15 mm light spot size at 400 mm distance
- Potentiometer adjustment for sensitivity
- Suitable for explosive areas with ATEX II 3G and 3D certification
- High switching frequency of 350 Hz and fast response time ≤ 1.5 ms
- Robust metal and plastic housing with IP67 enclosure rating
Professional Installation Requirements
- Installation by qualified personnel is required, especially for use in explosive atmospheres to ensure compliance with safety standards.
Applications
- Industrial automation for object detection
- Explosive area sensing applications
- Machine safety and control systems
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable stainless steel and ABS housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WTE27X-3P1861 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and hazardous area sensing applications.
