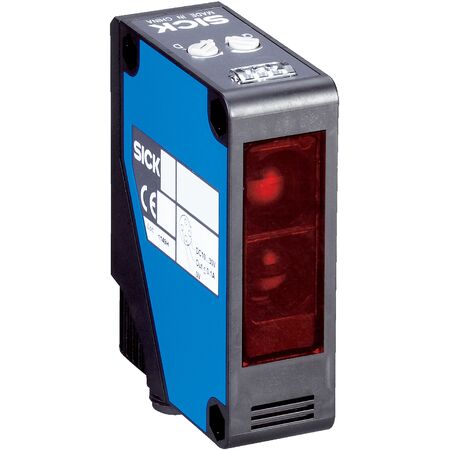

Photoelectric Proximity Sensor WTE280-2R1531 | 10mm to 1500mm Sensing Range | IP66 & IP67 Rated | by SICK
The WTE280-2R1531 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range from 10 mm to 1,500 mm and a robust IP66/IP67 enclosure rating. With a relay switching output and high switching frequency of 33 Hz, it ensures reliable object detection and safety monitoring in manufacturing processes. Ideal for material handling and conveyor systems, this sensor is built for durability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor (energetic)
- Sensing range: 10 mm to 1,500 mm (max 2,000 mm)
- Light source: LED with visible red light
- Light spot size: Ø 45 mm at 1,500 mm
- Supply voltage: 24 V DC/AC to 240 V DC/AC
- Power consumption: ≤ 5 VA
- Switching output: Relay, electrically isolated, change-over contacts
- Switching current: 3 A at 240 V AC or 30 V DC
- Response time: ≤ 15 ms
- Switching frequency: 33 Hz
- Connection: 5-wire cable, 2 m, PVC insulated
- Protection class: II
- Enclosure rating: IP66, IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- EMC compliance: EN 60947-5-2, EN 61000-6-3
- Safety certifications: EU, UK, ACMA, Moroccan, China-RoHS, CCC, cRUus
- Dimensions (H x L x W): 75mm x 63mm x 24mm
- Weight: 0.15 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Rectangular housing design with visible red light
- Adjustable sensing range via potentiometer
- Relay switching output with change-over contacts
- High switching frequency of 33 Hz
- Protection class II with IP66 and IP67 enclosure rating
- Wide supply voltage range from 24 V DC/AC to 240 V DC/AC
- Mounting bracket BEF-W280 included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of ≤ 5 VA reduces energy usage
- Durable housing materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK WTE280-2R1531 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
