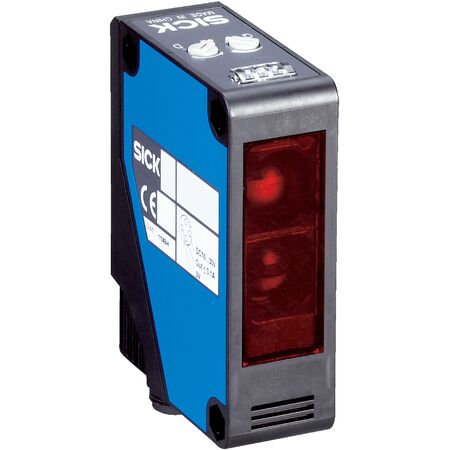

Photoelectric Proximity Sensor WTE280-2H1531 | Adjustable Sensing Range | IP66 & IP67 Rated | by SICK
The WTE280-2H1531 Photoelectric Proximity Sensor is designed for industrial automation, featuring an adjustable sensing range from 10 mm to 1500 mm and robust IP66/IP67 protection for harsh environments. With a high switching frequency of 33 Hz and a quick response time of ≤ 15 ms, this sensor is perfect for safety monitoring and object detection in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor (energetic)
- Sensing range max.: 10 mm to 2000 mm
- Sensing range adjustable: 10 mm to 1500 mm
- Light source: LED visible red light
- Light spot size: Ø 45 mm at 1500 mm
- Supply voltage: 24 V DC to 240 V DC, 24 V AC to 240 V AC
- Power consumption: ≤ 5 VA
- Switching output: Relay, electrically isolated, change-over contacts
- Switching current: 3 A at 240 V AC, 3 A at 30 V DC
- Response time: ≤ 15 ms
- Switching frequency: 33 Hz
- Connection: 5-wire cable, 2 m, PVC insulation
- Protection class: II
- Overvoltage category: 2
- Housing material: Plastic ABS, optics PMMA
- Enclosure rating: IP66, IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 75mm x 63mm x 24mm
- Weight: 0.15 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Rectangular housing design with visible red light emission
- Adjustable sensing range from 10 mm to 1500 mm via potentiometer
- LED light source with a light spot size of Ø 45 mm at 1500 mm
- Relay switching output with change-over contacts
- High switching frequency of 33 Hz and response time ≤ 15 ms
- Robust plastic ABS housing with PMMA optics
- Protection rating IP66 and IP67 for harsh environments
- Wide supply voltage range from 24 V DC/AC to 240 V DC/AC
- Includes mounting bracket BEF-W280
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of ≤ 5 VA reduces energy usage
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK WTE280-2H1531 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
