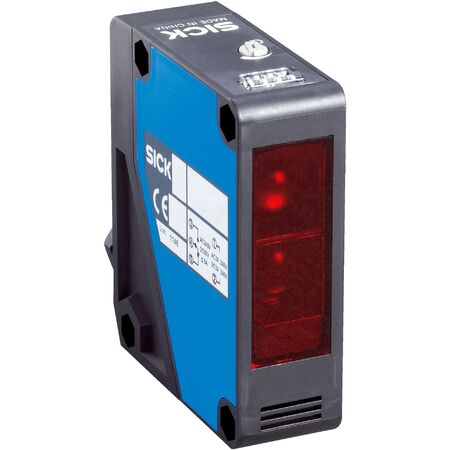

Photoelectric Proximity Sensor WTE280-2H4331 | 10mm to 2000mm Sensing Range | IP66 & IP67 Rated | by SICK
The WTE280-2H4331 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range from 10 mm to 2000 mm and a robust IP66/IP67 enclosure. With a high switching frequency of 33 Hz and a quick response time of ≤ 15 ms, it's perfect for safety monitoring and object detection in manufacturing processes. Built to withstand harsh environments, this sensor ensures reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor (energetic)
- Sensing range max.: 10 mm to 2000 mm
- Light source: LED visible red light
- Light spot size at 1500 mm: Ø 45 mm
- Supply voltage: 24 V DC to 240 V DC, 24 V AC to 240 V AC
- Power consumption: ≤ 5 VA
- Switching output: Relay, electrically isolated, change-over contacts
- Switching current: 3 A at 240 V AC, 3 A at 30 V DC
- Response time: ≤ 15 ms
- Switching frequency: 33 Hz
- Connection type: Cable gland
- Circuit protection: A and C types
- Protection class: II
- Overvoltage category: 2
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Enclosure rating: IP66, IP67
- Usage category: AC-15, DC-13 according to EN 60947-1
- Electromagnetic compatibility: EN 60947-5-2, EN 61000-6-3
- Ambient operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- MTTFD: 1,548 years
- Dimensions (H x L x W): 75mm x 63mm x 24mm
- Weight: 0.15 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Rectangular housing design with visible red LED light source
- Adjustable sensing range via potentiometer
- Sensing range from 10 mm up to 1500 mm
- Relay switching output with change-over contacts
- High switching frequency of 33 Hz and response time ≤ 15 ms
- Robust plastic ABS housing with IP66 and IP67 enclosure rating
- Wide supply voltage range from 24 V DC/AC up to 240 V DC/AC
- Includes mounting bracket BEF-W280
- Operating temperature range from -25 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption of ≤ 5 VA reduces energy usage
- Durable housing materials extend product lifespan, reducing waste
- Complies with China-RoHS for restricted hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTE280-2H4331 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
