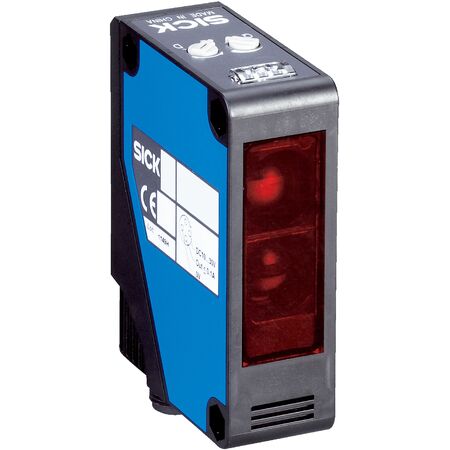

Photoelectric Proximity Sensor WTE280-2N2431 | Adjustable Sensing Range | IP66 & IP67 Rated | Fast Response Time | by SICK
The WTE280-2N2431 Photoelectric Proximity Sensor is designed for industrial automation, featuring an adjustable sensing range from 10 mm to 1500 mm and a fast response time of ≤ 0.5 ms. With a robust IP66 and IP67 enclosure rating, this sensor is perfect for object detection and safety monitoring in manufacturing and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor (energetic)
- Sensing range: 10 mm to 1500 mm adjustable
- Light source: Visible red LED
- Light spot size: Ø 45 mm at 1500 mm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: NPN, max output current ≤ 100 mA
- Switching mode: Light/dark selectable via rotary switch
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Male M12, 4-pin connector
- Protection class: III
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Enclosure rating: IP66, IP67
- Ambient operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- EMC compliance: EN 60947-5-2
- Includes mounting bracket BEF-W280
- Dimensions (H x L x W): 75mm x 63mm x 24mm
- Weight: 0.15 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Rectangular housing design with visible red LED light source
- Adjustable sensing range via potentiometer from 10 mm to 1500 mm
- High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
- NPN switching output with selectable light/dark switching mode
- Robust plastic ABS housing with IP66 and IP67 enclosure rating
- Includes mounting bracket BEF-W280
- Wide ambient operating temperature range from -25 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTE280-2N2431 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
