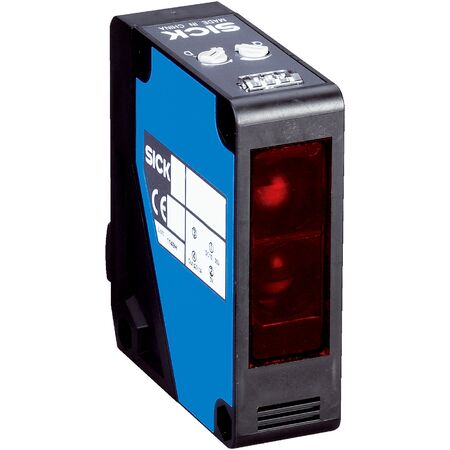

Photoelectric Proximity Sensor WTE280-2N4331 | IP66 & IP67 Rated | Fast Response Time | NPN Output | by SICK
The WTE280-2N4331 Photoelectric Proximity Sensor is designed for industrial automation, featuring a robust ABS housing and IP66/IP67 protection for harsh environments. With a fast response time of ≤ 0.5 ms and a high switching frequency of 1000 Hz, it’s perfect for object detection and safety monitoring in manufacturing processes. This sensor also offers adjustable sensing range and light/dark selectable switching mode, making it versatile for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: NPN
- Switching mode: Light/dark selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Cable gland
- Circuit protection: Types A, B, C, D
- Protection class: III
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67
- Ambient operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- EMC compliance: EN 60947-5-2
- Photobiological safety certified (DIN EN 62471)
- Dimensions (H x L x W): 75mm x 63mm x 24mm
- Weight: 0.15 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Rectangular housing design with visible red LED light source
- Adjustable sensing range via potentiometer
- Sensing range from 10 mm to 1500 mm, max 2000 mm
- High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
- NPN switching output with selectable light/dark switching mode
- Robust plastic ABS housing with PMMA optics
- Protection rating IP66 and IP67 for harsh environments
- Includes mounting bracket BEF-W280
- Wide ambient operating temperature range from -25 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTE280-2N4331 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
