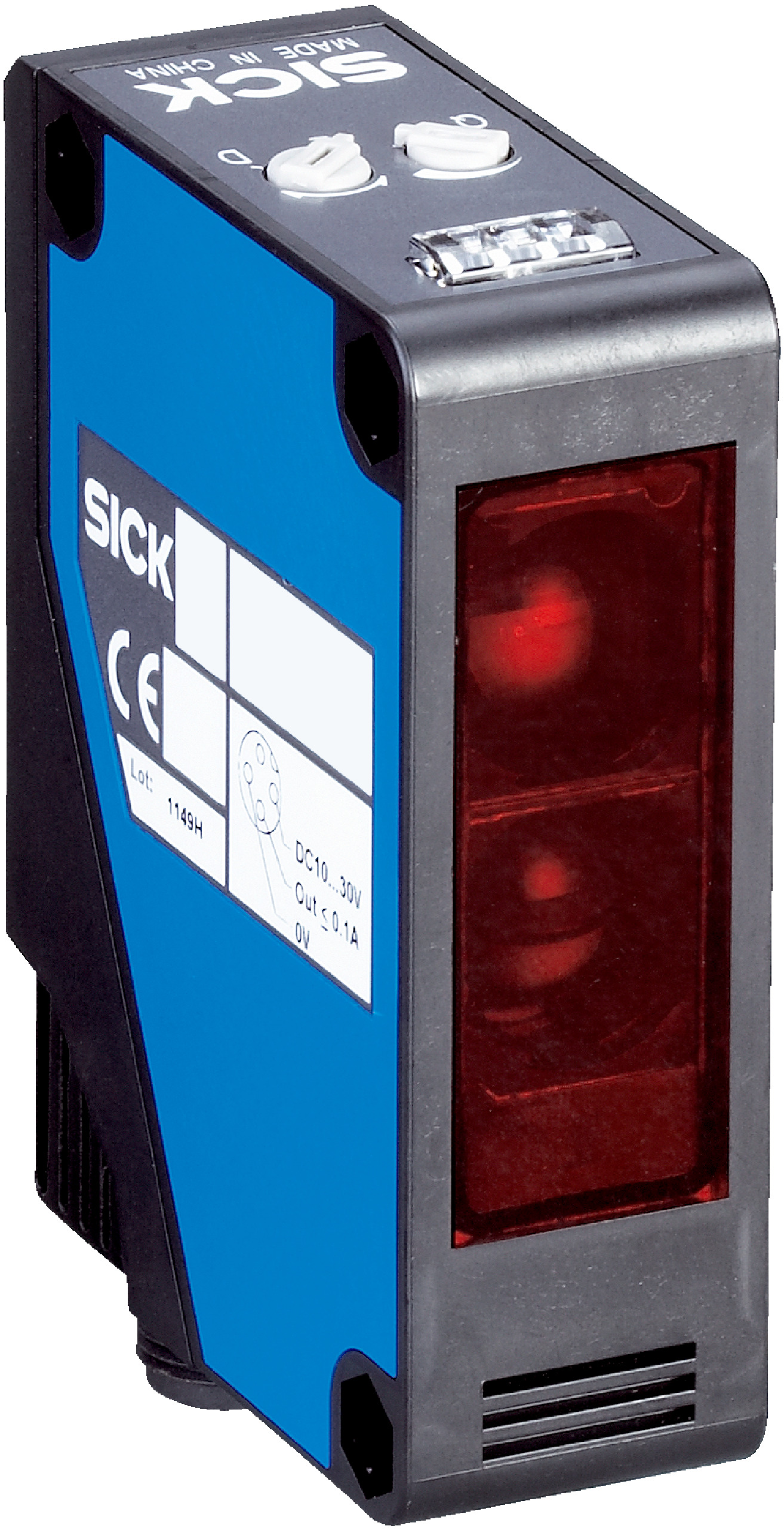

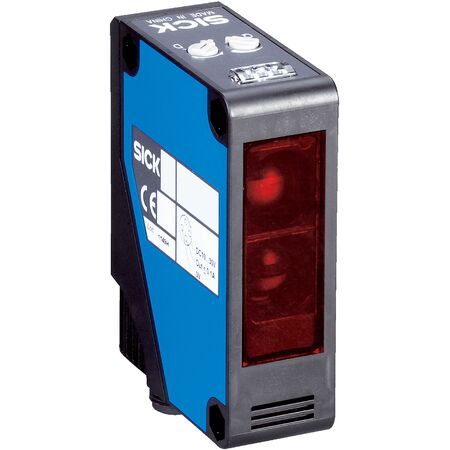

Photoelectric Proximity Sensor WTE280-2P2431 | 10mm to 2000mm Sensing Range | IP66 & IP67 Rated | by SICK
The WTE280-2P2431 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 10mm to 2000mm and a fast response time of ≤ 0.5 ms. With its robust IP66 and IP67 rated housing and visible red LED light source, this sensor is perfect for object detection and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor (energetic)
- Sensing range max.: 10 mm to 2,000 mm
- Sensing range: 10 mm to 1,500 mm
- Light source: LED with visible red light
- Light spot size at 1,500 mm: Ø 45 mm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP
- Switching mode: Light/dark selectable via rotary switch
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Male M12, 4-pin connector
- Circuit protection: Types A, B, C, D
- Protection class: III
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Enclosure rating: IP66, IP67
- Ambient operating temperature: –25 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 75mm x 63mm x 24mm
- Weight: 0.15 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Rectangular housing design with visible red LED light source
- Adjustable sensing range via potentiometer
- High switching frequency of 1,000 Hz and fast response time ≤ 0.5 ms
- Robust plastic ABS housing with IP66 and IP67 enclosure rating
- Selectable light/dark switching mode with PNP output
- Male M12 4-pin connector for easy installation
- Wide operating temperature range from –25 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Position sensing in conveyor systems
- Material handling and packaging lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WTE280-2P2431 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
