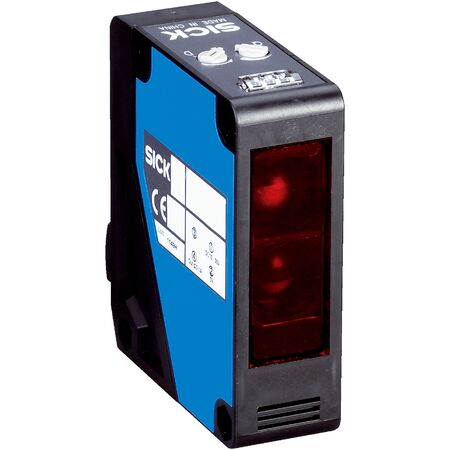

Photoelectric Proximity Sensor WTE280-2P4331 | 10 mm to 1500 mm Sensing Range | IP66 & IP67 Rated | by SICK
The WTE280-2P4331 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range from 10 mm to 1500 mm and a high switching frequency of 1000 Hz. With robust IP66 and IP67 ratings, this sensor is perfect for object detection and safety monitoring in manufacturing processes, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor (energetic)
- Sensing range: 10 mm to 1500 mm
- Type of light: Visible red light
- Light source: LED
- Light spot size at 1500 mm: Ø 45 mm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Cable gland
- Circuit protection: Types A, B, C, D
- Protection class: III
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67
- Ambient operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 75mm x 63mm x 24mm
- Weight: 0.15 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Rectangular housing design with visible red light emission
- Adjustable sensing range from 10 mm to 1500 mm via potentiometer
- High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
- Robust plastic ABS housing with IP66 and IP67 enclosure rating
- Selectable light/dark switching mode with PNP output
- Supplied with mounting bracket BEF-W280
- Wide ambient operating temperature range from -25 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTE280-2P4331 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
