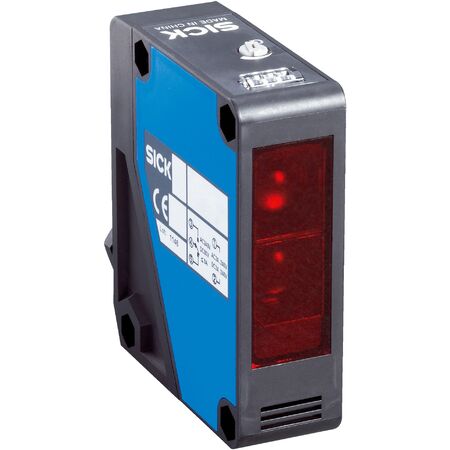

Photoelectric Proximity Sensor WTE280-2R4331 | IP66 & IP67 Rated | 10mm to 2000mm Sensing Range | by SICK
The WTE280-2R4331 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 10 mm to 2000 mm and a visible red LED light source. With a robust IP66 and IP67 enclosure rating, this sensor ensures reliable performance in harsh environments, making it ideal for safety monitoring and object detection in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor (energetic)
- Sensing range: 10 mm to 1500 mm (max 2000 mm)
- Light source: Visible red LED
- Light spot size at 1500 mm: Ø 45 mm
- Supply voltage: 24 V DC/AC to 240 V DC/AC
- Power consumption: ≤ 5 VA
- Switching output: Electrically isolated relay with change-over contacts
- Switching current: 3 A at 240 V AC, 3 A at 30 V DC
- Response time: ≤ 15 ms
- Switching frequency: 33 Hz
- Connection type: Cable gland
- Circuit protection: A and C types
- Protection class: II
- Overvoltage category: 3
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Enclosure rating: IP66, IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- EMC compliance: EN 60947-5-2, EN 61000-6-3
- Usage category: AC-15, DC-13 according to EN 60947-1
- Dimensions (H x L x W): 75mm x 63mm x 24mm
- Weight: 0.15 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light LED source
- Adjustable sensing range via potentiometer
- Rectangular housing design with light emission
- High switching frequency of 33 Hz
- Electrically isolated relay output with change-over contacts
- Protection class II with IP66 and IP67 enclosure rating
- Wide supply voltage range from 24 V DC/AC to 240 V DC/AC
- Robust plastic ABS housing and PMMA optics
- Mounting bracket BEF-W280 included
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of ≤ 5 VA reduces energy usage
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTE280-2R4331 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
