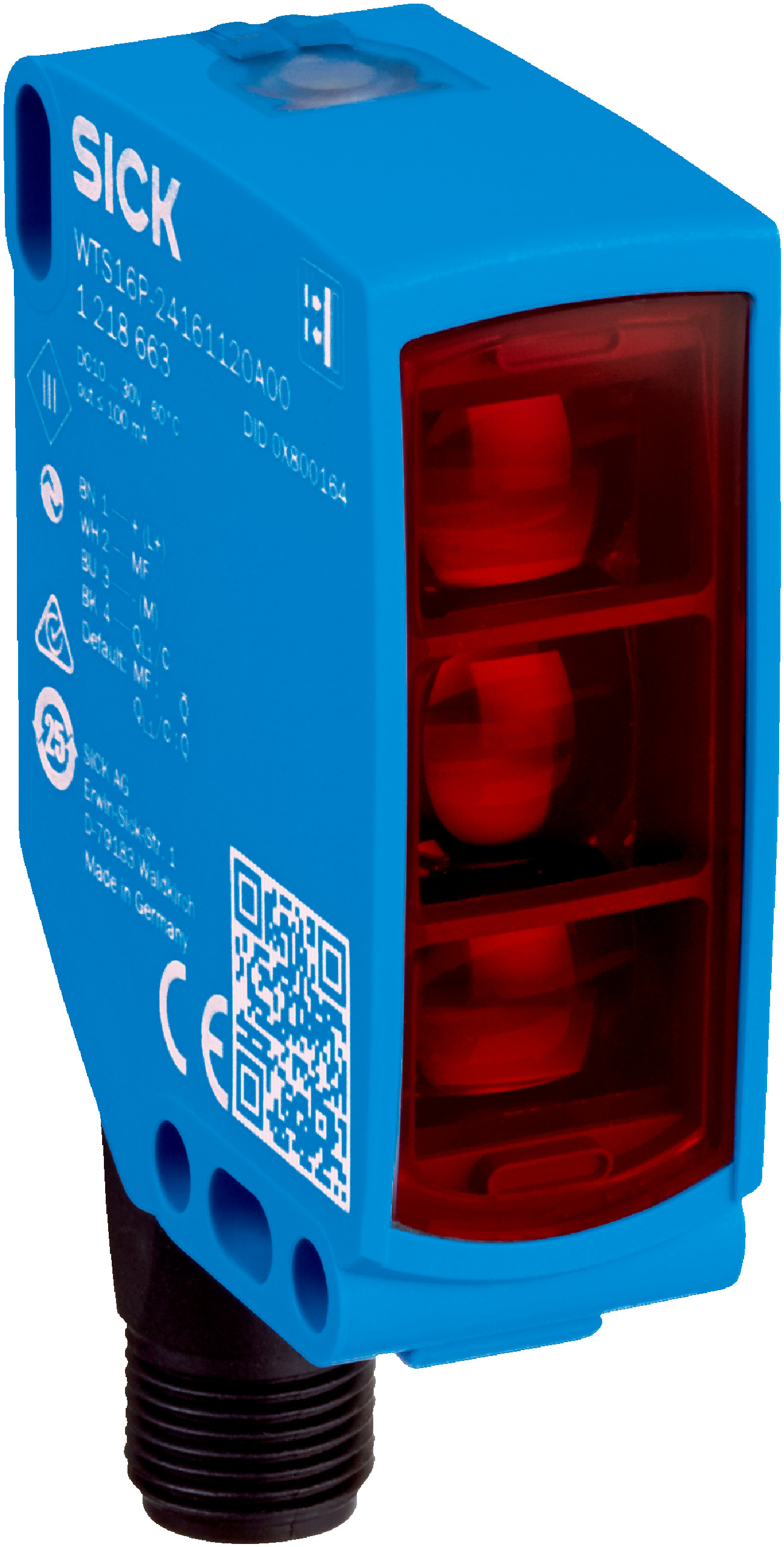

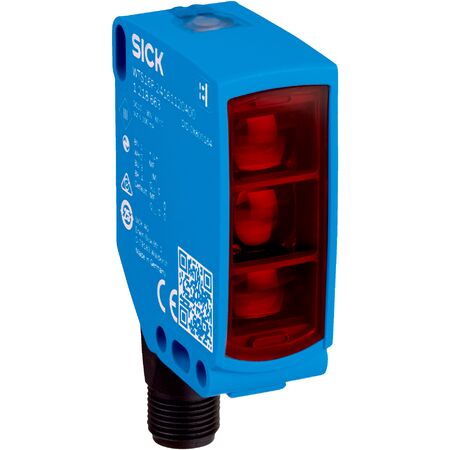

Photoelectric Proximity Sensor WTS16P-24161300CZZ | Adjustable Sensing Range | IP66/IP67/IP69 Rated | by SICK
The WTS16P-24161300CZZ Photoelectric Proximity Sensor is designed for precise object detection in industrial automation. With an adjustable sensing range from 100 mm to 750 mm and a robust IP66/IP67/IP69 enclosure, it excels in harsh environments. Featuring TwinEye technology and a visible red PinPoint LED light source, this sensor ensures reliable performance even with shiny or uneven surfaces.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range: 50 mm to 750 mm, adjustable switching threshold 100 mm to 750 mm
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- Light spot size: Ø 8 mm at 300 mm distance
- Response time: ≤ 0.1 s
- Switching frequency: 10 Hz
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA at 24 V
- Digital outputs: 2 complementary push-pull (PNP/NPN), max output current 100 mA
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40°C to +60°C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 2000 Hz
- Communication: IO-Link V1.1, COM2 (38.4 kBaud), cycle time 2.3 ms
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- TwinEye technology and MultiPulse for enhanced detection
- Adjustable sensing range from 100 mm to 750 mm
- Visible red PinPoint LED light source with 635 nm wavelength
- High LED service life of 100,000 hours at 25°C
- IO-Link interface for sensor parameter configuration and Smart Task functions
- Dual complementary push-pull digital outputs (PNP/NPN)
- Robust plastic VISTAL® housing with IP66, IP67, and IP69 ratings
- Wide ambient operating temperature range from -40°C to +60°C
- Shock resistance up to 50 g and vibration resistance from 10 Hz to 2000 Hz
- Self-monitoring MultiPulse sensor with factory set sensing range of 205 mm
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper configuration and secure mounting with M12 connector.
Applications
- Industrial automation for object detection
- Detecting uneven, shiny objects
- Detecting objects wrapped in film
- Use in harsh environments requiring IP66 to IP69 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient operation with low current consumption
- Robust design minimizes environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WTS16P-24161300CZZ Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
