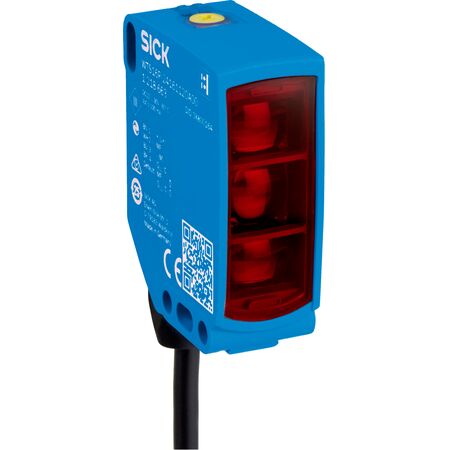

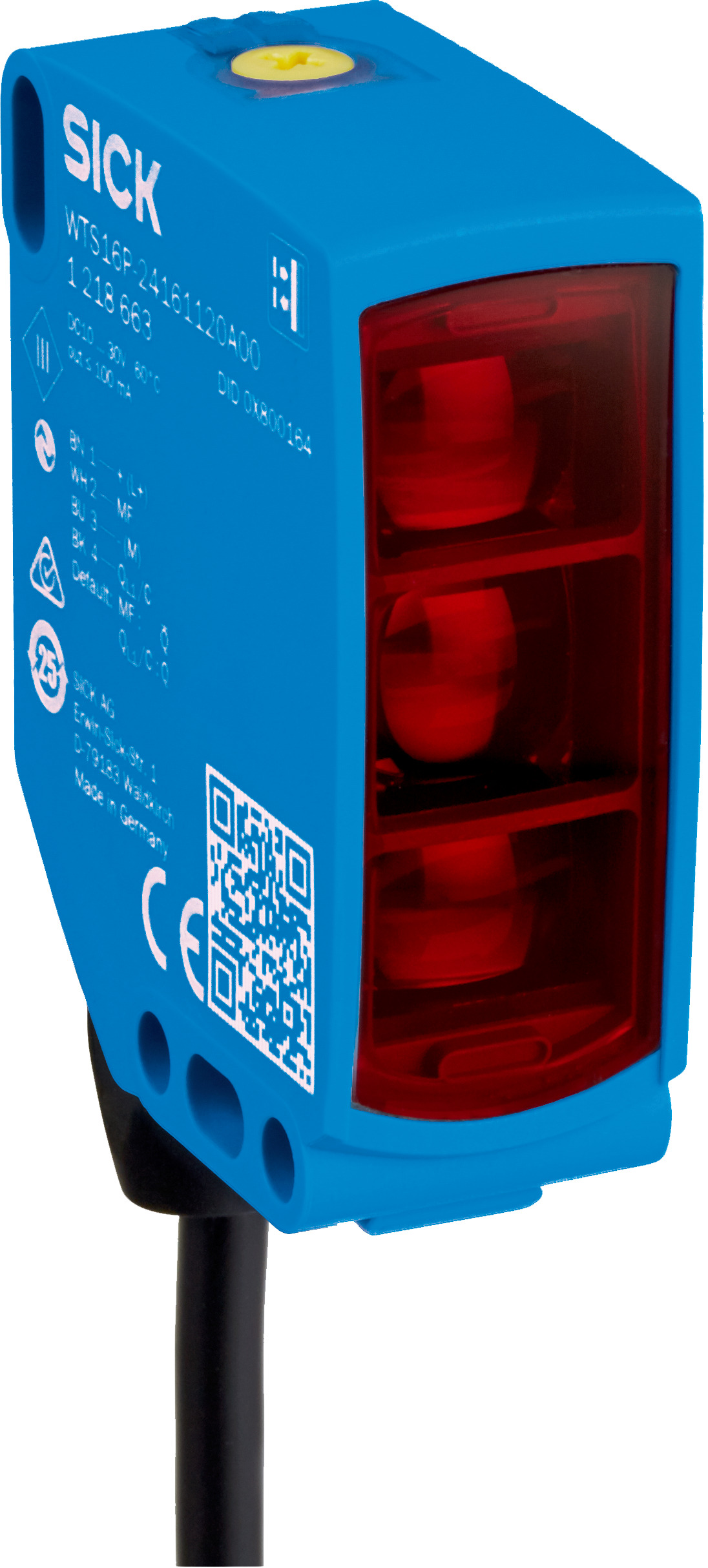

Photoelectric Proximity Sensor WTS16P-6H161120A00 | Adjustable Sensing Range 10-750mm | IP66/IP67/IP69 Rated | by SICK
The WTS16P-6H161120A00 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation. With an adjustable sensing range from 10 mm to 750 mm and a robust IP66/IP67/IP69 protection rating, it excels in harsh environments. Featuring TwinEye technology and a PinPoint LED light source, this sensor ensures reliable performance and long service life, making it ideal for detecting shiny or uneven objects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range: 10 mm to 750 mm, adjustable switching threshold 100 mm to 750 mm
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- Response time: ≤ 1.4 ms, switching frequency up to 350 Hz
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Supply voltage: 10 V DC to 30 V DC, ripple ≤ 5 V pp
- Protection rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Cable: 4-wire, 5 m length, PVC
- Housing material: Plastic VISTAL®, front screen PMMA
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.2 kg
Key Features
- Photoelectric proximity sensor with background suppression using TwinEye technology
- Adjustable sensing range from 10 mm to 750 mm with recommended range 100 mm to 300 mm
- PinPoint LED visible red light with 635 nm wavelength and 100,000 hours average service life
- BluePilot Teach-Turn adjustment for easy sensing range setting
- IO-Link interface for sensor parameter configuration and Smart Task functions
- Dual complementary push-pull digital outputs with light/dark switching
- High protection class III with IP66, IP67, and IP69 ratings
- Robust plastic VISTAL® housing with PMMA front screen and PVC cable
- Wide ambient operating temperature range from -40 °C to +60 °C
- Shock resistance up to 50 g and vibration resistance from 10 Hz to 2000 Hz
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper configuration and compliance with safety standards.
Applications
- Industrial automation for object detection
- Detection of uneven, shiny objects
- Detection of objects wrapped in film
- Use in harsh environments requiring IP66 to IP69 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient operation with low current consumption
- Robust design minimizes environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WTS16P-6H161120A00 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
