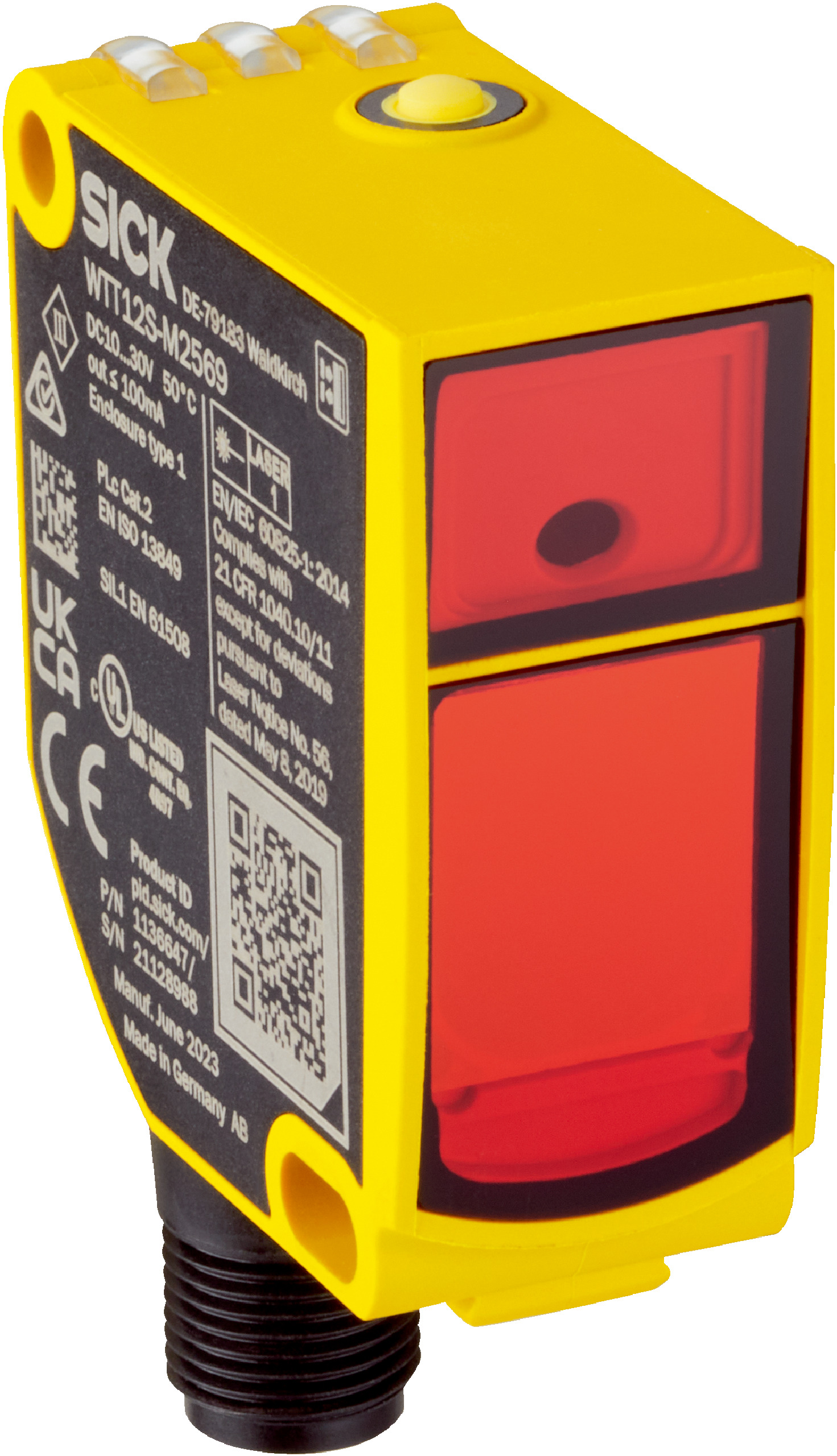

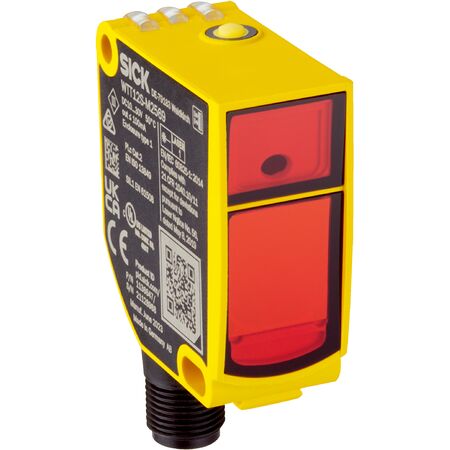

Photoelectric Proximity Sensor WTT12S-C2569 | IP67 Rated | 150mm to 2000mm Detection Zone | Laser Class 1 | by SICK
The WTT12S-C2569 Photoelectric Proximity Sensor is designed for industrial automation, featuring a detection zone from 150 mm to 2,000 mm with a visible red laser light. With an IP67 enclosure rating and robust design, it ensures reliable performance in harsh environments, making it ideal for safety-related detection in manufacturing processes and conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor
- Detection zone: 150 mm to 2,000 mm with 6% remission or higher
- Light source: Visible red laser, wavelength 658 nm
- Maximum pulse power: < 250 mW
- Pulse duration: 0.004 µs
- Laser class: 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11)
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 25 mA
- Switching output: Push-pull PNP/NPN, modulated 10 Hz ± 2% square wave
- Response time: 5 ms digital output to object, 10 ms to test input
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -35 °C to +50 °C
- Shock resistance: 30 g and 25 g per EN60068-2-27
- Vibration resistance: 20 Hz to 2,000 Hz per EN60068-2-6 and EN60068-2-64
- Connection type: Plug, M12, 5-pin
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Dimensions (H x L x W): 49.6mm x 44.2mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with visible red laser light
- Rectangular housing design with IP67 enclosure rating
- Safety-related detection zone from 150 mm to 2,000 mm
- Laser class 1 compliant with IEC 60825-1 standards
- Single teach-in button for easy adjustment
- High safety integrity level SIL 1 and performance level PL c
- Push-pull PNP/NPN switching output with modulated 10 Hz square wave
- Robust against shock and vibration with high resistance ratings
- Operating temperature range from -35 °C to +50 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with photoelectric sensor systems and safety standards.
Applications
- Industrial automation for object detection
- Safety-related detection in manufacturing processes
- Presence detection in conveyor systems
- Quality control and positioning tasks
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Durable IP67 rated housing reduces waste by extending product life
- Robust design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTT12S-C2569 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety detection applications.
