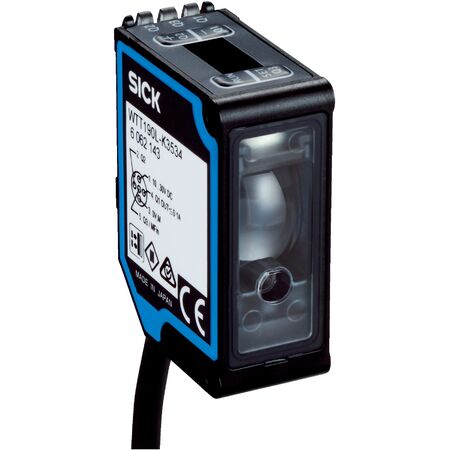

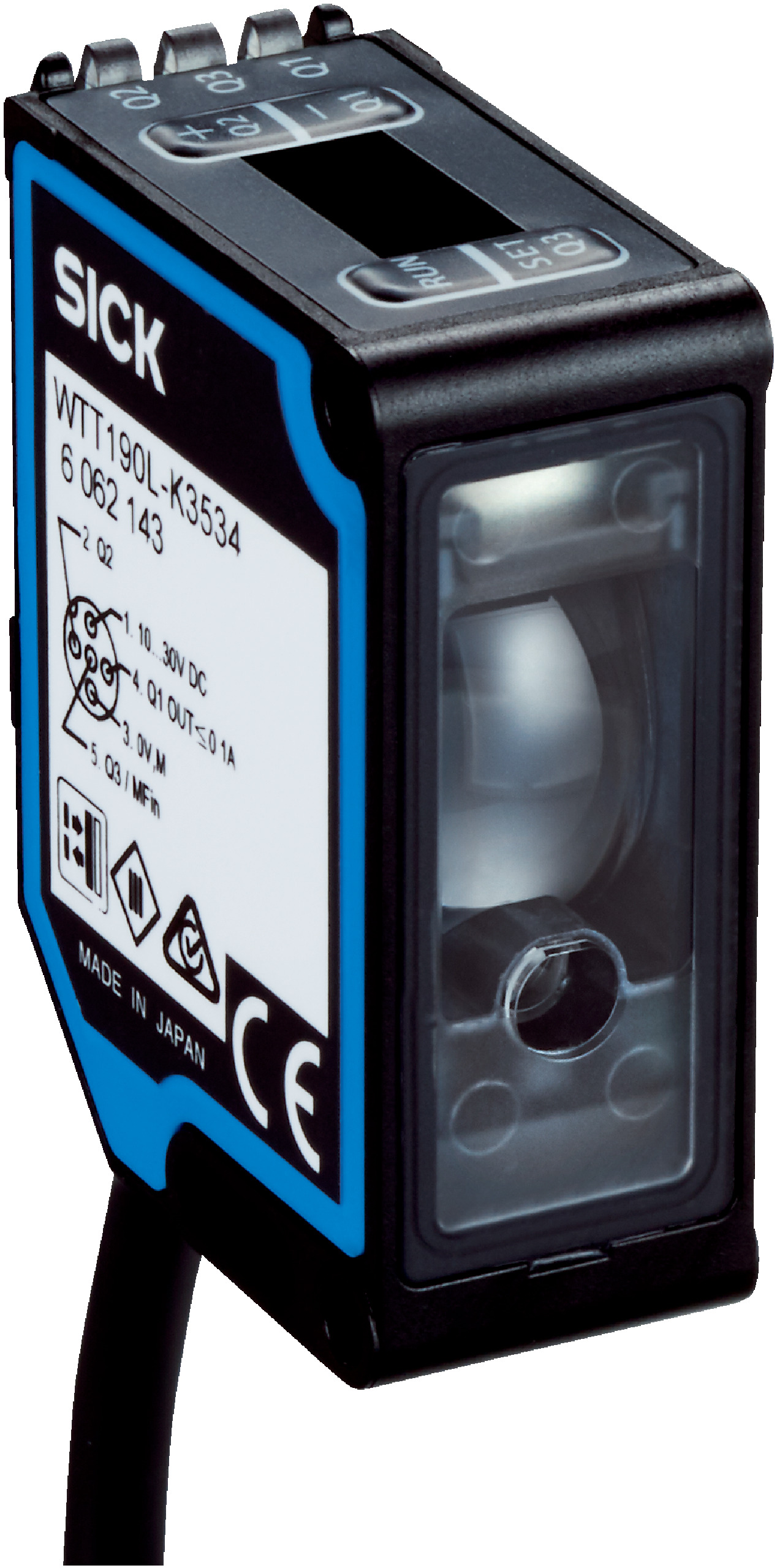

Photoelectric Proximity Sensor WTT190L-A3532 | 200mm to 3000mm Sensing Range | IP67 Rated | by SICK
The WTT190L-A3532 Photoelectric Proximity Sensor is designed for precise distance measurement and object detection in industrial automation. With a sensing range of 200 mm to 3000 mm and a resolution of 2 mm, it ensures accurate performance. Its IP67 rated enclosure provides dust and water protection, making it ideal for manufacturing process control, robotics, and safety monitoring systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression and optical time-of-flight
- Sensing range: 200 mm to 3000 mm
- Resolution: 2 mm
- Repeatability: 5 mm to 80 mm
- Accuracy: Typical ±30 mm to ±50 mm
- Light source: Visible red laser, wavelength 658 nm
- Laser class: 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11)
- Supply voltage: 12 V DC to 30 V DC
- Current consumption: 75 mA
- Switching output: PNP or NPN, max 100 mA
- Switching mode: Light/dark switching, selectable via menu
- Response time options: 0.6 ms to 51.4 ms
- Switching frequency: Up to 833 Hz
- Time functions: Off delay, switch-on delay, one shot, programmable delay 0 ms to 999 ms
- Analog output: 4 mA to 20 mA or 0 V to 10 V, switchable
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -30 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Connection: Cable with M12 5-pin plug, 0.3 m length
- Dimensions (H x L x W): 45.6mm x 34.7mm x 17.4mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight principle
- Rectangular housing design with visible red laser light source
- Sensing range from 200 mm to 3000 mm with 2 mm resolution
- Repeatability between 5 mm and 80 mm
- Typical accuracy ±30 mm to ±50 mm
- Laser class 1 compliant with IEC 60825-1 standards
- Single teach-in button and display for easy adjustment
- IP67 rated enclosure for dust and water protection
- Supply voltage range 12 V DC to 30 V DC with low ripple
- Selectable PNP or NPN switching output with light/dark switching mode
- Programmable delay times and multiple time functions
- Analog output options: 4 mA to 20 mA or 0 V to 10 V switchable
- Cable with M12 5-pin plug connection
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring, alignment, and compliance with safety standards.
Applications
- Industrial automation for object detection and distance measurement
- Manufacturing process control
- Robotics and material handling
- Safety and monitoring systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient laser technology
- Durable IP67 rated housing reduces waste by extending product life
- Non-contact sensing reduces mechanical wear and maintenance
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTT190L-A3532 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise distance measurement applications.
