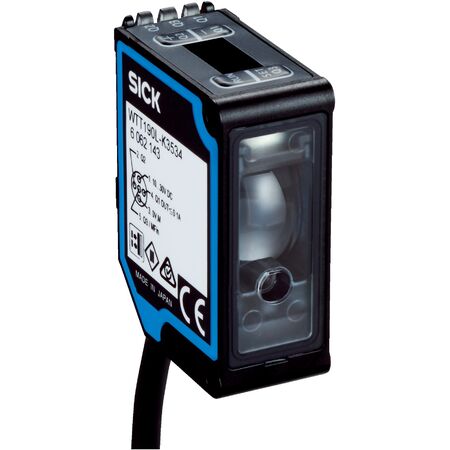

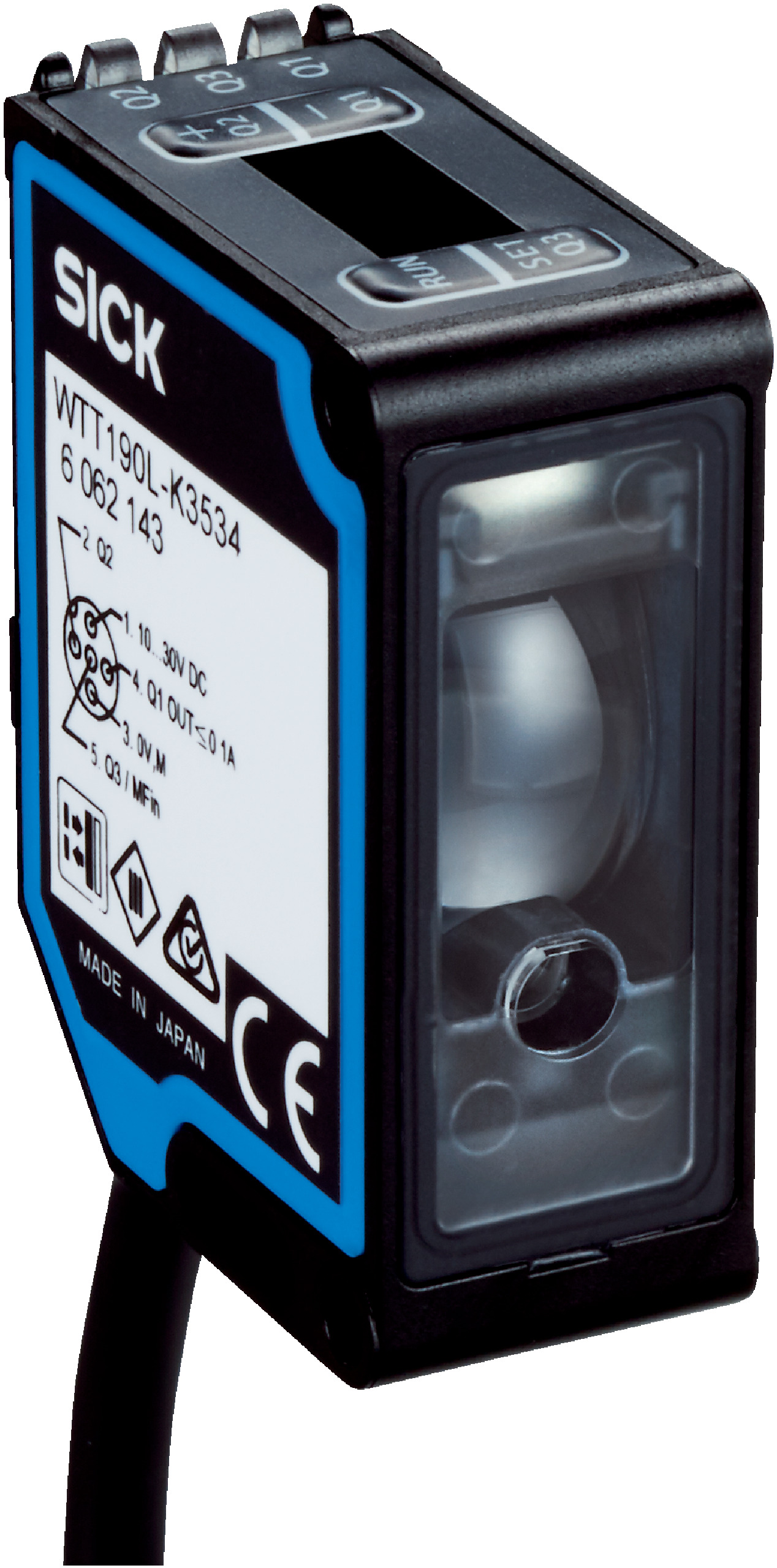

Photoelectric Proximity Sensor WTT190L-K1534 | 200mm to 3000mm Sensing Range | IP67 Rated | by SICK
The WTT190L-K1534 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 200 mm to 3000 mm and a visible red laser light source. With an IP67 rated enclosure for dust and water protection, this sensor is perfect for material handling, safety detection, and robotics applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 200 mm to 3000 mm
- Light source: Visible red laser, wavelength 658 nm
- Laser class: 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11)
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 75 mA
- Switching outputs: 3 (PNP, NPN), max output current ≤ 100 mA
- Switching modes: Light/dark switching selectable via menu
- Response time options: 0.6 ms to 51.4 ms
- Switching frequency: up to 833 Hz
- Time functions: Off delay, switch-on delay, one shot, programmable delay 0 ms to 999 ms
- Protection class: III
- Enclosure rating: IP67
- Warm-up time: < 5 minutes
- Initialization time: < 300 ms
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Connection type: 5-wire cable, 2 m length, PVC
- Dimensions (H x L x W): 45.6mm x 34.7mm x 17.4mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Rectangular housing design with visible red laser light source
- Sensing range from 200 mm to 3000 mm
- Laser class 1 compliant with IEC 60825-1 standards
- Single teach-in button with display for easy adjustment
- IP67 rated enclosure for dust and water protection
- Multiple switching outputs (PNP, NPN) with selectable switching modes
- Programmable delay times and time functions
- Cable connection with 5-wire, 2 m PVC cable
- Operating temperature range from -30 °C to +50 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Safety and presence detection in manufacturing
- Robotics and process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP67 housing minimizes environmental impact by extending product lifespan
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WTT190L-K1534 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
