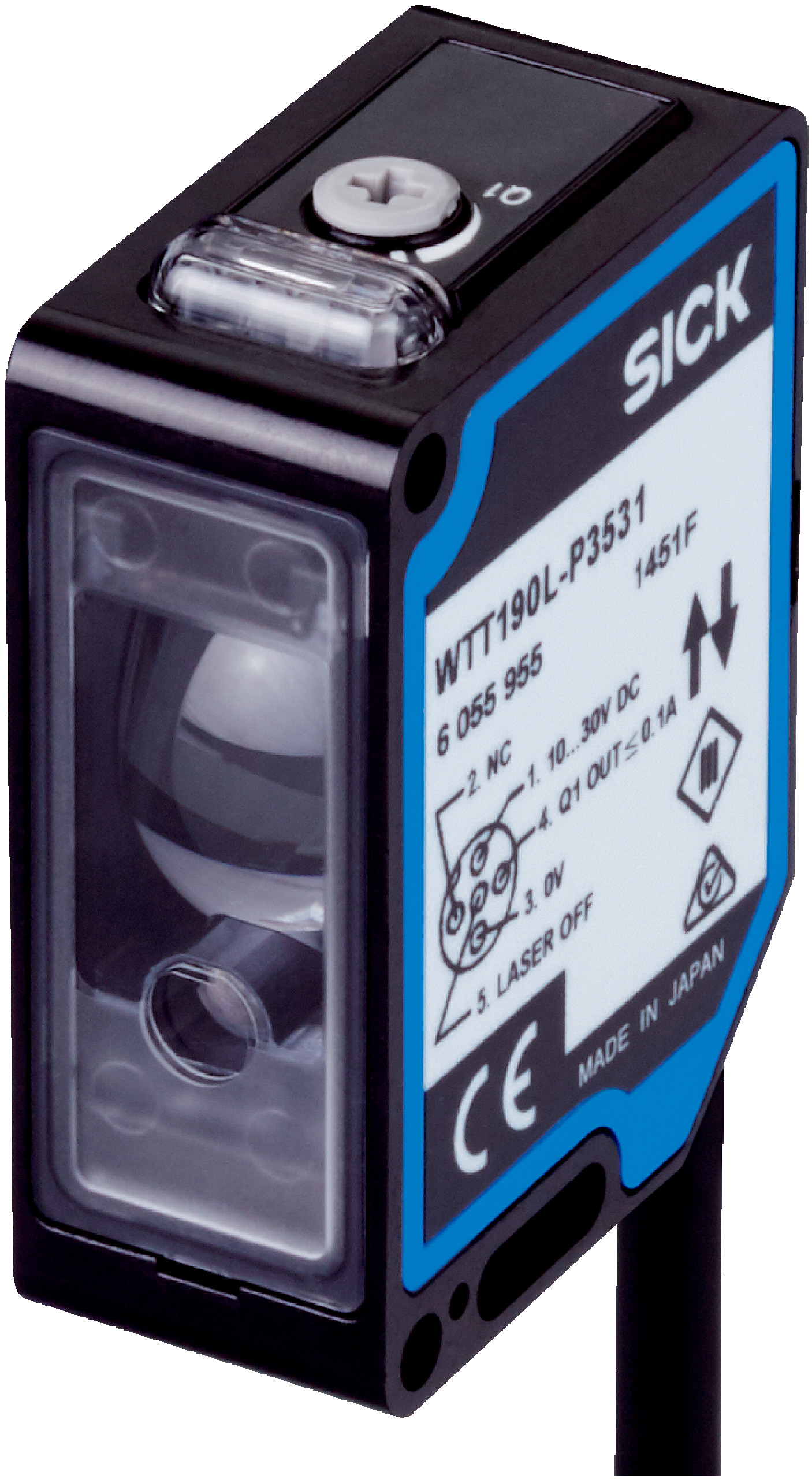

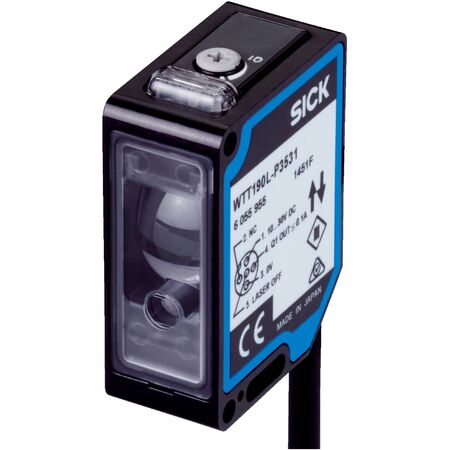

Photoelectric Proximity Sensor WTT190L-N3531 | Background Suppression | IP67 Rated | Fast Response Time | by SICK
The WTT190L-N3531 Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and a fast response time of ≤ 0.5 ms. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for material handling, packaging machinery, and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 75 mA
- Switching output: NPN, 1 output
- Switching mode: Light/dark selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Laser wavelength: 658 nm
- Light spot size at 2,500 mm: Ø 10 mm
- Protection class: III
- Enclosure rating: IP67
- Warm-up time: < 5 minutes
- Initialization time: < 300 ms
- Connection: Cable with M12, 5-pin plug, 0.3 m length
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Dimensions (H x L x W): 47mm x 34mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression using optical time-of-flight technology
- Rectangular housing design with visible red laser light source
- Sensing range from 200 mm up to 2,500 mm
- Laser class 1 compliant with IEC 60825-1 standards
- Adjustable potentiometer with 4 turns for sensitivity tuning
- IP67 rated enclosure for dust and water protection
- Fast response time of ≤ 0.5 ms and switching frequency up to 1,000 Hz
- Single NPN switching output with selectable light/dark switching mode
- Supplied with BEF-W190 mounting bracket
- Operating temperature range from -10 °C to +50 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor setup and electrical safety standards.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Packaging machinery
- Robotics and safety monitoring
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP67 housing minimizes environmental impact by extending product lifespan
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WTT190L-N3531 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
