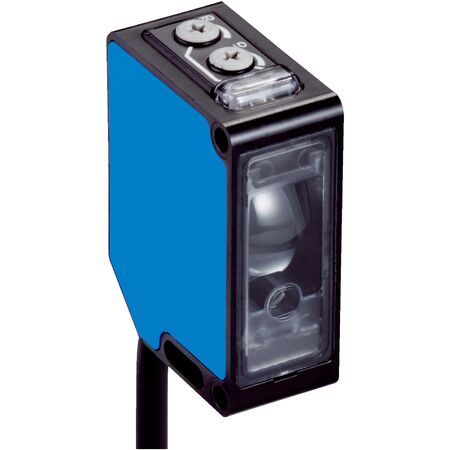

Photoelectric Proximity Sensor WTT190L-P1536 | Background Suppression | 200mm to 2500mm Sensing Range | IP67 Rated | by SICK
The WTT190L-P1536 Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and an impressive sensing range of 200 mm to 2,500 mm. With a visible red laser light source and IP67 rating, it ensures reliable performance in various applications, including material handling and safety detection. Ideal for professionals seeking precision and durability in their automation systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 200 mm to 2,500 mm
- Light source: Visible red laser, wavelength 658 nm
- Laser class: 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11)
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 75 mA
- Switching output: Dual PNP outputs, max 100 mA each
- Switching mode: Light/dark selectable
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -10 °C to +50 °C
- Housing material: Plastic ABS, Optics material: Plastic PMMA
- Connection: 5-wire cable, 2 m length, PVC insulation
- Dimensions (H x L x W): 47mm x 34mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Rectangular housing design with visible red laser light source
- Sensing range from 200 mm to 2,500 mm
- Laser class 1 compliant with IEC 60825-1 standards
- Adjustable potentiometer with 4 turns for sensitivity tuning
- Dual PNP switching outputs with selectable light/dark switching mode
- High switching frequency of 1,000 Hz and fast response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Supplied with BEF-W190 mounting bracket
- Operating temperature range from -10 °C to +50 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and laser safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Safety and presence detection in manufacturing
- Robotics and process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP67 housing extends product life and reduces waste
- Non-contact sensing reduces mechanical wear and maintenance
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WTT190L-P1536 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
